GHOST WALL Concealed Internal Sliding Door System

Bring minimalist elegance to any interior with the GHOST WALL Concealed Sliding Door System. This innovative mechanism is fully integrated into the door, ensuring a clean, seamless look whether the door is open or closed.

GHOST WALL offers the flexibility of wall-mounted or floor-mounted installation, making it ideal for spaces with restricted headroom or modern interiors where design matters as much as functionality. Each kit includes all the components you need — just pair it with a door of your choice to complete your installation.

Why Choose GHOST WALL:

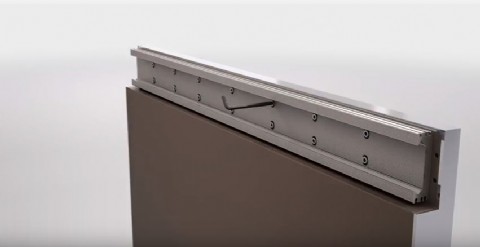

• Invisible Mechanism: Fully concealed sliding system for a sleek, modern aesthetic.
• Flexible Installation: Wall-mounted or floor-mounted options to suit any space.
• High-End Design: Italian-engineered by Atim for smooth operation and premium finish.
• Supports Variety of Doors: Height and material are flexible, as long as the aluminium profile is securely attached.
• Optional Wheel Kit for Heavier Doors: Easily accommodate doors over 50kg with floor-adjustable wheels.

Technical Details (door not included):

• Minimum door thickness: 40mm
• Maximum weight capacity: 50kg (use wheel kit for heavier doors)
• Recommended door widths:
  • 880mm slide - 914mm door width
  • 980mm slide - 1014mm door width
  • 1080mm slide - 1114mm door width

For spaces with limited headroom, the GHOST FLOOR system is an excellent alternative, allowing the sliding runner to be installed on the floor while maintaining the same show-stopping concealed effect.

Perfect for modern homes, boutique offices, and high-end renovations, GHOST WALL turns ordinary doors into crowd-pleasing design statements that blend seamlessly into your interiors.

   Why not submit your own review?

Submitted by David Hutchison (27/02/2022)
I installed the Ghost door for an application designed specifically for it, so I am grateful that the product exists. I found the installation instructions sparce; there was lots of daa about the hole spacing for the components that needed to be screwed to the wall and door, but most of the informaiton was not necessary. It would have been more hopeful to have better diatgrams of the installation than of the parts. While the installation went well, I feel that the finished installation with the weight of the door on it could have been more smooth, but it is indeed a unique product with a good application. I would buy it again, knowing that I need to build a custom door and that the fee for the base product is high.

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	4.3 / 5

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: Hi. I'm in Australia and want to install 2 ghost sliding doors. I understand the door width. But when I purchase the doors, what depth does the door have to be? And is it best to use a solid or lighter door. Also is it easy to install ? Thank you Helen

A: Hi Helen, Thanks for the FAQ. The door needs to be a minimum of 40mm in thickness , no maximum offically listed but i suppose going to thick might be too heavy / awkward to work with. With regards to the material I think it’s better to have a lighter door (under 50kgs in weight) as this allows the door to "float" above the floor with no support underneath. Heavier doors can be used but for this you need floor adjustable wheels for the underside (which are sold separatley on request). As with all of our products like this we reccomend they are installed by a professional tradesperson. The box will include full installation instructions and the video on the website shows an overview of the process which should help the person installing. I hope that helps. Let us know if you have any other questions. Many thanks, Christian @ BOX15

Q: Hi, I am writing in again as i have not received any response for my last query. What is the best size to get if my door opening width is 720mm? Thanks, Emily

A: Hi Emily, I proposed your question to the technical team at the factory: "Regarding your question, the indicated dimension is the suggested one. Your customer can use a 720 mm door opening (A) and a longer door. What is limited is the stroke of the slide that remains 700 mm and a 76 mm dimension that becomes 96. A possibility is to buy the longher one (for an 800 mm door opening) and have your customer cut the Profile at the desired length…" and then they reccomend checking the fitting instruction PDF (technical data tab of product page) and showing that to whoever is installing / supplying the door. I hope that helps. Christian @ BOX15

Q: Hi, Is there a requirement for a particular wall construction to support the 50kg door load?

A: There are no special wall modification to be done with the 50 kg Door. The only thing to note is for the 50 Kg door, it must be a structural wall. The accessories we include in the standard package are designed for a brick or concrete wall. The system cannot be applied to drywall or similar materials without specific reinforcements. We've added a pdf of the wheel system to the Technical Data tab on the product page, if required.

Q: Re: ghost sliding door system I see technical data sheet oage 3 diagram. Info missing that i need is how from wall this mechanism protrudes. So, what is depth of the upper roller mechanism thats mounted to wall? My door will slide between a concrete slab amd wall so i need to know for clearance/construction.

A: The reason for not having this information detailed on the instruction sheet is that it is completely up to the individual customer, on how you want to mill or machine the door. Obviously the clearance between door and wall depends on the door thickness and how much you want to mill the door to accommodate the aluminium profile. The factory have prepared an illustration which has just been added to the Technical Data tab, to show a typical scenario where the door thickness is 55mm, with a clearance of 11.6 mm. As you'll hopefully see from the illustration, 48.1 is the nominal dimension of our system. You'll find watching the video we've loaded onto the site will help explain better, in conjunction with this extra info!

Q: Hi, For your ghost sliding door system, is there a soft close feature?

A: Hello Richard, This is our response from the technical department at the factory: The Ghost has just a couple of dumpers that allows to slow down the door movement when it arrives at the limit of its movement. It is not a complete soft closure system because you have to push the door till the end of the movement. In practice the inertia of the door make it work like a soft closure system. I hope that helps answer your question. Kind Regards, Christian.

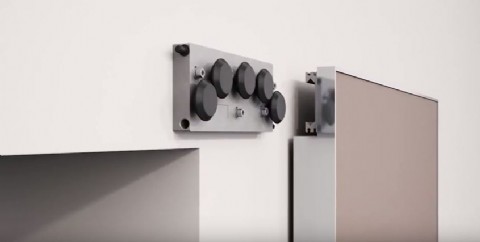

Q: Why does the plate have 5 wheels of which 3 middle ones are offset in the vertical direction? What advantage does it have compared to using all 5 in-line?

A: Hello. It is a design choice that adds stability to the system. Kind regards, BOX15

Q: Hi. Is there enough space for skirting boards behind the sliding door?

A: Hello. Please see under the 'Technical Data' tab - there is a clearance of 11.6mm and so anything over that would not be suitable. I hope this assists. Kind regards, BOX15

Q: Is there a limit to the weight of the door with the floor guide?

A: Hello. The wheel kit is used when the door exceeds 50kg in weight. Regarding the load capacity of the wheel kit, the factory have advised: “It depends mainly on the floor material. In our experience with wheels, a weight of 80kg is acceptable”. I hope this assists. Kind regards, BOX15

Q: Can the ghost doors in what looks like wood be fitted to the wall at the bottom instead of the floor

A: Hello. The standard 'GHOST' is not designed to be fitted in this way, however the 'GHOST FLOOR' is, and so please see the following link: https://www.box15.co.uk/products/5914/ghost-floor-concealed-internal-sliding-door-system?catid=67 - I hope this assists. Kind regards, BOX15

Q: I have a door opening of 800mm. I am like oking to fit a door 900mm or possibly 1000mm wide. What size of ghost concealed slider should I buy?

A: Hello. Our options are designed specifically for openings of 700mm, 800mm or 900mm. For full dimensions (inc. door widths), please see the technical data tab. We recommend showing this information to your fitter / joiner who will be able to advise on suitability for your particular set up. Kind regards, BOX15

Q: Hi, Can I have longer guida slide for bigger door opening. my opening is 1.3 m. is it possible?

A: Hello. We do not have an option to accommodate as standard I'm afraid, the only option would be to have 2 GHOST systems either side of the opening and then have the doors meet in the middle. I hope this assists - BOX15

Q: What is the maximum door height for this mechanism?

A: Hello. There is no maximum height for the door. The dimensions listed for the door in the ‘Technical Data’ tab are indicated for a standard configuration, but they are not critical. Subsequently, your fitter will be able to recommend a suitable door height for your application. Kind regards, BOX15

Q: Hi, can the sliding door mechanism be installed above skirting or do you've alternative one? Thanks

A: Hello. It will depend on the depth of the skirting as there is a small amount of leeway but not much. Please see the 'Installation Instructions' under the 'Technical Data' tab for full dimensions/fitting instructions – we always recommend showing these to your fitter who will be able to advise on suitability for your set up. Kind regards, BOX15

Q: Will this concealed internal sliding door system with where we have a ceiling track hoist system installed. i've looked at the video and installation information and it looks like it does, but i need confirmation. The door would need to open wide enough so the person being hoisted can pass through. any info you can provide will be really helpful.

A: The openings are all listed on the product page on our website, so for instance the longest kit will give you a nett opening of 822mm according to the 'Dimensions' file, found within the Technical Data tab. There is only 1 mounting above the door, which is a Metal Wall Plate that fixes above the door opening and this is only 225mm Long x 90mm High and then the rest will depend on variable out of our control, such as thickness of the door you choose to use but there is an example to be found within the Techical Data tab, of how far the system would protrude if the door was 55mm thick - just to give you an idea!

• Installation Instructions

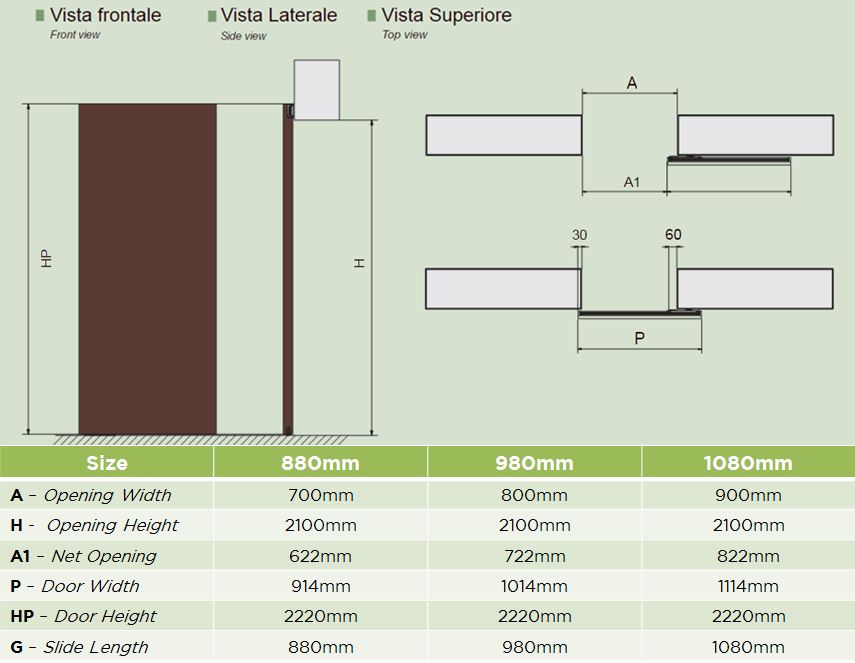

• Dimensions
• Wheel System, if needed
• Example if Door Thickness 55mm, clearance 11.6mm
