ZOOM Internal Sliding Door System | Sleek Telescopic Concealed Doors

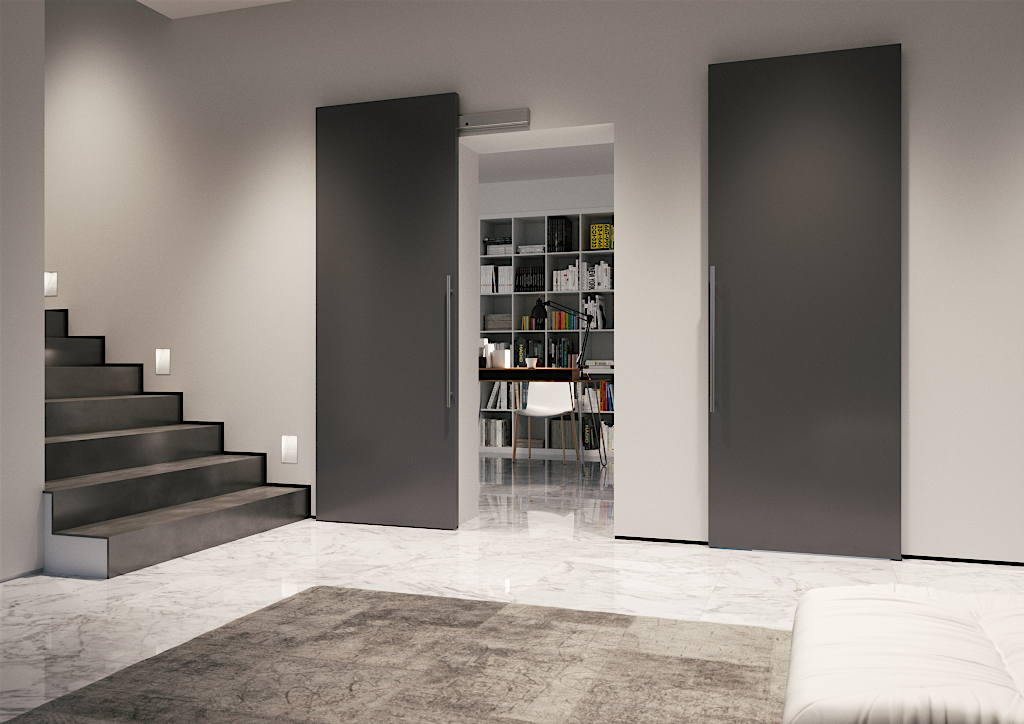

Maximise both style and space with the ZOOM Internal Sliding Door System. This innovative telescopic sliding mechanism remains completely hidden when the door is closed, creating a sleek, minimalist look. When open, it reveals an attractively finished aluminium profile, occupying only half the width of the door, allowing for maximum opening with minimal wall overlap.

Ideal for modern homes, boutique apartments, or stylish offices, ZOOM combines practical space-saving design with a high-end, show-stopping aesthetic. Each kit includes all components needed for installation — simply pair it with a door of your choice.

Why Choose ZOOM:

• Telescopic Sliding Mechanism: Fully concealed when closed, minimal profile when open
• Space-Saving Design: Full door opening with minimal wall overlap
• Premium Italian Engineering: Designed by Atim for smooth, silent operation
• Flexible Installation: Compatible with a variety of door styles and materials
• Show-Stopping Feature: Perfect for modern interiors, boutique renovations, and luxury Airbnbs

Technical Details (door not included):

• Minimum door thickness: 35mm
• Maximum weight capacity: 60kg

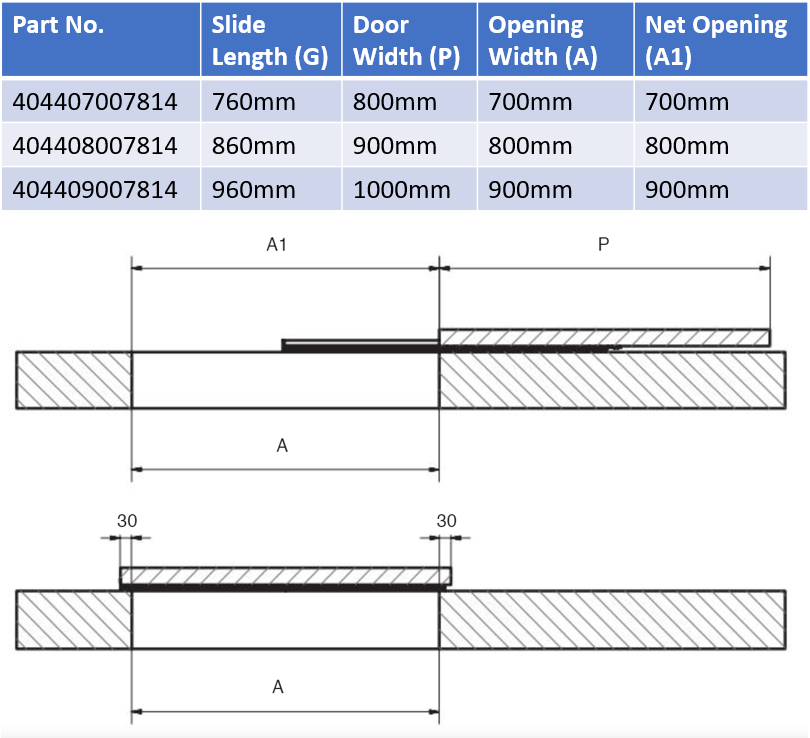

• Recommended door widths:
  • 700mm opening - 800mm door width
  • 800mm opening - 900mm door width
  • 900mm opening - 1000mm door width

Bring a modern, minimalist edge to your interiors with ZOOM — where invisible technology meets high-end design, turning your sliding doors into functional, crowd-pleasing features.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

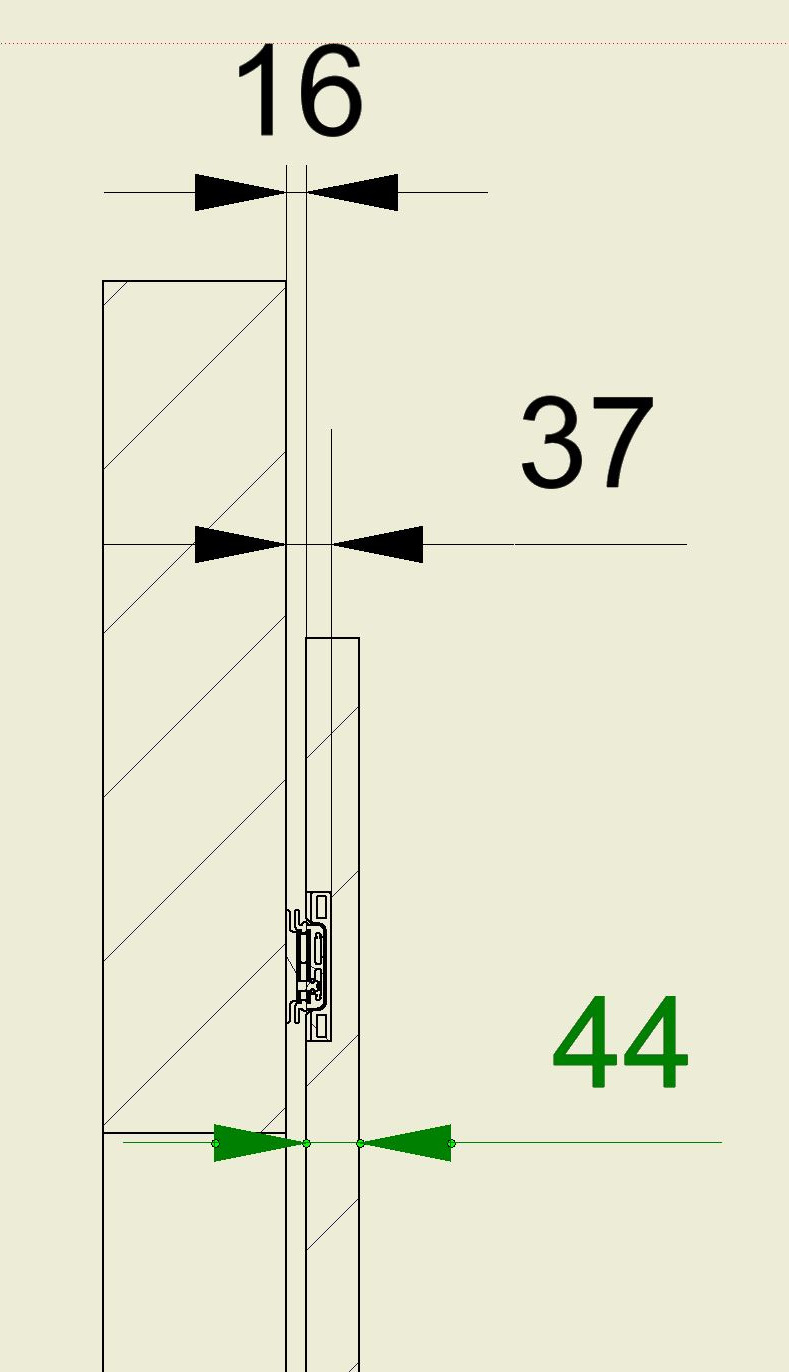

Q: Hi can you tell me how far out from the wall this system sticks out when a 35mm door is fitted

A: Hello. Please see the Technical data tab where we've now added some example 'projection and clearance' drawings, based on example thickness doors', to assist. Please note that the only fixed dimension is 37mm. We always recommend that these mechanisms are installed by a professional fitter. Kind regards, BOX15

• Installation Instructions
• Dimensions
• Example Projection & Clearance
