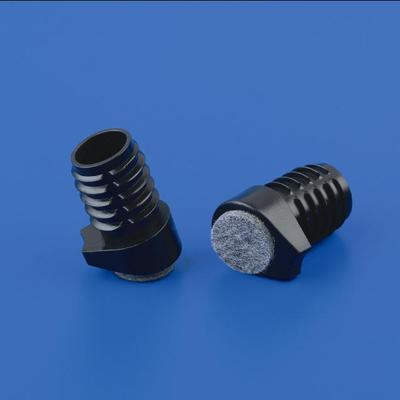

25mm Ø 12-18° Angled Felt Insert for Stacking, 1.5-2mm

These 25mm round ribbed tube inserts are designed to push into hollow round tube and have an integral spacer feature, which is designed to keep painted chair legs apart and reduces noise when stacking chairs and furniture.  This particular insert also has an integral felt pad with an angle range of 12-18 degrees and although our tube inserts come with a a choice of angles, it's also worth considering our 'Full Dome' inserts, as the pronounced dome on these, is designed to work with any angle.

The head diameter is designed to sit flush with the outside of the tube whilst the shank has flexible horizontal ribs to suit a multitude of tube walls, in a range of both metric and imperial sizes.  Thanks to the flexible lateral ribs running around the shank of the insert, they're generally suitable for tube wall thickness of between 1.5 to 2mm metric (14-16 gauge imperial), unless otherwise indicated.

Manufactured from durable LDPE plastic, they are commonly used as protective end caps, tube feet, and finishing plugs across furniture, fabrication, and light industrial applications. They're designed to retain themselves inside tube, with the head sitting over the outer ends of the tube or pipe, sitting flush with the outside circumference of the tube and providing a neat finished appearance.

Key Features:

• Fits hollow tube or pipe with a 25mm outer / external dimension
• Manufactured from resilient LDPE with integral stacking feature
• Ribbed design for secure fitting
• Integral felt pad helps protect floors from exposed tube ends, dampening noise and preventing paint damage
• Available in multiple colours
• Designed primarily for indoor use but can be used outside but not UV stabilised as standard
• Angled head range covers 12-18° (degrees)

Technical Information:

• Tube or pipe shape: Round
• External tube size: Ø25mm
• Tube wall thickness: 1.5-2mm
• Suggested internal fit: 21 to 22mm approx. (different factors affect this, including coatings, weld lines and tolerance)
• Material: Low-Density Polyethylene (LDPE)
• Fitting type: Push-fit ribbed insert

Suitable for:

• Angled legs on office and workshop furniture
• Stacking chairs and tables
• Plastic stoppers for Round hollow tubes and pipes
• Feet for display systems
• Tube end caps for light fabrication projects
• Protective tube ends for finishing
• Ribbed knock-in inserts for POS and shopfitting

Tube inserts are always listed the same way that tube is listed because the head of the insert needs to marry up with the outside edges of the tube.  They often come in a variety of wall thicknesses and gauge sizes but if you're unsure on fit, you can click the 'Request Sample' button, or for help measuring your tube, try out this useful sizing pdf.

If this isn't quite right for your application, check out our other inserts for round tube here and if you're not looking to plug the end of a piece of hollow tube and instead after a generic hole plug, then maybe one of our covers caps or panel plugs will work better for you.
