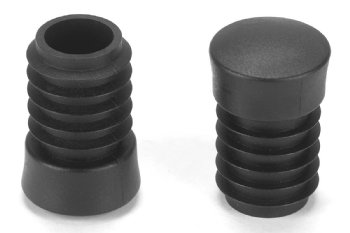

20mm Round Heavy Duty Tube Insert Foot, 1-2mm

These 20mm round ribbed tube inserts are a heavy duty design, with a much thicker head to they're perfect for feet and with the shank being extra long, they'll also have a really secure fit and be much less sucpetible to being prised out easily.  As such they're perfect for use as a foot to insert into round hollow tube on benches, tables and chairs and with the head not being flat, they'll also work with angled legs.

If it's more of an angled foot you're after, then we have full domed and angled options or we also have a range of Tiltserts which may work better for you.

The head diameter is designed to sit flush with the outside of the tube whilst the shank has flexible horizontal ribs to suit a multitude of tube walls, in a range of both metric and imperial sizes.  Thanks to the flexible lateral ribs running around the shank of the insert, they should be suitable for tube wall thickness of between 1 to 2mm metric (14-20 gauge imperial), unless otherwise stated.

Manufactured from durable LDPE plastic, they are commonly used as protective end caps, tube feet, and finishing plugs across furniture, fabrication, and light industrial applications. They're designed to retain themselves inside tube, with the head sitting over the outer ends of the tube or pipe, sitting flush with the outside circumference of the tube and providing a neat finished appearance.

Key Features:

• Fits hollow tube or pipe with a 20mm outer / external dimension
• Manufactured from resilient LDPE
• Ribbed design for secure fitting
• Helps protect floors from exposed tube ends, reducing noise and marking
• Available in multiple colours
• Designed primarily for indoor use but can be used outside but not UV stabilised as standard
• Extra deep for uber secure fitting and with a thicker head

Technical Information:

• Tube or pipe shape: Round
• External tube size: Ø20mm
• Tube wall thickness: 1-2mm
• Suggested internal fit: 16-18mm approx. (different factors affect this, including coatings, weld lines and tolerance)
• Material: Low-Density Polyethylene (LDPE)
• Fitting type: Push-fit ribbed insert

Suitable for:

• Angled legs on office and workshop furniture
• Foot bungs for chairs and tables
• Plastic stoppers for Round hollow tubes and pipes
• Feet for display systems
• Post caps for gates and railings
• Tube end caps for light fabrication projects
• Protective tube ends for finishing
• Ribbed knock-in inserts for POS and shopfitting

Tube inserts are always listed the same way that tube is listed because the head of the insert needs to marry up with the outside edges of the tube.  They often come in a variety of wall thicknesses and gauge sizes but if you're unsure on fit, you can click the 'Request Sample' button, or for help measuring your tube, try out this useful sizing pdf.

If this isn't quite right for your application, check out our other inserts for round tube here and if you're not looking to plug the end of a piece of hollow tube and instead after a generic hole plug, then maybe one of our covers caps or panel plugs will work better for you.
