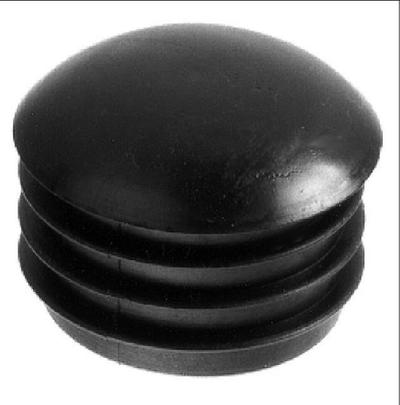

32mm Round Ribbed Half Dome Tube Insert

These 32mm round ribbed tube inserts are designed to provide a clean, secure finish for hollow round tubes and pipes. The tops of the inserts are a shallow dome, so they tend to get used as end caps for finishing off and sealing tube, rather than as feet - as the full dome or angled options listed within this same section, are more suitable as a foot with a more pronounced dome not wearing down as quickly.

The other advantage with these half dome inserts, is they just offer a bit more in the way of details on the finish, than you'd get with an otherwise bog standard flat insert with the slightly 'half' domed top, giving a more aesthetic appearance.  If it's more of an angled foot you're after, then we have full domed and angled options or we also have a range of Tiltserts which may work better for you.

The head diameter is designed to sit flush with the outside of the tube whilst the shank has flexible horizontal ribs to suit a multitude of tube walls, in a range of both metric and imperial sizes.  Thanks to the flexible lateral ribs running around the shank of the insert, they should be suitable for tube wall thickness of between 1 to 2mm metric (14-20 gauge imperial), unless otherwise stated.

Manufactured from durable LDPE plastic, they are commonly used as protective end caps, tube feet, and finishing plugs across furniture, fabrication, and light industrial applications. They're designed to retain themselves inside tube, with the head sitting over the outer ends of the tube or pipe, sitting flush with the outside circumference of the tube and providing a neat finished appearance.

Key Features:

• Fits hollow tube or pipe with a 32mm outer dimension
• Manufactured from resilient LDPE
• Ribbed design for secure fitting
• Helps protect floors from exposed tube ends, reducing noise and marking
• Available in multiple colours
• Designed primarily for indoor use but can be used outside but not UV stabilised as standard
• Enhanced head profile, providing a enhanced finish to an otherwise standard flat insert

Technical Information:

• Tube or pipe profile: Round
• External tube size: Ø32mm
• Tube wall thickness: 1-2mm
• Suggested internal fit: 28-30mm approx. (different factors affect this, including coatings, weld lines and tolerance)
• Material: Low-Density Polyethylene (LDPE)
• Fitting type: Push-fit ribbed insert

Suitable for:

• Angled legs on office and workshop furniture
• Foot bungs for chairs and tables
• Plastic stoppers for Round hollow tubes and pipes
• Feet for display systems
• Post caps for gates and railings
• Tube end caps for light fabrication projects
• Protective tube ends for finishing
• Ribbed knock-in inserts for POS and shopfitting

Tube inserts are always listed the same way that tube is listed because the head of the insert needs to marry up with the outside edges of the tube.  They often come in a variety of wall thicknesses and gauge sizes but if you're unsure on fit, you can click the 'Request Sample' button, or for help measuring your tube, try out this useful sizing pdf.

If this isn't quite right for your application, check out our other inserts for round tube here and if you're not looking to plug the end of a piece of hollow tube and instead after a generic hole plug, then maybe one of our covers caps or panel plugs will work better for you.

   Why not submit your own review?

Submitted by Anthony Hope (19/04/2020)
What I was looking for. Only one problem, when using live chat an answer was given to a question that did not help,ie about the thickness of the dome. I think the live chat was through a 3rd party as the answer was to look on the website at the catalog.

Response from BPF Websales
Thanks for your feedback and our livechat team are in fact employed exclusively by us, so there are no 3rd parties involved - however, because of the current COVID situation, they are all generally having to work from home so some of the infrastructure obviously isn't as good as it would be, when they're based in the office. Saying that though, as with most of our products - this part has a Blue 'View Drawing' button on the product page which gives all the dimensions, including the dome - so there shouldn't be any 'grey' areas, so I'm not sure if you were referred to that but we do try and make that button as prominent as possible, plus of course and again, this is the case with the majority of our products - they're mostly available to 'try before you buy' because there's an Orange 'Request Sample' button on the product page also. Anyway, glad these parts appear to have worked for you and thanks for bearing with our team during these diffcult times, where we try our best to continue to try and conduct business, as normally as possible.

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	4.3 / 5

Submitted by Barty (29/09/2014)
Good,fast service!

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	4.5 / 5

Submitted by Bart (25/09/2014)
Fast turnaround,thanks

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	4.8 / 5

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: what is the MNPN of the product (32mm Dia Rib Half Dome Insert)? can you send me the Data sheet please? Thx

A: Hello. I'm afraid there is no data sheet available for this part. However, samples are available if you wanted to check for suitability. Kind regards, BPF
