T-ABLE MENSOLA +39 Pull Out Table Frame | Extends 1350mm

T-ABLE MENSOLA +39 is a model from our Transformables range and whilst our website is the most up to date place to view the latest models, you can view a pdf we have in our library by clicking here.  This particular model is designed for scenarios where reduced cabinet depth is available, so the +39 range only needs 390mm cabinet depth, so considerably less than the average 540mm needed.  If you're not restricted by shallower cabinet depth, then you will have more models to choose from within the 'standard' range, which can be viewed here.

As a general rule, most of our customers tend to buy these kits 'frame only', which means local tradespeople can fit tops on site, which will match other surrounding work surfaces but a limited selection of the range is available with pre-mounted (White only) melamine tops, which you can explore here.  The +39 range is specifically designed for areas where space is at a premium so typical installations include student accommodation, narrow boats, camper vans and smaller kitchens.

T-ABLE MENSOLA +39 is a new version of the standard T-ABLE that for the extraction of a table from a drawer in a cabinet that only requires 390mm cabinet depth. The folding telescopic leg offers extra re-assurance to safely accommodate a load rating of 100kg, providing extra stability meeting the highest safety standards.

T-Able and T-Bench follow the same design principles and as such, work perfectly in harmony as an integrated seating and table arrangement.  The +39 (shorter depth) range aren't available from us with a White Melamine Top pre-mounted but a limited selection of the standard range is, so you can view these by clicking here : Pull Out Range wtih Tops

All these transformables utilise an ingenious frame design and have been developed to maximise space saving in smaller areas, or where a clutter free environment is required. Designed to sit neatly hidden away behind a drawer front, this system simply pulls out and gives you a choice of table widths. All you need to add is the top of your choice and then you have a versatile tabletop, perfect for small kitchens, kitchenettes, laundry rooms, offices, playrooms and children's bedrooms. Recent applications have also included mobile homes and caravans.

Useful Spec.

Standard frame finish - Natural Anodised Aluminium (Brilliant, on request)
Boxed individually and neatly
Sliding mechanism - Aluminium on Aluminium
Minimum drawer depth required - 390mm
Table Top Length Extended - 1350mm
Gap for Runners, per side - 15 to 20mm
Load Capacity - 100kg Evenly Distributed
Table Height - 715 to 735mm

For more info inc. a full list of contents check out the technical data tab

** We recommend you enlist the services of a carpenter or professional kitchen fitter to install this unit, and please ensure they’re aware of the installation overview video that can be found on every product page – the relevant set of installation instructions will always be included in the box with the product but if needed, a copy can normally be found within the Technical Data tab, along with any other useful info. **

The entire range is constantly being developed and although we list the most popular models available, other options and specials can be made available on request, subject to minimum order requirements.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: Hi, are there any customisation options for this table? Can it be made to fit a narrower cabinet such as 600 wide rather than 1200? Can it be made to extend a shorter distance such as 900 rather than 1350? Thanks.

A: Hello. This frame is not customizable, however there are other options available for widths of 600mm and with less of an extension, such as our PARTY Pull Out Table Frame here: https://www.box15.co.uk/products/46/party-pull-out-table-1380mm-frame-only?catid=58 - We also have HOMEWORK +39 Pull Out Table | 1015mm Extension, and +39 LUNCH Pull Out Table | 705mm Extension which is designed to fit carcasses of 450 - 1200mm Wide. Please see or full range of +39 pull out table/worktop frames here: https://www.box15.co.uk/desks-tables-and-legs/pull-out-tables-and-worktop-extensions/-39-pull-out-tables-and-worktop-390mm-frame-only – You can also view the full range within our brochure here: https://www.box15.co.uk/downloads/box15_kitchen_range_brochure_small.pdf - Kind regards, BOX15

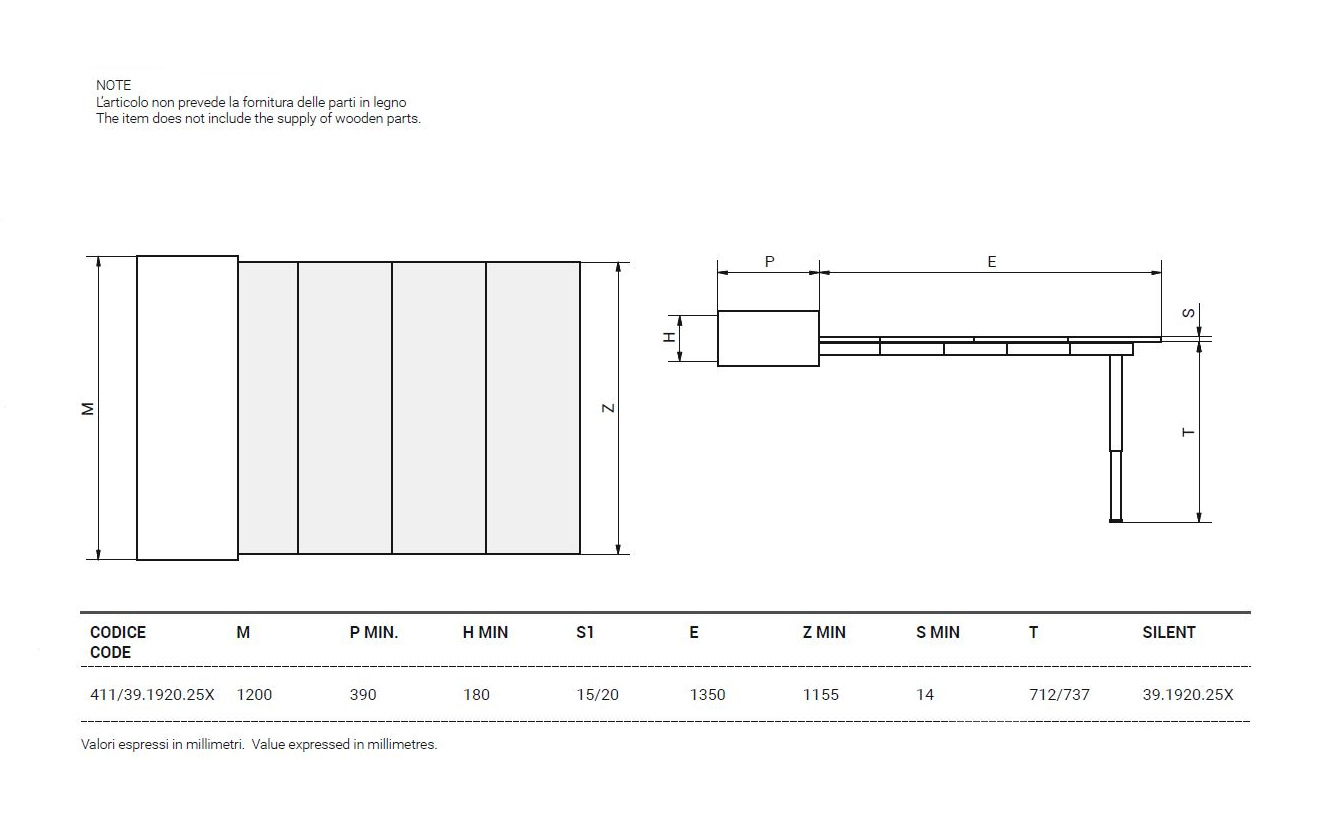

• Dimensional Drawing
• Fitting Instructions
