T-BENCH +39 Pull Out Seat Frame | Extends 705mm

T-BENCH +39 is a model from our Transformables range and whilst our website is the most up to date place to view the latest models, you can view a pdf we have in our library by clicking here.  This particular model is designed for scenarios where reduced cabinet depth is available, so the +39 range only needs 390mm cabinet depth, so considerably less than the average 540mm needed.  If you're not restricted by shallower cabinet depth, then you will have more models to choose from within the 'standard' range, which can be viewed here.

As a general rule, most of our customers tend to buy these kits 'frame only', which means local tradespeople can fit tops on site, which will match other surrounding work surfaces but a limited selection of the range is available with pre-mounted (White only) melamine tops, which you can explore here.  The +39 range is specifically designed for areas where space is at a premium so typical installations include student accommodation, narrow boats, camper vans and smaller kitchens.

T-BENCH +39 is a smaller version of the standard T-BENCH frame that only requires 390mm cabinet depth. T-BENCH is a new system for the extraction of a bench from a drawer. Due to the strength of the slide and aluminium folding leg, adjustable to 25mm in height - you can extract the seating area to over 700mm deep, with a capacity exceeding 100kg.

T-Able and T-Bench follow the same design principles and as such, work perfectly in harmony as an integrated seating and table arrangement. Although this particular unit is frame only, allowing you the freedom to add a top finish of your own choice, we also offer the same product but with a fitted white melamine top - see cross selling suggestions below.

All these transformables utilise an ingenious frame design and have been developed to maximise space saving in smaller areas, or where a clutter free environment is required. Designed to sit neatly hidden away behind a drawer front, this system simply pulls out and gives you a choice of table widths.

All you need to add is the top of your choice and then you have a versatile tabletop, perfect for small kitchens, kitchenettes, laundry rooms, offices, playrooms and children's bedrooms. Recent applications have also included mobile homes and caravans.

Useful Spec.

Standard frame finish - Natural Anodised Aluminium (Brilliant, on request)
Boxed individually and neatly
Choice of 2 widths
Sliding mechanism - Aluminium on Aluminium
Minimum drawer depth required - 390mm
Table Top Length Extended - 700mm
Gap for Runners, per side - 15 to 20mm
Load Capacity - 100kg Evenly Distributed
Table Height - 384 to 409mm

For more info inc. a full list of contents check out the technical data tab!

** We recommend you enlist the services of a carpenter or professional kitchen fitter to install this unit, and please ensure they’re aware of the installation overview video that can be found on every product page – the relevant set of installation instructions will always be included in the box with the product but if needed, a copy can normally be found within the Technical Data tab, along with any other useful info. **

The entire range is constantly being developed and although we list the most popular models available, other options and specials can be made available on request, subject to minimum order requirements.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

• Fitting Instructions

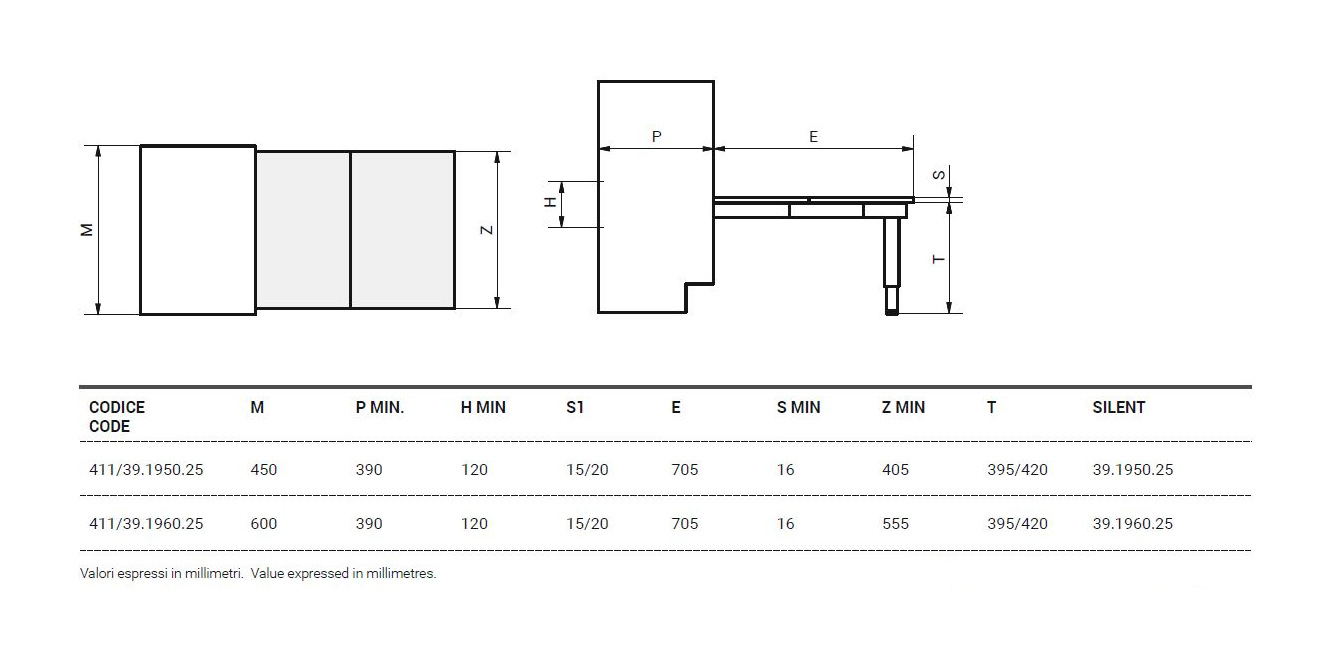

• Dimensional Drawing

 Transformables Range Brochure
