T-ABLE XL Pull Out Table Frame | Extends 1310mm

T-ABLE XL from Italian manufacturer Atim who specialise in clever space saving furniture solutions, is another exciting product from the 'Transformables' range and whilst our website is the most up to date place to view the latest models, you can view a pdf we have in our library by clicking here.  As a general rule, most of our customers tend to buy these kits 'frame only', which means local tradespeople can fit tops on site, which will match other surrounding work surfaces but a limited selection of the range is available with pre-mounted (White only) tops which you can explore here.

There's even the +39 range, which is designed specifically when you haven't got much cabinet / drawer depth to work with, so perfect for smaller spaces were you might have less than 390mm of depth available, with typical installations going into student accommodation, narrow boats, caravans and smaller kitchens so if you're interested in these, then click here to see the +39 range.

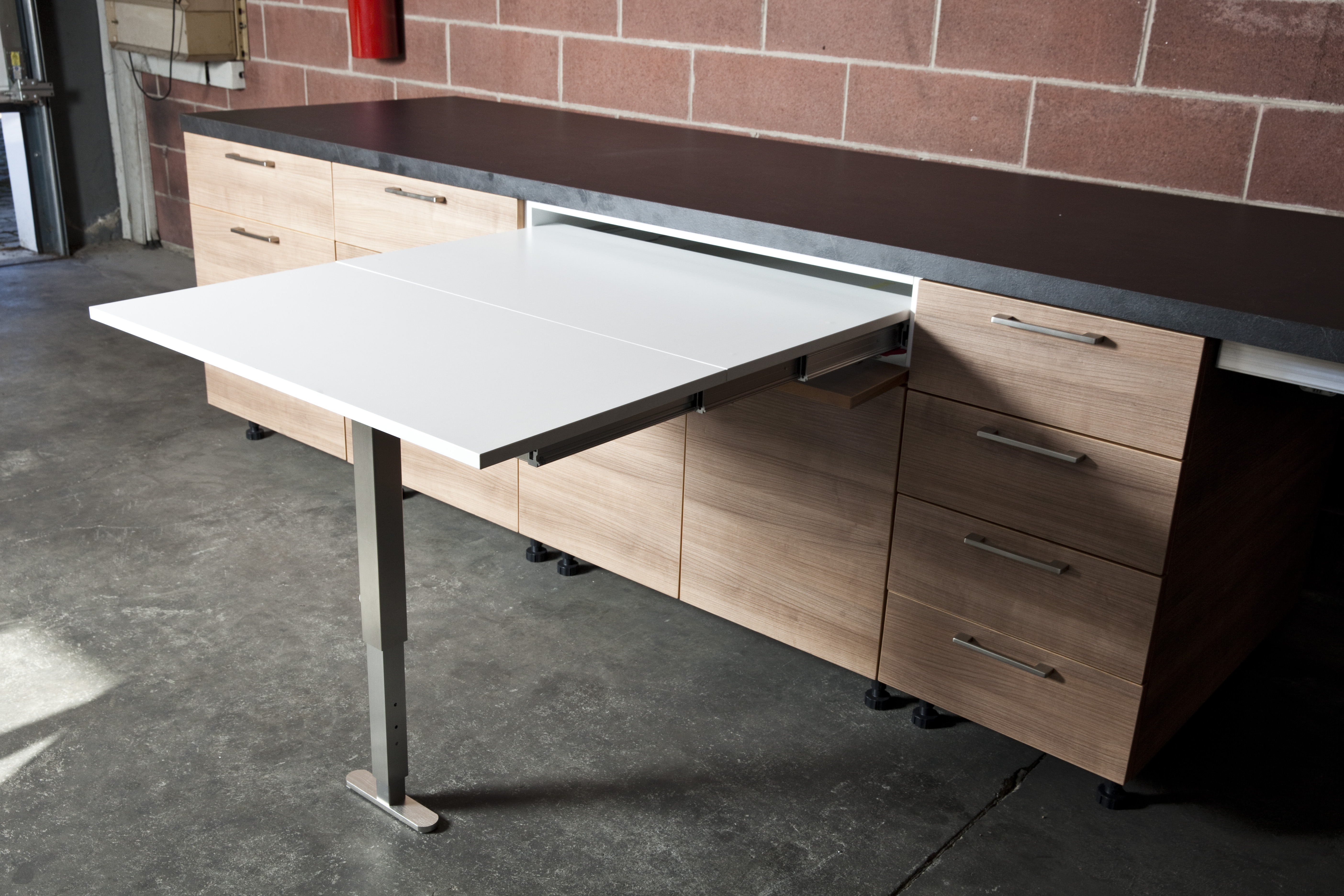

T-Able is a new system for the extraction of a table from a drawer of medium and large size. This is the XL version which is 1310mm long when fully extended and requires 3 pieces for the top.

The XL version of T-ABLE is not available with a top as standard, customers have to put their own one on (details for the required sizes for the top panels can be found in the instructions under the technical data tab) The folding telescopic leg offers extra re-assurance to safely accommodate a load rating of 100kg, providing extra stability meeting the highest safety standards.

T-Able and T-Bench follow the same design principles and as such, work perfectly in harmony as an integrated seating and table arrangement. Most of our customers tend to prefer to use their own tops, so they can match shelves and worktops etc. but if you want to buy the complete unit with fitted white melamine top, then see cross selling suggestions below!

All these transformables utilise an ingenious frame design and have been developed to maximise space saving in smaller areas, or where a clutter free environment is required. Designed to sit neatly hidden away behind a drawer front, this system simply pulls out and gives you a choice of table widths. All you need to add is the top of your choice and then you have a versatile tabletop, perfect for small kitchens, kitchenettes, laundry rooms, offices, playrooms and children's bedrooms. Recent applications have also included mobile homes and caravans.

Useful Spec.

Standard frame finish - Inox Bronzino
Boxed individually and neatly
Choice of 3 widths and 2 depths
Sliding mechanism - Aluminium on Aluminium
Minimum drawer depth required - 540mm on 900 depth, or 520mm on 1310 depth
Table Top Length Extended - 900 or 1310mm
Gap for Runners, per side - 15 to 20mm
Load Capacity - 100kg Evenly Distributed
Table Height - 900 depth @ 745 to 815mm and 1310 depth @ 731 to 801mm

For more info inc. a full list of contents check out the technical data tab!

** We recommend you enlist the services of a carpenter or professional kitchen fitter to install this unit, and please ensure they’re aware of the installation overview video that can be found on every product page – the relevant set of installation instructions will always be included in the box with the product but if needed, a copy can normally be found within the Technical Data tab, along with any other useful info. **

The entire range is constantly being developed and although we list the most popular models available, other options and specials can be made available on request, subject to minimum order requirements.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: How many hinges and end kits do we need for the T-ABLE Pull Out Table (XL) | 1350mm Extension (900 mm wide)?

A: We have checked this for you and you need 3 hinges per joint for 900mm wide models, so in the case of this XL T-Able, then you'd need 6 of our SKU Ref : 104933117814 and just 1 of the Kit Cap Sets, SKU Ref : 104972510614

Q: Hi, Did I understand correctly that the kit contains the entire frame without tabletops, including telescopic rails and a footrest holder? P.S. From the previous questions it is clear that you need to purchase plugs and hinges. :-)

A: Hello. Yes that's right, this is the frame only and so the tops are not included. You can view the full list of contents by going to the ‘Technical Data’ tab > Installation Instructions > Page 1. I hope this assists. Kind regards, BOX15

Q: Hi, I'm interested in this T-ABLE pull out table (XL) 600mm width. 1. how many hinges do I need to install this? 2. what are the ordering number for the hinges? 3. is there a price difference between the 600mm and 900mm width models? Thanks Peter

A: Hello. You’ll need 4 of these hinges for the concertina top on the T-ABLE XL 600mm: https://www.box15.co.uk/products/896/hinge-for-pull-out-table-frame-tops. There is no price difference between the 600mm and 900mm width frames. Kind regards, BOX15

Q: Hey. What is the reason for the 100 kg restriction on T-BENCH XL? And would it be possible to reinforce the bench so it can hold more weight?

A: Your FAQ is actually about T-BENCH XL so strictly speaking, the FAQ shouldn't have gone on this T-ABLE XL, which is essentially a different product. However, both products are often used in conjunction with each other, so I've posted the factory's response anyway. They've advised they always tend to err on the side of caution with the load rating of 100kg, mainly to prevent 'evenly distributed' being mis-intepreted but they've confirmed they have had 2 people sat on this T-BENCH product in their showroom, with a combined weight of approx. 140kg and the T-BENCH has been fine, with no reported issues. Hopefully that gives some reassurance.
