Brush Lining Strip for Cable Slots; 1800mm

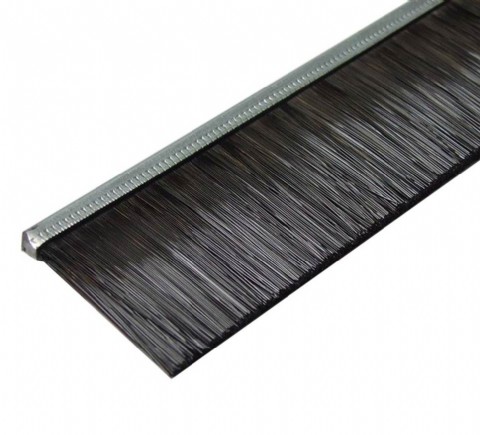

A 1.8 Metre (1800mm) length of Brush Lining profile for making up rectangular cable slots for furniture. We already sell the finished slots in a couple of sizes but buying them this way, allows you to customise lengths.  We use the same extrusion and brush for both Mid Position and Edge Position slots but historical demand has mean the mid position slots tend to be Silver and the edge position slots tend to be Black - however, you can add in another colour mix with the brushes, as these come Black or Grey.

This Brush Liner is universal, so it's suitable for the Mid Position and Edge Position Slots - you don't need a different liner for each product range!

We'd recommend that unless you're intending to collect your order, that you consider ordering these as a Pack of 10, purely because due to their length, sending them with a carrier individually isn't really viable due to the nature of the product.

To make up one complete slot you would need:


EDGE SLOTS (NCS)
1 x Pair of End Caps : C-01030-2000G-001-435
1 x 2m Side Bar (Extrusion) : C-01030-2000E-001-435
1 x 1.8m Brush Lining : C-01030-1800F-001-435

MID SLOTS (NCT)
45mm Wide Set:
2 x Side Bar Extrusion (C-01030-1800A-005-435)
1 x Set of 45mm End Caps, choice of Round or Rect shape (C-01030-2000R45-005-435 / C-01030-2000S69-005-435)
1 x Brush Lining (C-01030-1800F-001-435)

69mm Wide Set:
2 x Side Bar Extrusion (C-01030-1800A-005-435)
1 x Set of 69mm End Caps, choice of Round or Rect shape (C-01030-2000R45-005-435 / C-01030-2000S69-005-435)
2 x Brush Lining (C-01030-1800F-001-435)

The associated Extrusion and end caps can be found below in the Related Products section.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: I wish to create a cable slot into a desk. It can be formed by two brushes.The slot must be wide enough for a power plug to go through. I can use a aluminium carrier slot. No need for end caps unless they are necessary. Please let me know which components to use. Thanks

A: You could make your own units up and all you'd have to do is make sure you bought the 69mm End Caps - and you'd need to bear in mind the reason for this is you need the 69mm wide profile, as a UK 3-Pin plug won't fit through the thinner 45mm profile. The end caps come as a pair and you buy the brush lining and the extrusion in strip form, which you then cut to length! Or of course, just do what the vast majority of our customers do and buy the slot ready assembled - just make sure it's the 69mm wide one you choose, similar to these ones if you type this SKU Ref into our product finder : C-01030-450069

Q: What is the exact bristle length for this product?

A: Hello. The size of the brush is approximately 24mm. Kind regards, BPF
