Side Bar Extrusion for Rect Slots, 1800mm

A 1.8 Metre (1800mm) length of Extruded Aluminium profile for making up rectangular cable slots for furniture. We already sell the finished slots in a couple of sizes but buying them this way, allows you to customise lengths.  We use the same extrusion and brush for both Mid Position and Edge Position slots but historical demand has mean the mid position slots tend to be Silver and the edge position slots tend to be Black - however, you can add in another colour mix with the brushes, as these come Black or Grey.

We'd recommend that unless you're intending to collect your order, that you consider ordering these as a Pack of 10, purely because due to their length, sending them with a carrier individually isn't really viable due to the nature of the product.

We also sell the Brush Lining and End Caps required to make up the complete slot. This allows customers to make custom length Cable slot.

The custom sets can be made for a choice of 2 widths; 45mm or 69mm. For each set you need:

45mm Wide Set:
2 x Side Bar Extrusion (C-01030-1800A-078-435)
1 x Set of 45mm End Caps choice of Round or Rect shape (C-01030-2000R45-005-435 / C-01030-2000S69-005-435)
1 x Brush Lining (C-01030-1800F-001-435)

69mm Wide Set:
2 x Side Bar Extrusion (C-01030-1800A-078-435)
1 x Set of 69mm End Caps, choice of Round or Rect shape (C-01030-2000R45-005-435 / C-01030-2000S69-005-435)
2 x Brush Lining (C-01030-1800F-001-435)

The associated brush and end caps can be found below in the Related Products section.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

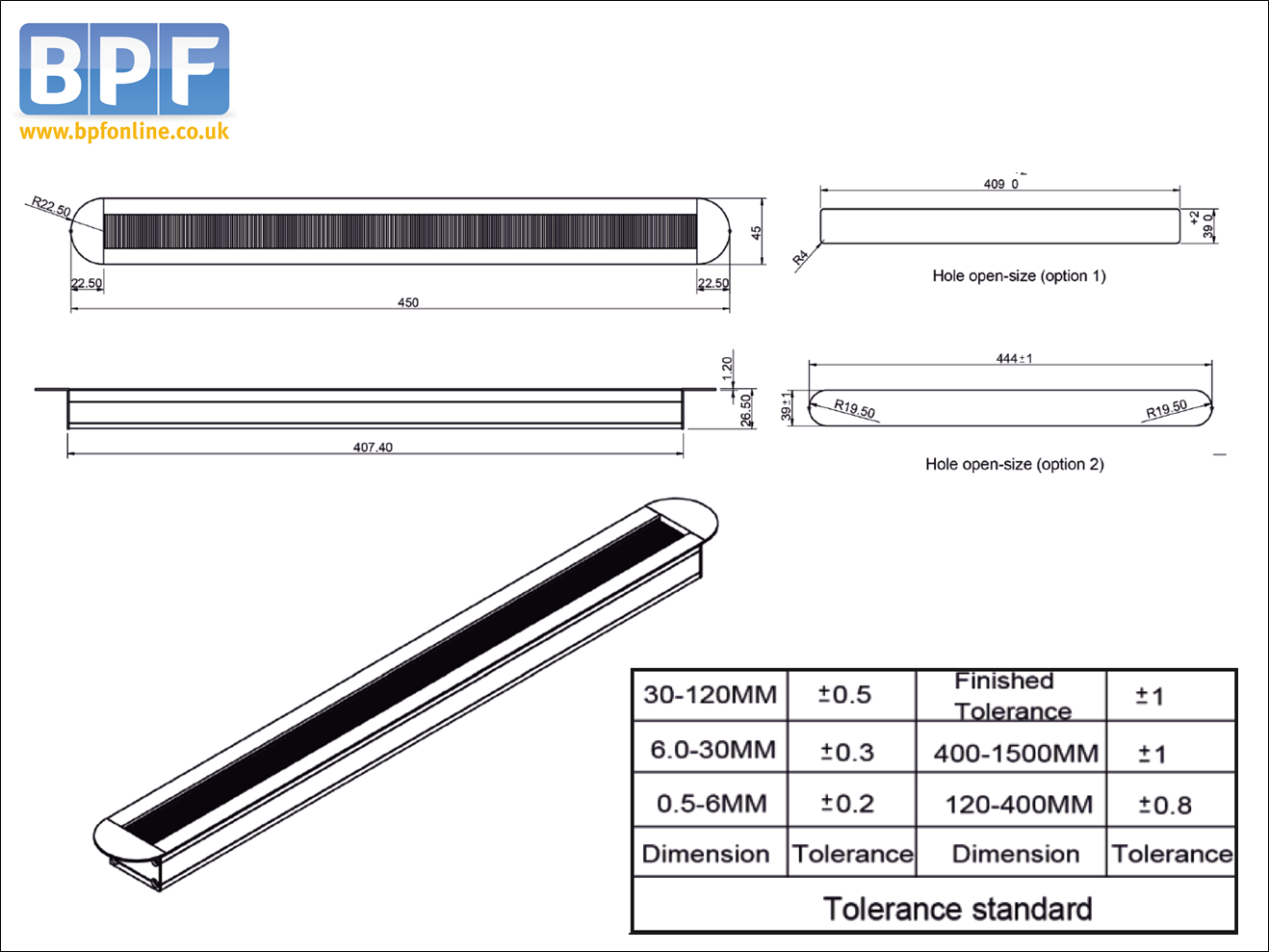

• Technical Drawing

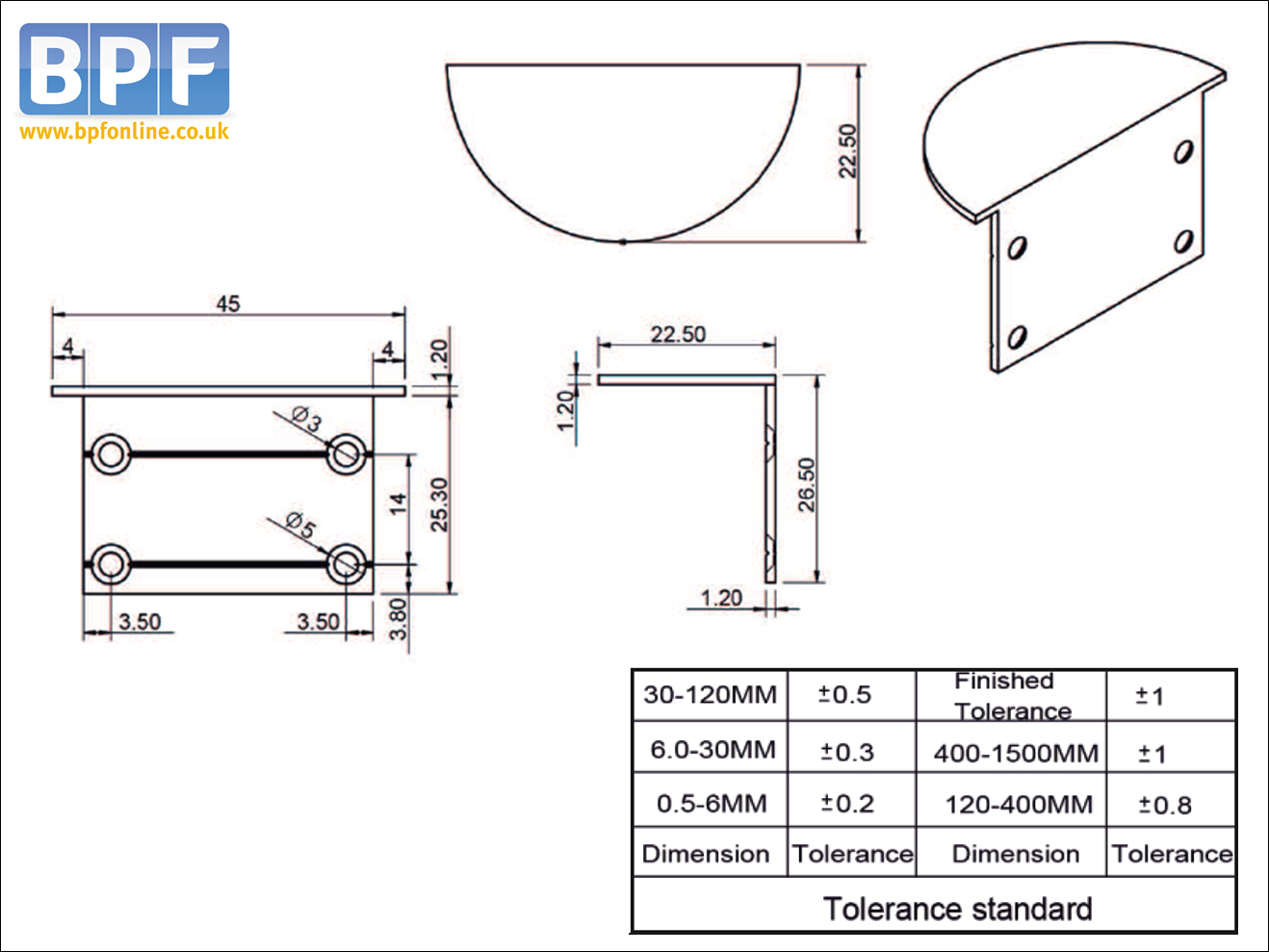

• Technical Drawing - Side Caps
