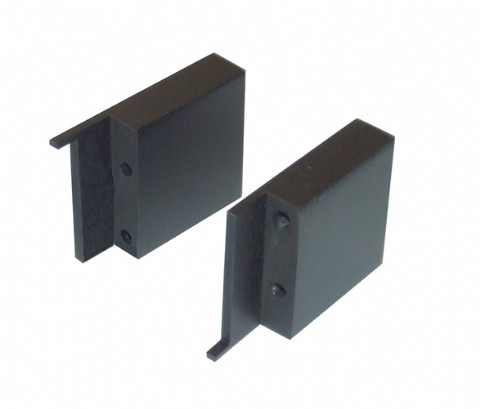

Pair of End Caps for Edge Cable Slot

A Set of End caps for the Edge Position Cable Slot Range. Sold along with the 2 screws, these can be used to replace existing caps or used along with the Extrusion and Brush lining to make up your own custom sizes of slots.

To make up one complete slot you would need:

1 x Pair of End Caps : C-01030-2000G-001-435

1 x 2m Side Bar (Extrusion) : C-01030-2000E-001-435

1 x 2m Brush Lining : C-01030-2000F-001-435

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: We ordered: EDGE SLOTS (NCS) 1 x Pair of End Caps : C-01030-2000G-001-435 1 x 2m Side Bar (Extrusion) : C-01030-2000E-001-435 1 x 2m Brush Lining : C-01030-2000F-001-435 Could you send me any installation guide ? I do Have only slide bar and end cups and i don't know how to fix that

A: Hello. We don’t actually offer an installation guide for these as they are very straightforward and essentially just a rectangular cable grommet. However, please see the ‘Technical Drawing’ under the ‘Technical Data’ tab where you will see that the end caps are screw fixed to either end of the Side Bar (Extrusion) which holds the brush in place - images showing the complete slots and how they are meant to be arranged are available on the website. Generally, customers purchase these components individually when looking to customise lengths, but you can also find standard Brush Lined Cable Slots here: https://www.bpfonline.co.uk/search.asp?catid=3149 – the assembled slot will need to be router fit to your desk, and so if the slot cannot be retro fitted to an existing gap/hole then we'd recommend enlisting a professional trades-person to assist with installation. I hope this assists. Kind regards, BPF

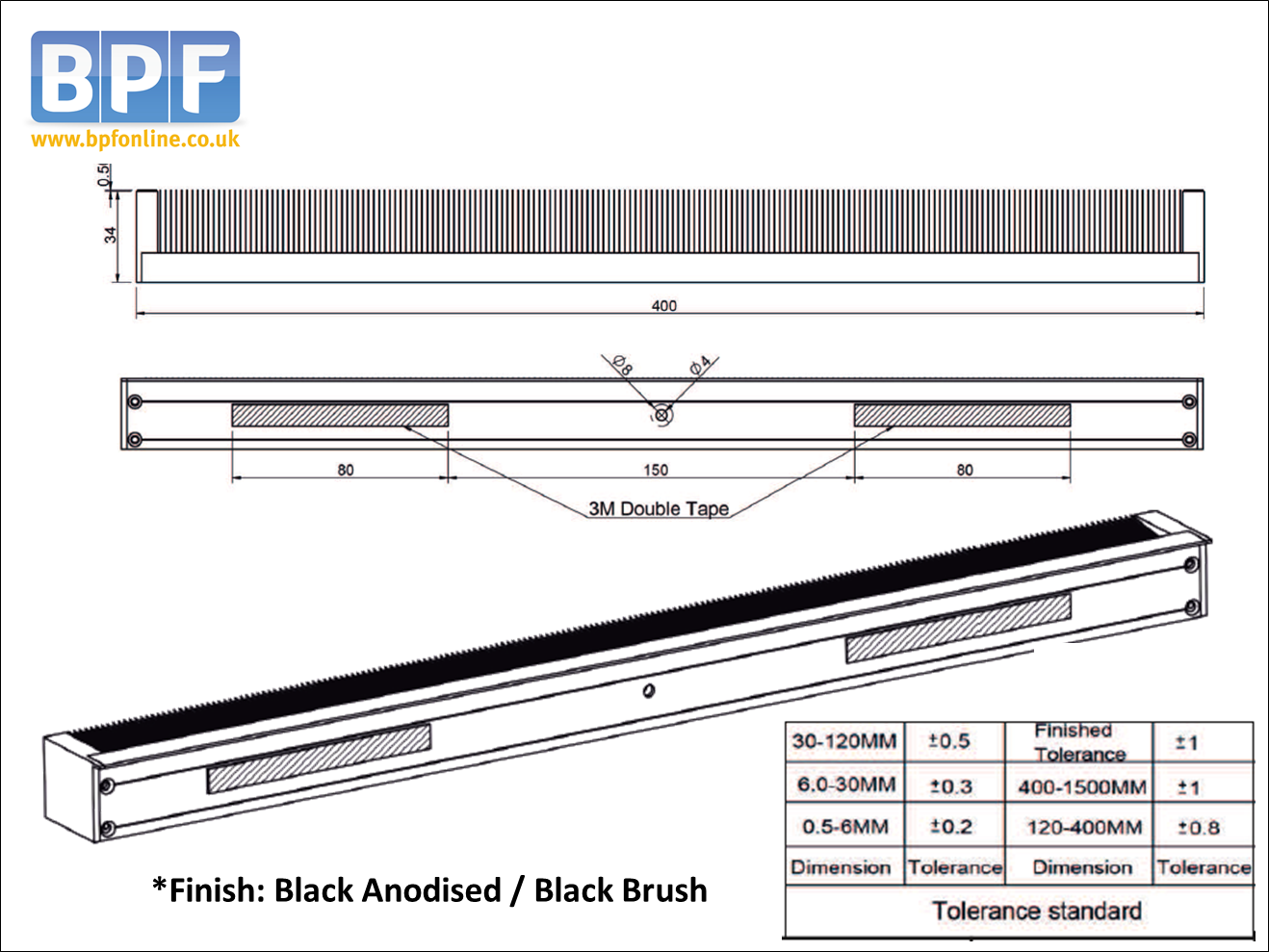

• Technical Drawing

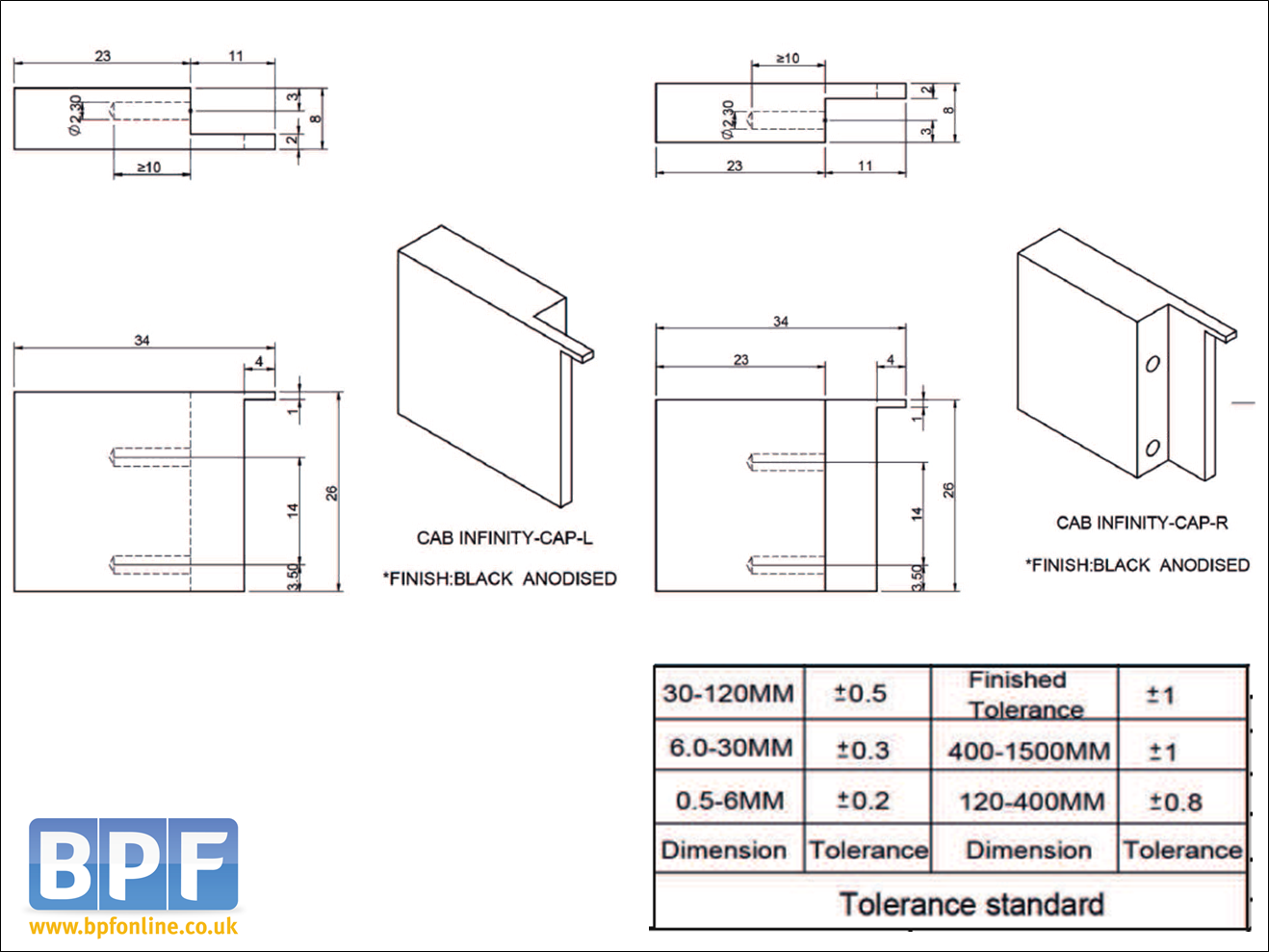

• Technical Drawing - Side Caps
