Side Mounting Bracket for Round Tube

This Side Mounting Bracket for Round Tubes is designed to securely fix 48.3mm diameter round profiles perpendicular to flat surfaces in conveyor and production systems.

Commonly used for applications such as attaching support legs to the side of conveyor frames, it provides a strong and stable connection in space-efficient installations. Manufactured from black reinforced nylon (polyamide), the bracket offers high strength, durability, and resistance to wear while remaining lightweight and corrosion-resistant. The concealed-fixing design hides screw heads after installation, creating a smooth outer surface that reduces dirt build-up and delivers a clean, professional finish.

Technical Specifications

• Product Type: Side Mounting Bracket for Round Tubes
• Tube Size: 48.3mm diameter round tube
• Tube Diameter: Ø48.3mm
• Mounting Orientation: Side mounting, perpendicular to the flat surface
• Material: Reinforced nylon (polyamide)
• Colour: Black
• Fixing Method: Concealed screw fixing
• Finish: Smooth outer surface with hidden fasteners
• Properties: Lightweight, corrosion-resistant, high mechanical strength
• Applications: Conveyor frames, support legs, production lines, material handling systems
• Environment: Industrial and manufacturing use

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

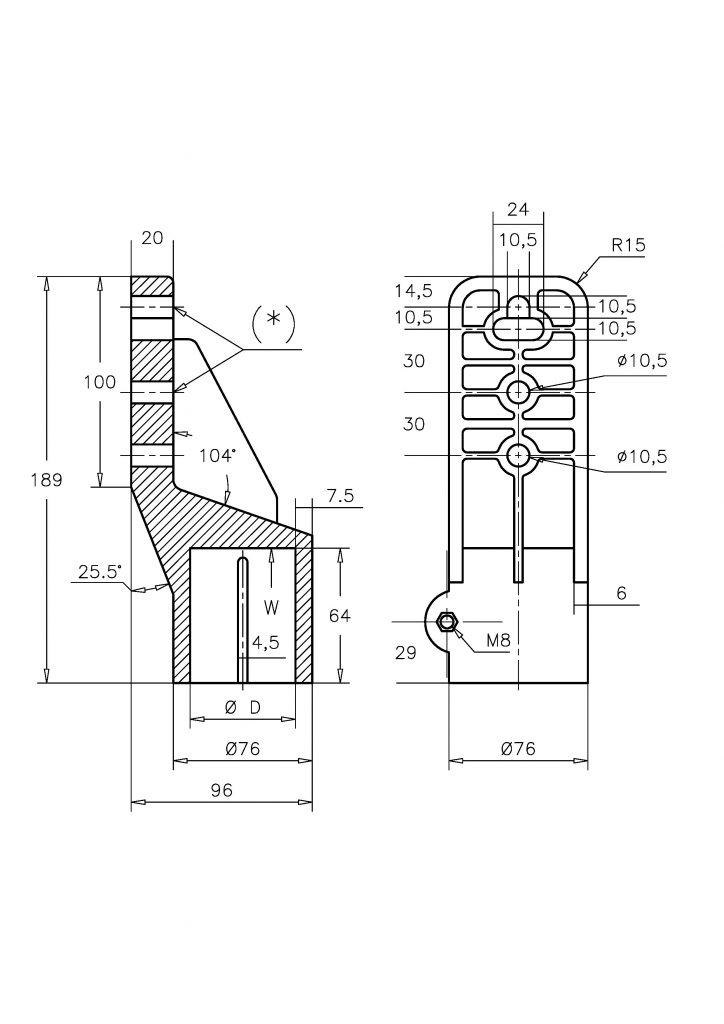

• Technical Drawing
