LUNCH +39 Pull Out Table Frame | Extends 705mm

LUNCH +39 is a model from our Transformables range and whilst our website is the most up to date place to view the latest models, you can view a pdf we have in our library by clicking here.  This particular model is designed for scenarios where reduced cabinet depth is available, so the +39 range only needs 390mm cabinet depth, so considerably less than the average 540mm needed.  If you're not restricted by shallower cabinet depth, then you will have more models to choose from within the 'standard' range, which can be viewed here.

As a general rule, most of our customers tend to buy these kits 'frame only', which means local tradespeople can fit tops on site, which will match other surrounding work surfaces but a limited selection of the range is available with pre-mounted (White only) melamine tops, which you can explore here.  The +39 range is specifically designed for areas where space is at a premium so typical installations include student accommodation, narrow boats, camper vans and smaller kitchens.

+39 LUNCH is an alternative of our standard LUNCH pull out table that only requires 390mm cabinet depth but retaining the same clever functionality.

This ingenious design has been developed to maximise space saving in smaller areas, or where a clutter free environment is required. Designed to sit neatly hidden away behind a drawer front, this system simply pulls out and gives you a choice of table widths.

These are perfect for small kitchens, kitchenettes, laundry rooms, offices, playrooms and childrens bedrooms. Recent applications have also included mobile homes and caravans.

Although this unit is frame only allowing you to match to an existing worktop finish, we also offer the same range but with a fitted white melamine top - see cross selling options below!

Available in a choice of widths, this system will give you a pull out workable table top area of approx. 705mm in length. There's no need to store extra components, extensions etc. elsewhere as everything is compactly designed within the drawer ready for you to simply open the hinged front of the drawer space.

Useful Information, for this free standing peninsula table frame :

• Standard frame finish: Natural Anodised Aluminium (Brilliant, on request)
• Boxed individually and neatly: 118cm x 17cm x 8cm and 5kg
• Sliding mechanism: Alumiuium on Aluminium
• Minimum drawer depth required: 390mm
• Cabinet Width: 450-1200mm. This unit is designed to fit any width in that range.
• Table Top Length Extended: 705mm
• Gap for Runners, per side: 15 to 20mm
• Load Capacity: 60kg Evenly Distributed

For more info inc. a full list of contents check out the technical data tab

** We recommend you enlist the services of a carpenter or professional kitchen fitter to install this unit, and please ensure they’re aware of the installation overview video that can be found on every product page – the relevant set of installation instructions will always be included in the box with the product but if needed, a copy can normally be found within the Technical Data tab, along with any other useful info. **

The entire range is constantly being developed and although we list the most popular models available, other options and specials can be made available on request, subject to minimum order requirements.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: Is it possible to get same system like +39 Lunch pull out table which can be fitted into unit which is up to 300mm depth?

A: We reverted back to the factory on this one for you and this is the response : 'We have a lot of “special” models designed to be fitted in the 300 mm depth. The problem is they are really customer dedicated items of which there is no internal stock and their production will depend on numbers - normally at least 10 pieces.' So it looks like we can help with a custom design for a minimum quantity of 10 units, so if that's viable then we can obviously pursue this with you.

• Assembly Instructions

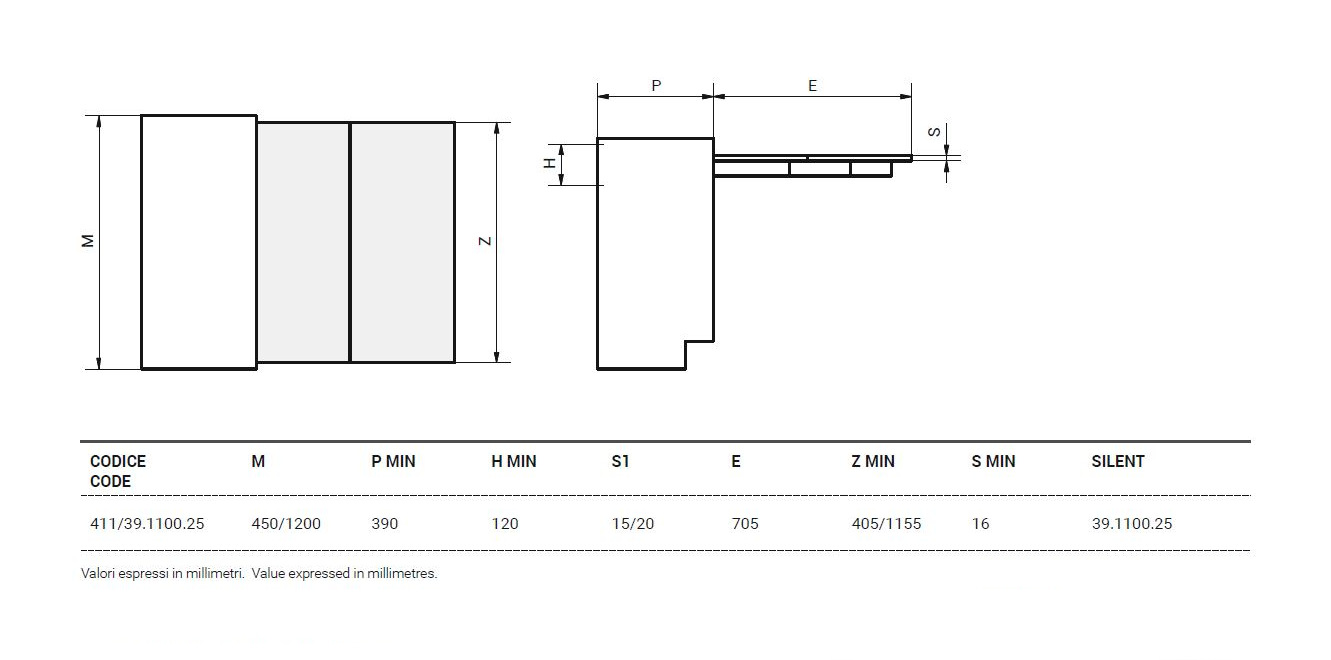

• Dimensional Drawing

 Transformables Range Brochure
