OPLA TOP Pull Out+Up Table Frame | Extends 500mm

OPLA TOP is a model from our Transformables range, which is a quality product manufactured by Italian company Atim and whilst our website is the most up to date place to view the latest models, you can view a pdf we have in our library by clicking here.  As a general rule, most of our customers tend to buy these kits 'frame only', which means local tradespeople can fit tops on site, which will match other surrounding work surfaces but a limited selection of the range is available with pre-mounted (White only) tops which you can explore here.

There's even the +39 range, which is designed specifically when you haven't got much cabinet / drawer depth to work with, so perfect for smaller spaces were you might have less than 390mm of depth available, with typical installations going into student accommodation, narrow boats, caravans and smaller kitchens so if you're interested in these, then click here to see the +39 range.

Oplà-top is a system that enables a top to be pulled out of a drawer unit and end up flush with the kitchen worktop. Ideal for kitchens with small worktops, it provides a very useful additional peninsula area to be used as a small table for breakfast or a quick meal. Opening system: Easy up.

Within the Opla range, we offer 'Opla' which pulls out to sit flush with the shelf above, or 'Opla Top' which will pull out and rise up to the height of a worktop. Most of our customers tend to prefer to use their own tops, so they can match shelves and worktops etc., so you will need to source your own top to complete the installation.

So with this listing, all you need to add is the top of your choice and then you have a versatile tabletop or worktop, perfect for small kitchens, kitchenettes, laundry rooms, offices, playrooms and children's bedrooms. Recent applications have also included mobile homes and caravans.

Useful Spec. (more info published within Technical Data tab)

Standard frame finish - Natural Anodised Aluminium (Brilliant, on request)
Boxed individually and neatly
Choice of 4 widths
Sliding mechanism - Aluminium on Aluminium
Minimum drawer depth required - 540mm
Table/WorkTop Length Extended - 500mm
Recommended Top Thickness - 20 to 60mm
Gap for Runners, per side - 15 to 20mm
Load Capacity - 40kg Evenly Distributed

For more info inc. a full list of contents check out the technical data tab!

** We recommend you enlist the services of a carpenter or professional kitchen fitter to install this unit, and please ensure they’re aware of the installation overview video that can be found on every product page – the relevant set of installation instructions will always be included in the box with the product but if needed, a copy can normally be found within the Technical Data tab, along with any other useful info. **

The entire range is constantly being developed and although we list the most popular models available, other options and specials can be made available on request, subject to minimum order requirements.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

• Assembly Instructions

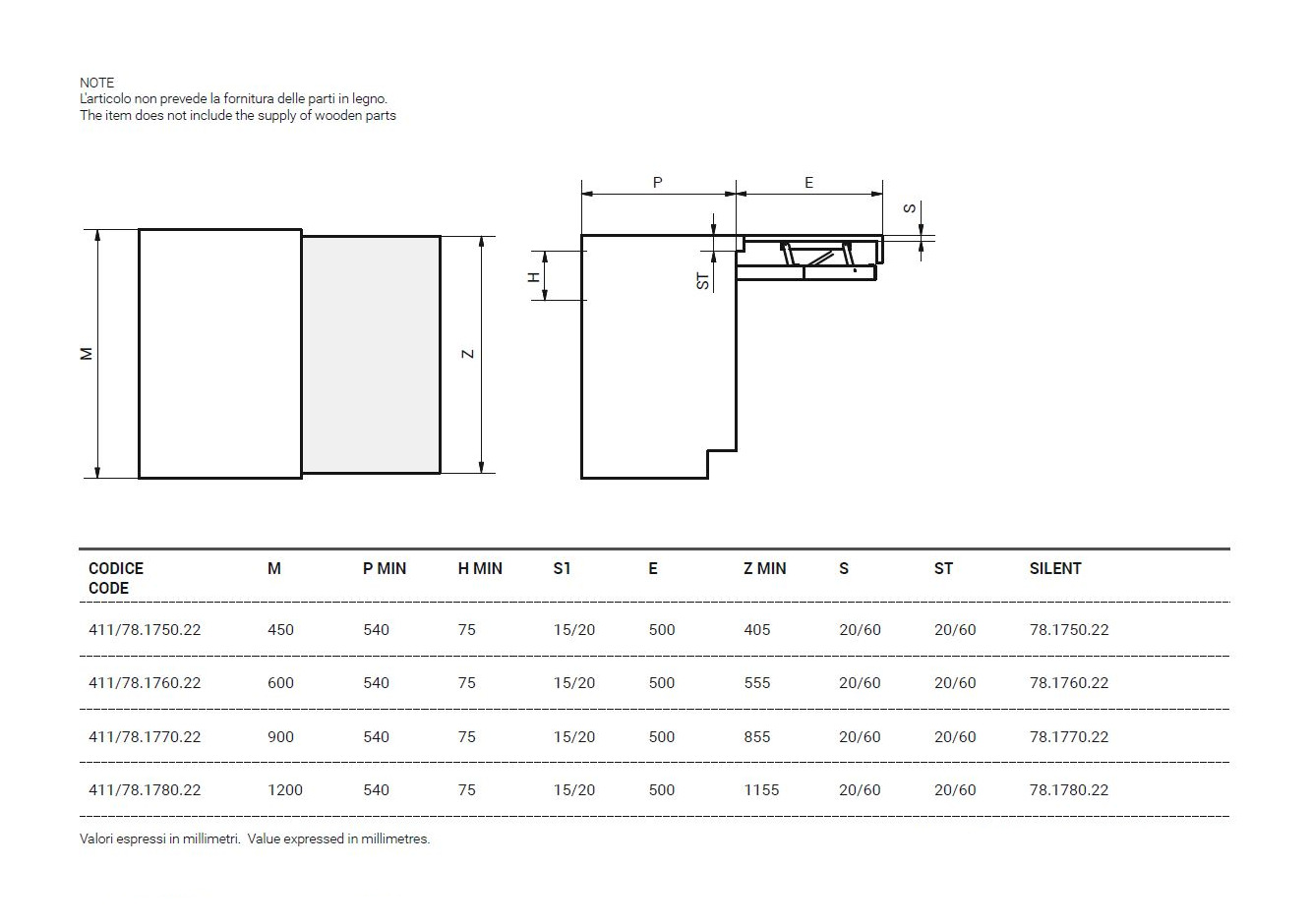

• Dimensional Drawing

 Transformables Range Brochure
