Adjustable Round Guide Rail Mounting Bracket - Screw Clamp Fixing

T1605101

Black Reinforced Nylon | Conveyor Belt Component

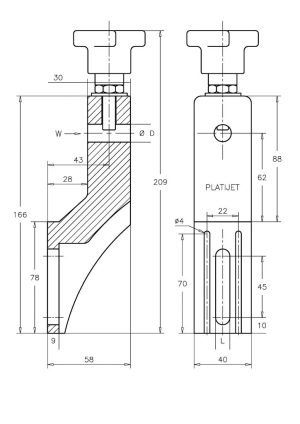

1. Guide Rail Bore Diameter


2. Fixing Slot Width

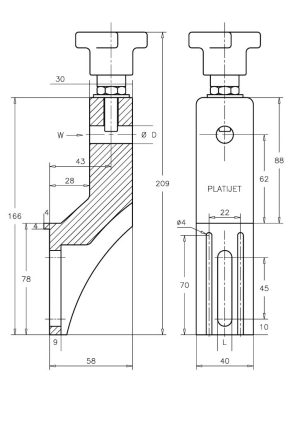

3. Support Stud



Show me what configurations are in stock now - Click here

Pack sizes optional on stock items, which you can order in any quantity. Prices exclude VAT

Individual item(s)Pack(s) of 4Pack(s) of 20Pack(s) of 40Pack(s) of 80
£12.99£48.32£223.36£419.37£802.27
(£12.992 each)(£12.079 each)(£11.168 each)(£10.484 each)(£10.028 each)

Enter total number of units (items / kits / pairs) required - not how many packs

QTY
Other ways to order: Call: 01295 678614 Email your PO to: orders@bpfonline.co.uk

Explore other cost-saving possibilities below...

Account Login Newsletter Volume Enquiry

This Adjustable Round Guide Rail Mounting Bracket is designed for secure, accurate positioning of round guide rails in conveyor and production line systems. Featuring a screw clamp fixing, it firmly holds the guide rail in place while allowing easy adjustment during installation or line changeovers.

Manufactured from durable black reinforced nylon, the bracket offers excellent strength, wear resistance, and long service life in industrial environments. With a 12.5mm bore and 9mm fixing slot, it is compatible with a wide range of stems and fixing widths, and is available with or without a support stud to suit different assembly needs.

Technical Specifications

  • Product Type: Adjustable Round Guide Rail Mounting Bracket
  • Fixing Method: Screw clamp fixing
  • Material: Reinforced nylon
  • Colour: Black
  • Guide Rail Type: Round guide rail
  • Bore Diameter: 12.5mm
  • Fixing Slot Width: 9mm
  • Adjustment: Fully adjustable for precise positioning
  • Compatibility: Suitable for various stem types and fixing widths
  • Support Stud: Available with or without support stud (variant dependent)
  • Application: Conveyor systems, production lines, material handling assemblies
  • Typical Use: Guide rail positioning, side rail support, conveyor guidance
  • Environment: Industrial and manufacturing environments
