EVOLUTION Pull Out Table Frame | Extends 1040mm

EVOLUTION from Italian manufacturer Atim who specialise in clever space saving furniture solutions, is another exciting product from the 'Transformables' range and whilst our website is the most up to date place to view the latest models, you can view a pdf we have in our library by clicking here.  As a general rule, most of our customers tend to buy these kits 'frame only', which means local tradespeople can fit tops on site, which will match other surrounding work surfaces but a limited selection of the range is available with pre-mounted (White only) tops which you can explore here.

There's even the +39 range, which is designed specifically when you haven't got much cabinet / drawer depth to work with, so perfect for smaller spaces were you might have less than 390mm of depth available, with typical installations going into student accommodation, narrow boats, caravans and smaller kitchens so if you're interested in these, then click here to see the +39 range.

EVOLUTION is a new system for the extraction of a table from a drawer of medium and large size. the medium version of 1000mm is designed to use 2 tops, while the XL version of 1500mm is provided for the use of 3 tops. The model has been developed to allow the use of the leaf of the entire composition of the cabinet, or to be inserted in a cabinet in which the door closing is not provided (example: in the kitchen monobloc with recessed door).

This new transformable comes complete with a painted steel bridge leg with 2 wheels on the ground, adjustable up to 25mm in height. Like all our other transformable models, all components and your wooden parts are integrated into the system. Although this particular unit is frame only, allowing you to add a top finish of your choice, we also sell the same product but with a white melamine top - see cross selling options below!

This ingenious frame design has been developed to maximise space saving in smaller areas, or where a clutter free environment is required. Designed to sit neatly hidden away behind a drawer front, this system simply pulls out and gives you a choice of table widths.

All you need to add is the top of your choice and then you have a versatile tabletop, perfect for small kitchens, kitchenettes, laundry rooms, offices, playrooms and children's bedrooms. Recent applications have also included mobile homes and caravans.

Useful Spec.

Standard frame finish - Inox Bronzino
Bridge Leg Finish - RAL 7012 Basalt Grey
Boxed individually and neatly
Choice of 3 widths and 2 depths
Sliding mechanism - Aluminium on Aluminium
Minimum drawer depth required - 520mm
Table Top Length Extended - 1039mm
Gap for Runners, per side - 15 to 20mm
Load Capacity - 100kg Evenly Distributed
Table Height - 732mm

For more info inc. a full list of contents check out the technical data tab!

We also offer a +39 version which has been designed for narrow cabinet depths (390mm +) – you can find a link to the +39 version of this frame below, under the ‘customers also viewed’ section.

** We recommend you enlist the services of a carpenter or professional kitchen fitter to install this unit, and please ensure they’re aware of the installation overview video that can be found on every product page – the relevant set of installation instructions will always be included in the box with the product but if needed, a copy can normally be found within the Technical Data tab, along with any other useful info. **

The entire range is constantly being developed and although we list the most popular models available, other options and specials can be made available on request, subject to minimum order requirements.

   Why not submit your own review?

Submitted by CIPRIAN COJOCARU (12/04/2019)
Great product!

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	4.8 / 5

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: Hi with the table top, what would be the best way to cut the holes for the hinges?

A: Hello. We recommend you enlist the services of a carpenter or professional kitchen fitter to install this unit. The template details for the hinges can be found in the technical data tab, and so you will just need to show the person making the top so they can template the holes in the correct position for the hinges. The relevant set of installation instructions will always be included in the box with the product. However, a copy can also be found within the Technical Data tab, along with any other useful information. Please also ensure that they are aware of the installation overview video, which can be found on the product page. Kind regards, BOX15

• Fitting Instructions

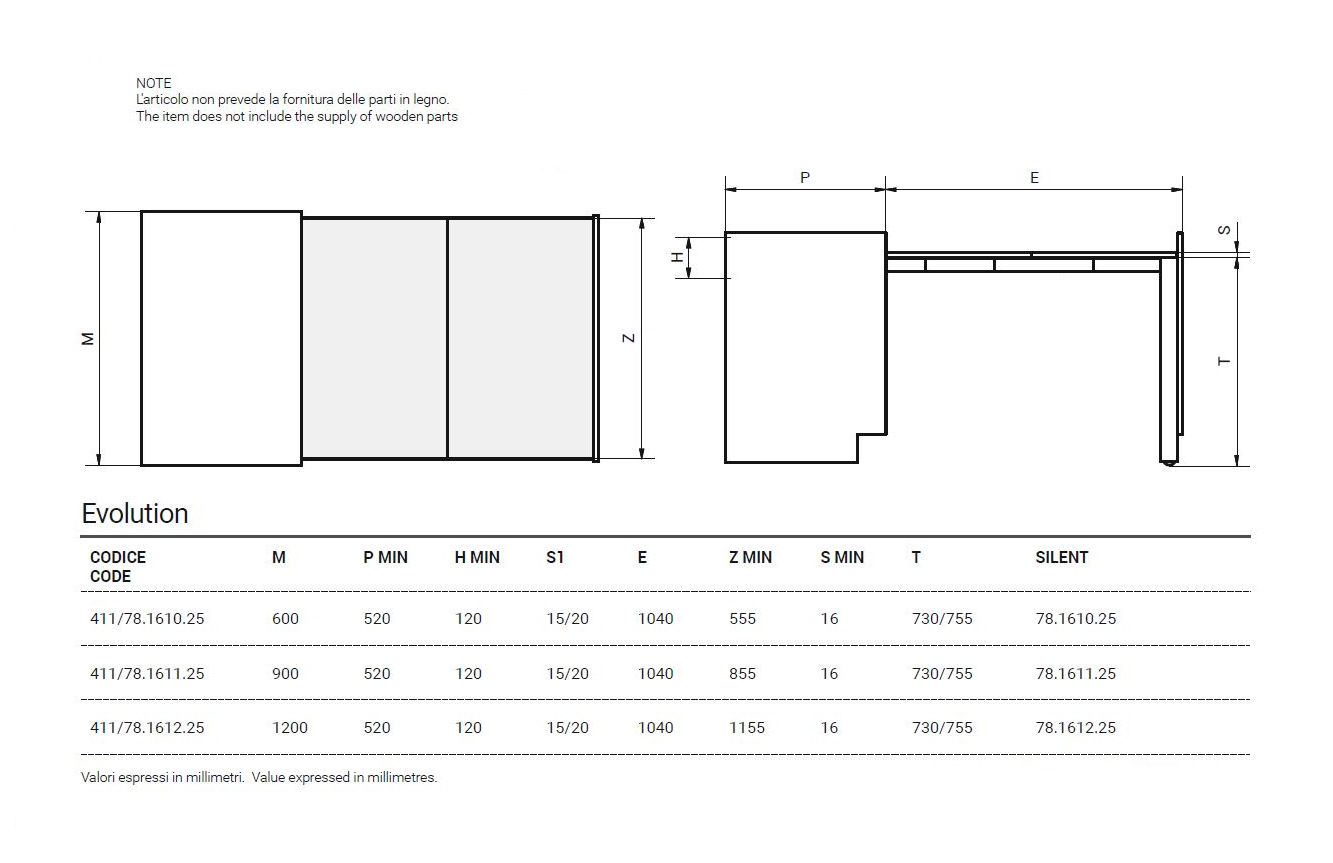

• Dimensional Info

 Transformables Range Brochure
