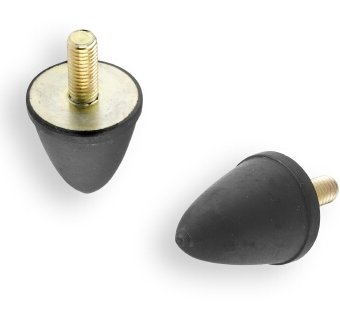

Ø20x24mm Parabolic M6 Single Male Anti Vibration Mounts

These 20mm diameter anti-vibration mounts or dampers are 24mm high and come with a standard M6 x 18mm single male thread. We also have countless other options across multiple thread forms, including male, female, single thread, twin thread and combination AVM's (which feature a male and a female thread on the same component).

Anti-vibration mounts have a multitude of uses but are typically used as feet for machinery, conveyors, air conditioning units, washing machines, generators, pumps, car engines and just about anything where you want to remove vibrations, shocks or reduce sound. They will isolate machines and equipment from supporting structures, reducing noise, dampening mechanical vibrations and preventing structural damage. They are typically placed between the base of a vibrating device and the floor, wall, or frame.

Anti-vibration mounts are also known as:

• AV mount
• Vibration isolator
• Rubber mount
• Shock mount
• Vibration dampening mount
• Isolation mount

Generally, our range of AVMs is available in a premium NBR (Nitrile Butadiene Rubber) Shore A 55 Degree with steel thread, but many customers take advantage of the significant savings (up to 60%) by using the more standard quality NR Rubber/St.37 metal washers/6.8 quality bolts.

Key Features:

• Small compact foot with a 20mm Round Base
• Manufactured from a forgiving Rubber
• Standard M6 Thread with 1.0mm Pitch
• Raises structures off the floor
• Shock-absorbing and sound-dampening
• Anti-slip properties
• Designed primarily for indoor use but can be used outside (but not UV-stabilised as standard)

Technical Information:

• Base Diameter: 20mm Round
• Thread Form: Single M6 x Industry Standard 1.0mm Pitch
• Exposed / Available Thread: 18mm
• Base Height: 24mm
• Compatible with Threaded Inserts, including D Nuts and T Nuts
• Material: NBR or NR

Suitable for:

• Levelling off furniture
• Height raising
• Dampers or mounts
• Replacing castors
• HVAC Systems
• Industrial machines
• Heavy-duty equipment
• Automotive & marine
• Sensitive electronics
• Domestic appliances
• Noise & vibration control

If this doesn't quite fit what you need, you can explore our full range of feet and castors. You'll find a variety of other options including stainless threaded feet, chrome capped feet, tilt feet, furniture glides, all-metal feet and even self-assembly feet in the form of sockets and pre-cut all thread studs, meaning you've no limitations to the length you can go.

If you decide you don't want a visible thread and you're using hollow tube or box section, then we also have a range of table leg adjusters and tiltserts or contact us if you can't find what you need.
