40x20mm Rectangular M10 Threaded Tube Insert | 1.5-2.5mm Wall

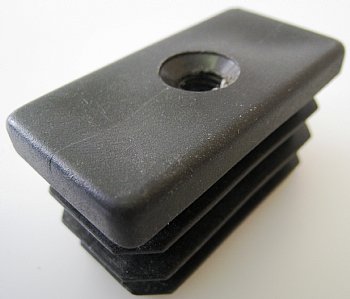

40x20mm metric rectangular ribbed M10 threaded tube inserts designed to push into rectangular / oblong tube to act as a foot, with an outside or external dimension of 40x20mm, to suit a 1.5 to 2.5mm wall thickness.  Unlike standard ribbed tube inserts used for finishing and capping off, these threaded / tapped inserts are used for feet or castors to screw in to, giving you the option of height adjustment or mobility.

Across our range of threaded inserts. you have different options including all-plastic, plastic with metal threads or all-metal and there will also be variations including solid, folding, ribbed and plain sided options.  Hopefully there will be something suitable for your application and please feel free to utilise our free of charge sample service - just look out for the request sample button you'll find on any product page, where a sample is available.

Threaded inserts by their nature will be made from a harder material than normal tube inserts, as the integrity of the thread needs to remain intact when coupled with a foot or castor and they're all designed to retain themselves inside tube, with the head sitting over the outer ends of the tube or box section, sitting flush with the outside edges of the tube and providing a neat finished appearance.

Technical Information:

• Tube or box section profile: Rectangular / Oblong
• External tube size: 40x20mm metric
• Thread: M10 Plastic (ribbed design)
• Tube wall thickness: 1.5-2.5mm
• Suggested internal fit: 35x15mm to 37x17mm approx. (different factors can affect this, including coatings, weld lines and tolerance)
• Material: Polypropylene
• Fitting type: Push in inteference fit

Suitable for:

• Feet for tubular framework
• Height adjusting furniture
• Display, pos and shopfitting
• Levelling feet for display systems
• Rasing products off the floor
• Light fabrication projects
• Eliminating welding operations
• General engineering applications
• Receiving castors, feet and glides

Useful Accessories & Related Products

• M10 Rigid Feet
• M10 Tilt Feet
• M10 Anti Vibration Mounts
• Screw In Glides
• Square Tube Expanders
• Castors & Wheels
• All-Metal M10 Feet
• M10 All-Thread Pre Cut Studs
• T-Nut & D-Nut Threaded Inserts

Tube inserts are always listed the same way that tube is listed because the head of the insert needs to marry up with the outside edges of the tube.  They often come in a variety of wall thicknesses and gauge sizes but if you're unsure on fit, you can click the 'Request Sample' button, or for help measuring your tube, try out this useful sizing pdf.

If this isn't quite right for your application, we have all sort of other options including Table Leg Adjusters which are perfect if you don't want a metal thread visible.  This is just one of wide range of Threaded Inserts we offer and if you're struggling to find what you need, the you can phone, email or live chat us.
