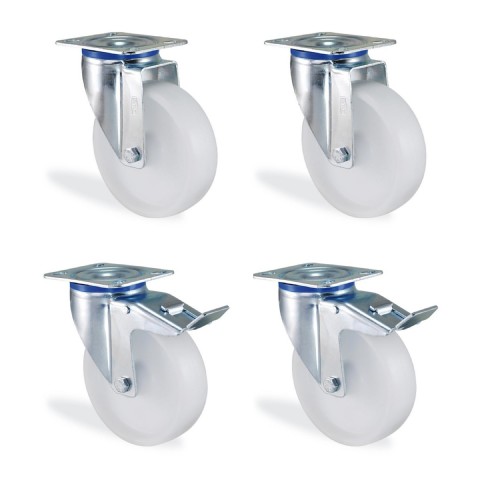

Set of 4: Ø 100mm Medium Duty Industrial Castor - 2 x Braked / 2 x Unbraked

Engineered for control, durability, and dependable movement, the Ø 100mm Medium Duty Braked Industrial Castor is equipped with a dual-action brake that locks both the wheel and swivel fork, providing secure, stable positioning when stationary.

The polypropylene tread and rim offer long-lasting performance on smooth, flat surfaces while resisting water, oils, and chemicals. Its blue passivated galvanised fork enhances corrosion resistance and ensures long-term reliability in industrial and commercial environments.

The swivel plate mount provides a secure fit for medium-duty applications, including mobile racks, carts, workstations, and handling equipment where safe stopping power is a must.

Specifications

Braked:

• Wheel Diameter: 100mm
• Wheel Width: 30mm
• Overall Height: 130mm
• Offset: 42mm
• Mounting Plate Size: 100 x 85mm
• Hole Distance: 80 x 60mm
• Hole Diameter: 17 x 9mm
• Load Capacity: 110kg
• Wheel Material: Polypropylene tread & rim
• Bearing Type: Plain Bore
• Brake Type: Dual-action – locks both wheel and swivel

Unbraked:

• Wheel Diameter: 100mm
• Wheel Width: 30mm
• Overall Height: 130mm
• Offset: 42mm
• Mounting Plate Size: 100 x 85mm
• Hole Distance: 80 x 60mm
• Hole Diameter: 17 x 9mm
• Load Capacity: 110kg
• Wheel Material: Polypropylene tread & rim
• Bearing Type: Plain Bore
