1400mm Wide X3 Bench Desk Frame (2 Person)

The X3 1400mm Wide Bench Desk Frame is a back-to-back office desk frame, designed for professional workspaces that require generous individual desk space without compromising on flexibility. Built around the modular X3 system, this commercial bench desk frame is ideal for office fit-outs, corporate environments, educational facilities and office furniture manufacturers looking for a scalable workstation solution.

The X3 system has been engineered around a fully modular platform, allowing you to build anything from a single workstation to large back-to-back bench desk configurations using the same core components. Whether you're fitting out a new office or expanding an existing workspace, the X3 desk range provides a cost-effective solution that grows with your business.

We offer a choice of two legs for the X3 desk frame. The standard leg (695mm) and the EVO leg (722mm). The EVO leg has been redesigned to comply with BS EN 527-1:2011, providing the recommended modern desk height while improving under-desk cable management. The new compact top fixing system eliminates the large mounting plate used on previous generations, creating more usable space beneath the desk for cable trays, power modules and IT infrastructure.

With a strong steel construction, adjustable levelling feet and a choice of finishes, the X3 bench desk frame is built for demanding commercial environments while maintaining a clean, contemporary appearance.

Unlike many desk suppliers, we sell our desk frames and desktop worktops separately. This is particularly beneficial for office furniture manufacturers, contractors and fit-out companies who already source their own tops. If you require a desktop, we can manufacture one specifically for your frame, complete with pre-drilled fixing holes and threaded insert nuts for fast, hassle-free installation. To save even more installation time, we'll also machine any required cut-outs free of charge when purchasing our desk accessories. If you order desk grommets, in-desk power modules or brush cable access flaps, we'll prepare the desktop at the factory before dispatch.

Key Features

• 1400mm wide back-to-back bench desk frame
• Modular design allows future expansion
• Fully commercial-grade steel construction
• EVO leg designed to BS EN 527-1:2011
• Improved compact top fixing for better cable management
• Available as frame only or with made-to-order desktop
• Free machining for cable ports and power modules purchased with your desktop
• Ideal for office fit-outs, furniture manufacturers and commercial projects
• Volume discounts available for trade customers

Technical Specifications

• Width: 1400mm
• Available Depths: 1000mm, 1200mm, 1260mm, 1400mm, 1460mm, 1600mm, or 1660mm
• Frame Height: X3 EVO (722mm) or standard (695mm)
• Beam Length: 1234mm
• Beam Colour: Black
• Standard Colours: Silver, White, Black (others available)
• Standards: BS EN 527-1:2011
• Compatible Accessories: Sliding Tops, Cable Management, Desk Grommets, Power Modules, Cable Access Flaps
• Desktop Options: Sold separately (18mm or 25mm MFC available)

Included Components

• 2 × Pairs of terminal legs

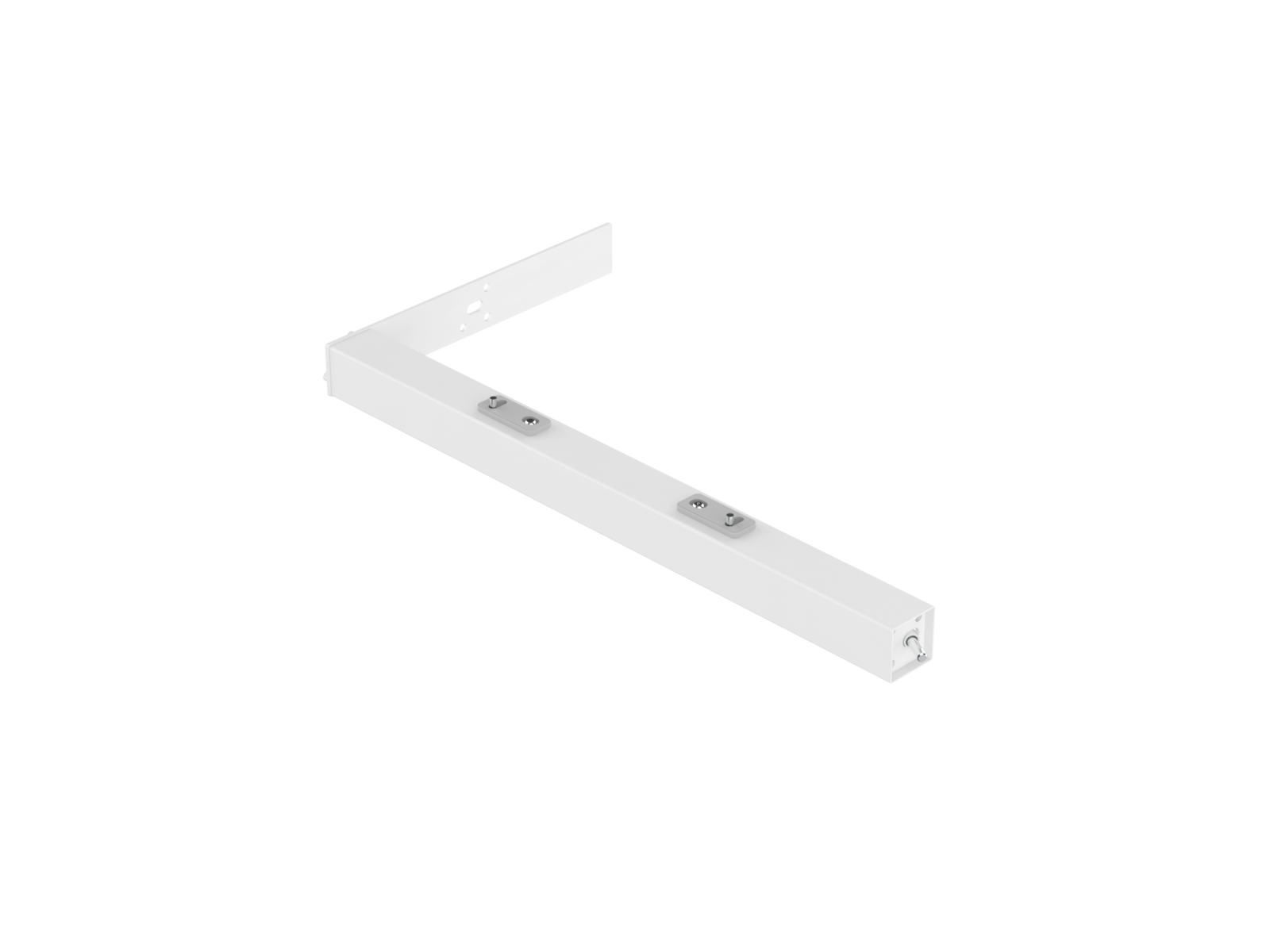

• 2 × Extension sections
• 2 × 1234mm steel support beams
• All required fixings
• Bolts
• Screws
• Grub screws
• D-Nuts
• Fixing plates
• Assembly Allen key

Required for Assembly (Not supplied)

• Crosshead (Phillips) screwdriver
• Allen key set

Why Choose the X3 Bench Desk System?

Flexible Modular Design

The X3 system is designed to adapt as your business grows. Whether you're creating a two-person workstation or a larger collaborative office layout, additional modules can be added with ease.

Optimised for Modern Cable Management

The redesigned EVO leg features a compact top fixing that creates more clearance beneath the desktop, making it easier to install cable trays, power modules, CPU holders and network cabling.

Built for Commercial Environments

Manufactured from durable steel and designed for daily use, the X3 system is suitable for demanding office environments including corporate offices, educational facilities, government buildings and healthcare settings.

Precision-Machined Desktops

When purchasing a desktop from BPF, every worktop is machined specifically for your frame. We also provide free cut-outs for cable grommets, in-desk power modules and cable access flaps purchased with your order, reducing installation time on site.

Ideal For

• Office furniture manufacturers
• Office fit-out contractors
• Corporate offices
• Educational environments
• Co-working spaces
• Healthcare facilities
• Local authorities
• Facilities management companies
