SLIDE Pull Out Breakfast Bar Extension

The SLIDE pull-out breakfast bar extension is a clever, space-saving solution that allows a breakfast bar to extend diagonally from a kitchen island or worktop. Thanks to its innovative diagonal movement, the SLIDE system can comfortably accommodate up to four people, making it ideal for casual dining, social spaces, or additional workspace.

Designed to be retrofitted to existing kitchen islands or cabinets, SLIDE offers an easy way to upgrade your kitchen without the disruption of a full refit. When not in use, the mechanism remains discreetly hidden behind a drawer front, maintaining a clean, uncluttered appearance.

Supplied as a sliding aluminium frame only, you simply add your own tabletop surface to complete the installation. The smooth-running mechanism ensures effortless extension, while a built-in locking system keeps the table securely in place when fully extended.

Perfect for small kitchens, kitchenettes, utility rooms, offices, playrooms, and increasingly popular in mobile homes and caravans, the SLIDE system delivers flexible functionality wherever space is limited.

Minimum Installation Requirements

• Minimum counter depth: 900 mm
• Extension depth: 315 mm or 350 mm
• Overhang: 0–385 mm available on each side

Available Size & Direction Options

• 1200 × 1200 mm (L/R) – Slides left or right
• 1200 × 950 mm (L) – Slides to the left only
• 1200 × 950 mm (R) – Slides to the right only
• 900 × 900 mm (L/R) – Slides left or right

Technical Overview

• Load capacity: Up to 60 kg (evenly distributed)
• Minimum top thickness: 56 mm
• Frame finish: Natural anodised aluminium (Brilliant finish available on request)
• Operation: Manual diagonal sliding mechanism
• Locking system: Yes – secures the table when extended
• Packaging: Individually boxed and compact

(For full contents and dimensional drawings, please refer to the Technical Data tab.)

Key Features

• Diagonal Sliding Design: Creates seating for up to four people.
• Retrofittable System: Ideal for upgrading existing islands or cabinets.
• Hidden Installation: Discreetly stored behind a drawer front when not in use.
• Durable Aluminium Frame: Strong, corrosion-resistant and smooth in operation.
• Custom Worktop Compatible: Add your own surface material.
• Secure Locking Mechanism: Keeps the table stable during use.
• Space-Saving Solution: Designed for compact and multifunctional spaces.

Installation Guidance

Professional installation by a carpenter or kitchen fitter is strongly recommended. Installers should review the installation overview video before fitting. Printed instructions are included with the product, with digital copies available in the Technical Data tab.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: SLIDE Pull Out Breakfast Bar Frame Only. Are the wheels included? First page says wheels included on this pdf page 13 it say wheels not included. Kind regards Paul

A: The 3 Wheels shown on Page 1 of 13 are included in the kit but what is illustrated on Page 13 of the 13 is actually a suggested housing for this very same wheel - showing required dimensions. The factory as they are in Italy, have referred to it as a 'support' but in effect it's just a block or housing designed to 'support' those 3 wheels, which are useful as you get further away from the centre where the mechanism is situated. There's not a housing supplied as standard, purely for the reason that you can fix this mechanism to variable thickness tops, from 70mm upwards so a standard size housing supplied, could never be universal. So it was decided at the outset to give customers maximum flexibility, particularly considering the depth of the required housing can only be determined once a customer has worked out how much they need to core the top out, in relation to the 'S' and 'H' dimensions from Page 2 of 3. It is not essential to use these support wheels if a customer particularly doesn't want to have to source or make a housing but after having assembled many of these, it was felt by the factory that the extra support generated by these housed wheels, gave a more solid feel - and therefore a better overall finish. But it has been installed without use of these wheels, with no problems to the best of the factory's knowledge and bearing all this in mind, it might be an idea to watch the video again, as this should hopefully all make sense.

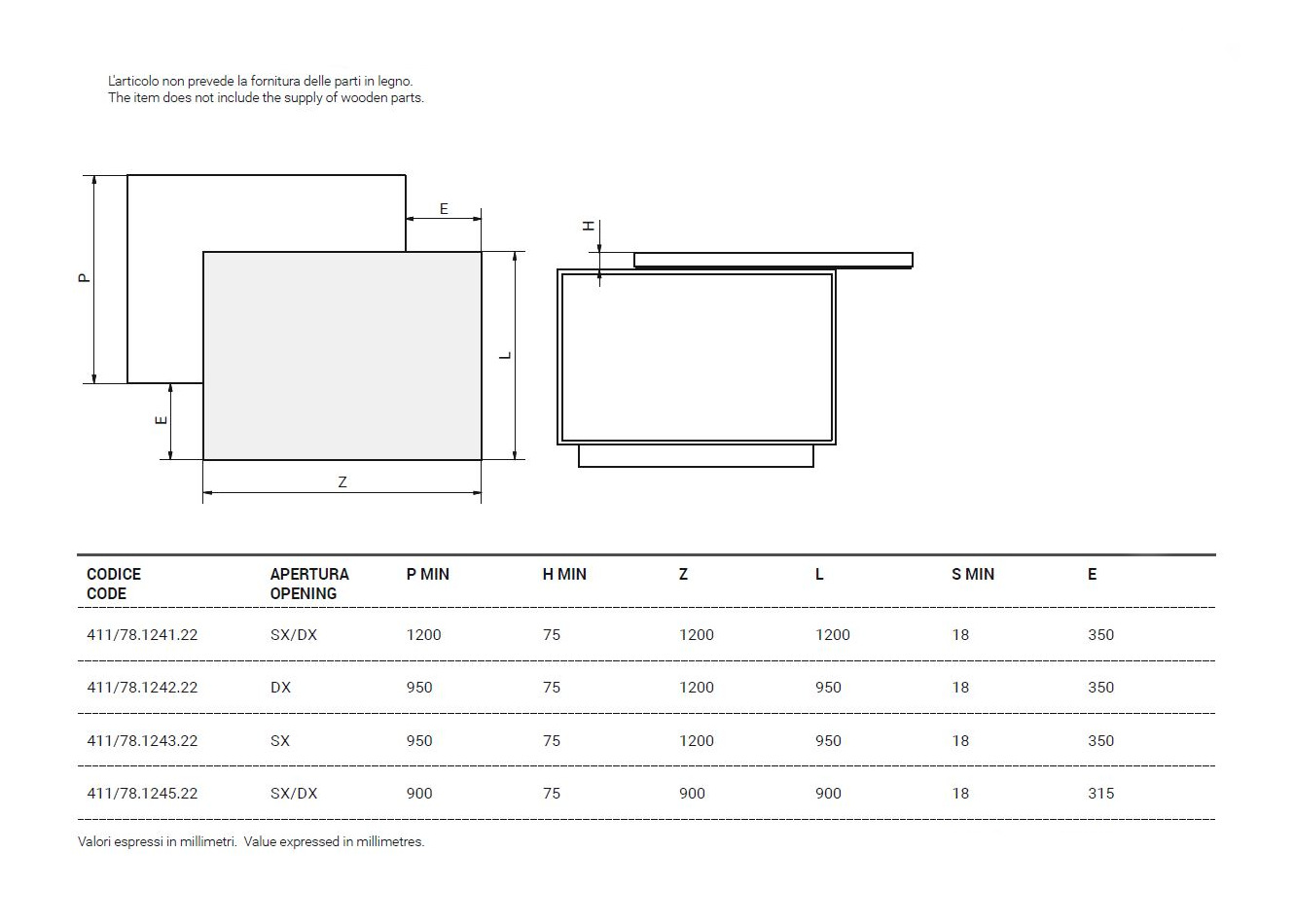

• Dimensional Drawing
• 1200x1200mm Fitting Instructions
• 900x900mm Fitting Instructions

 Transformables Range Brochure
