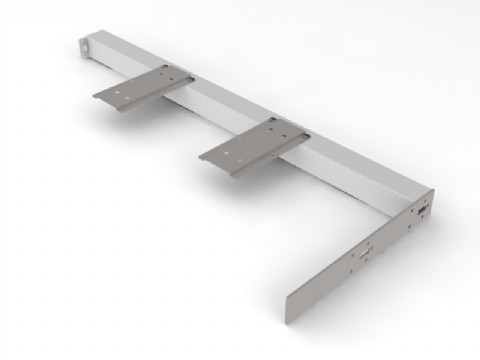

X3 'EVO' Extensions, Intermediate 856

X3 is one of our most popular ranges we offer, thanks to it's modular design which means it's an impressively versatile desking system suitable for small offices through to multi personell call centre environments.  By adding extensions like these, you can easily convert an existing X3 stand alone desk, into a back to back desk for multiple users.

The 'EVO' variation of this range has been designed to respect BS EN 527-1:2011 so is slightly taller at 722mm from under the top, as opposed to the old X3 leg which is 695mm from under top.  The leg still retains a tolerance of 20mm, meaning our leg accommodates 720 to 760mm.  The old leg still complies but you need to use a minimum 25mm thick top to reach 720mm (695 + 25mm)

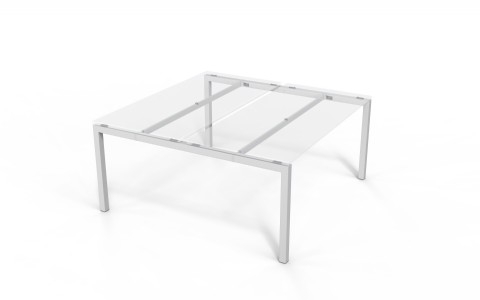

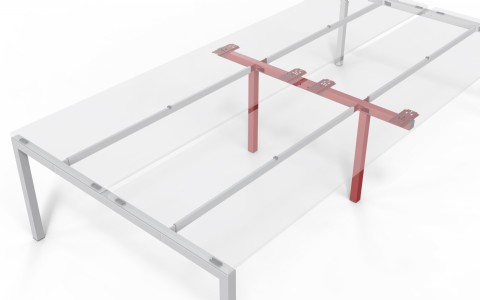

This particular extension is generally used when looking to get a back to back desk, with a footprint of either 1460mm (when used with 600mm legs) or 1660mm (when used with 800mm legs).  Just for the sake of clarification, the Terminal Extensions are used with the Terminal Legs which you'd use on the end of any single or back to back desk - but if you were having more than 2 people working back to back on a bench, then you'd likely be using Inverted (or set back) legs, which then require Intermediate Extensions.

If you were buying the complete Bench from us, then all of this componentry would come supplied as part of the kit so this listing is just if you wanted to build your own desk, or adapt an existing X3 Desk.

More information on the range can be found within our Technical Data tab but if you have any questions, please contact sales or use our livechat facility.
