80mm Grommet Power with 1xGang USB A+C, HDMI & RJ45

Upgrade any office desk, meeting table or home workstation with this 80mm desk power grommet, combining UK power, USB-A Quick Charge, USB-C Power Delivery, HDMI and RJ45 network connectivity in one compact desktop module.

Designed to fit a standard Ø80mm desk grommet hole, this integrated power unit provides convenient access to charging, power and data connections without cluttering your workspace with extension leads or loose cables.

Key Features

• 1 x UK 3-pin power socket (5A fused)
• 1 x USB-A Quick Charge 3.0 port
• 1 x USB-C Power Delivery fast charging port
• Integrated HDMI connection
• RJ45 Ethernet data connection
• Fits industry standard Ø80mm desk cut-outs
• Ideal replacement for existing 80mm desk grommets
• 2m mains lead supplied
• 0.5m GST connector tail included
• No module swapping required - HDMI and RJ45 supplied as standard
• Clean, professional cable management solution

Technical Specifications

• Desk Cut-Out: Ø80mm
• Power Socket: 1 x 5A fused
• USB Ports 1 x USB-A QC3.0, 1 x USB-C PD
• Video Connection: HDMI
• Network Connection: RJ45 Ethernet
• Mains Lead: 2 metres
• GST Connector Tail: 0.5 metre
• Desk Thickness: 8–72mm
• Overall Depth: 110mm (allow additional 30mm+ for cable exit)
• Application: Indoor office environments
• Maximum Load: 5A (1100W)

Why Choose This 80mm Desk Power Module?

Unlike older interchangeable designs, this latest version includes both HDMI and RJ45 connectivity as standard, eliminating the need to swap modules during installation. Its compact design maximises desk space while providing all the essential power and connectivity options expected in today's hybrid workplaces.

Benefits include:

• Cleaner cable management
• Reduced desktop clutter
• Faster device charging
• Easy access to power
• Professional workspace appearance
• Quick installation into existing 80mm desk holes
• Suitable for new furniture and retrofit installations

Fast Charging Where You Need It

Keep laptops, smartphones and tablets fully charged without searching for wall sockets.

The integrated charging ports include:

• USB-A Quick Charge 3.0 - Quick Charge 3.0 technology delivers significantly faster charging for compatible Android devices, tablets and accessories compared to standard USB chargers.
• USB-C Power Delivery (PD) - The USB-C Power Delivery port intelligently adjusts power output to suit connected devices, making it ideal for smartphones, tablets, USB-C accessories & selected laptops supporting USB-C charging

Smart charging helps optimise charging speed while protecting connected devices.

Simple Installation

This desk power grommet has been designed specifically for standard 80mm desk cut-outs, making installation straightforward for new furniture or refurbishment projects.

Suitable for:

• Office desks
• Meeting room tables
• Boardroom furniture
• Training rooms
• Educational environments
• Home offices
• Reception desks
• Hot desking workstations

Compatible with desktop thicknesses between 8mm and 72mm.

Important Installation Information

• Designed for light-duty office applications only  (max. 5A or 1.1KW) do NOT use for any other purposes.
• Maximum load: 5A (1100W).
• Installation should be carried out by a qualified electrician.
• Do not connect power or data cables until the unit has been installed.
• Disconnect from the mains before servicing or replacing modules.
• Do not dismantle or modify the power module.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: Please could you tell me output wattage for the USB C charging points. Many thanks. Andy

A: I can confirm 45 watts, which is sufficient to charge most laptops and other usb devices

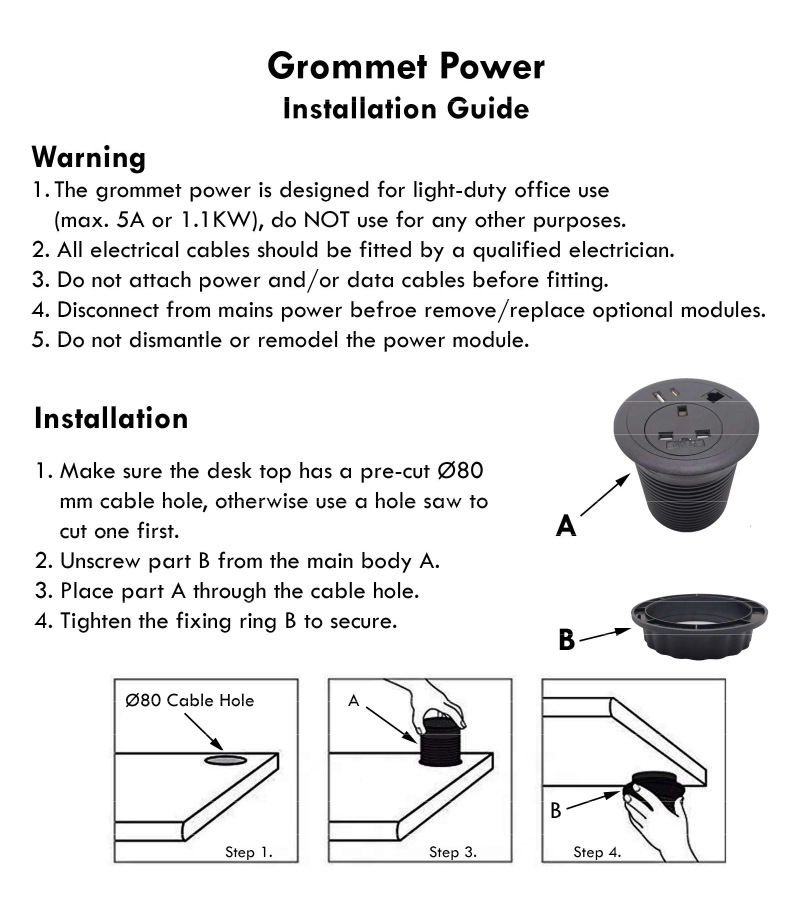

• Installation Guide

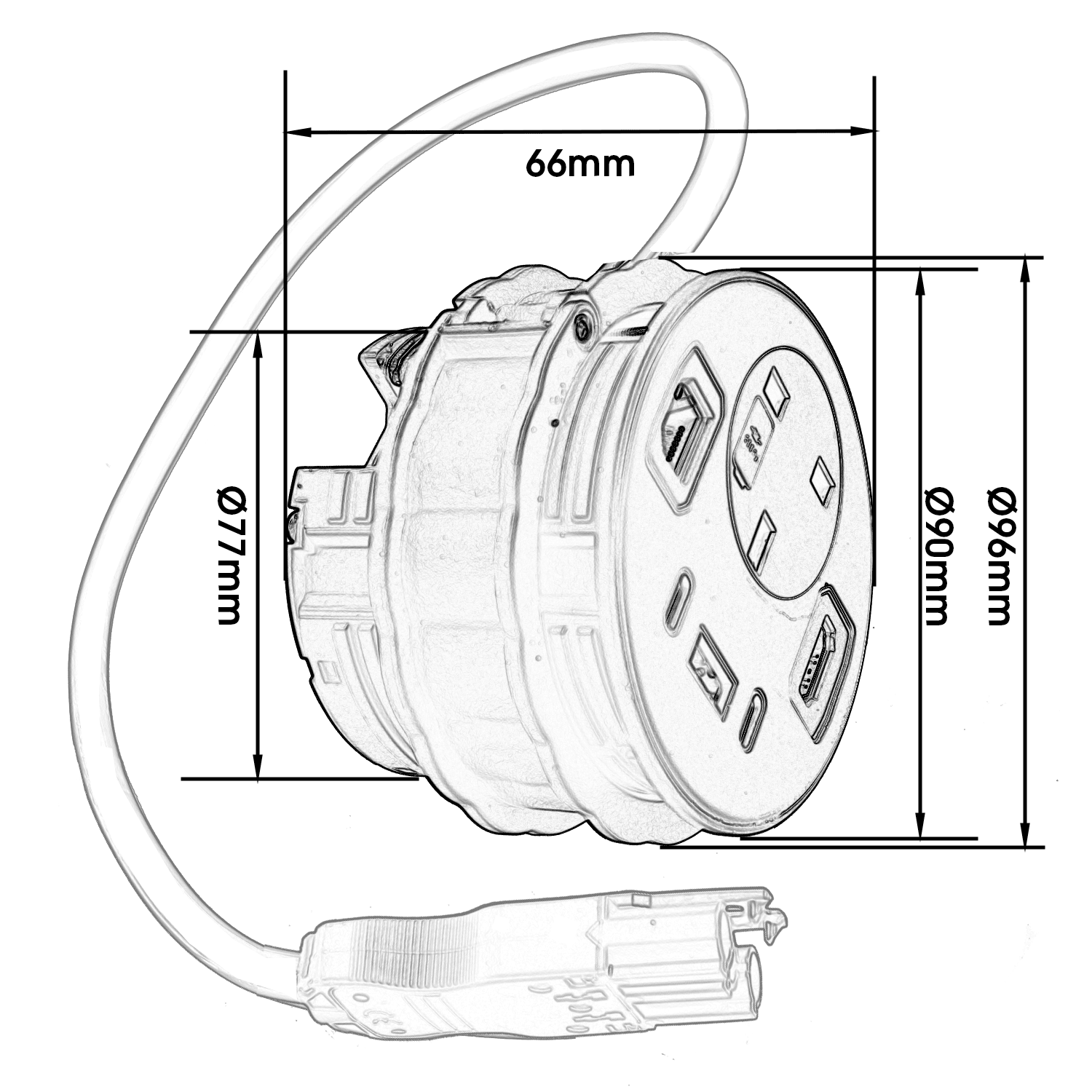

• Dimensional Info
