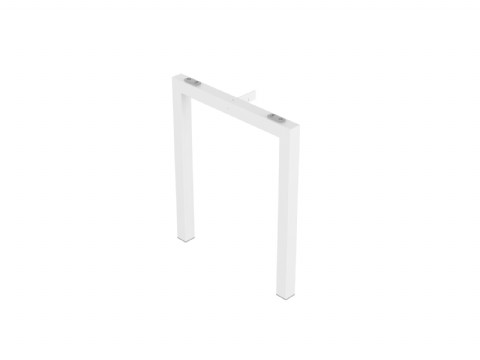

Pair of X3 EVO 1-Piece Welded Legs, 600mm

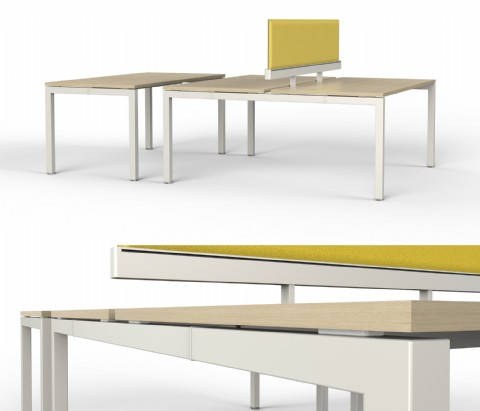

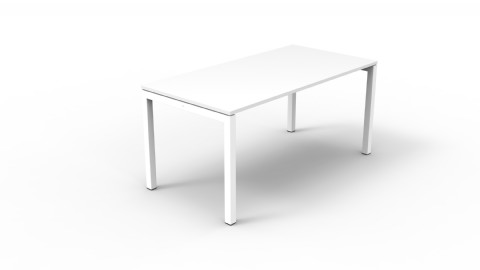

X3 is one of our most popular legs, being used on stand alone single desks but also on back to back bench systems.  We've modified the design to speed up assembly and respect the latest guidelines regarding working height.  We've also introduced a fully welded leg, perfect for single desks as this further speeds up assembly.

We'll slowly be phasing out the old leg but intend to do this over a 12 month period, so can still assist if you're trying to match up furniture on earlier phases.  We've highlighted below, the main reasons for the updating of the system.

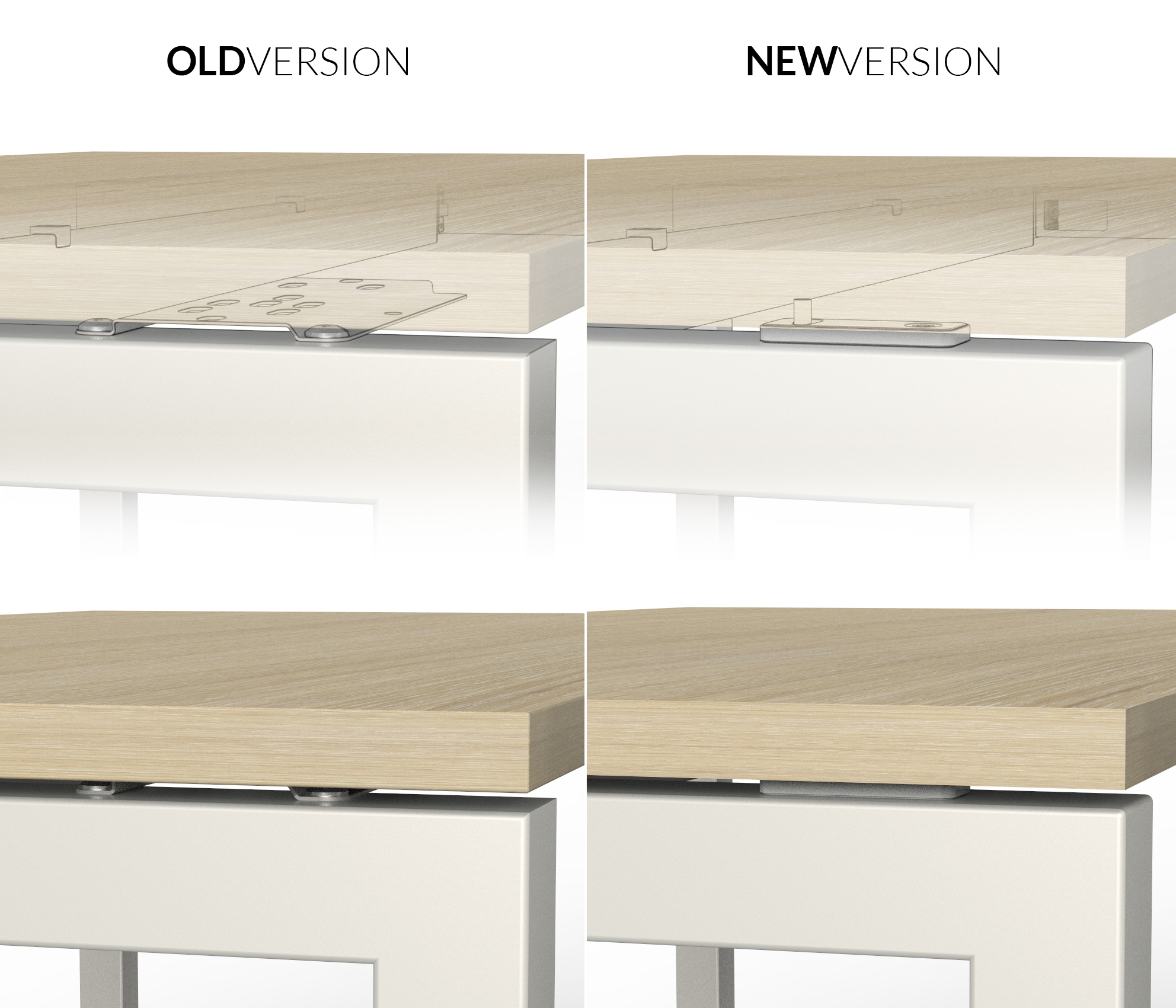

1) Fixation : We've made the fixing to the top more efficient so now instead of having a big metal plate coming off the leg, that can foul cable passaging and electrics, we've just used a small plastic spacer, that sits within the confines of the leg itself.  The top is then fixed throgh that spacer as per the image you'll find within the Technical Data tab.  Assembly is quicker also, as instead of having 2 screws to fix, there is only 1.  The gap between top and leg will remain 6 mm meaning visually there should be no difference.  The old metal plates are still used but only with intermediate legs.

2) Height : In line with new regulations (BS EN 527-1:2011), we've designed the new X3 Desk Leg to respect these updated guidelines and this new 'EVO' leg is 722mm from under the top, as opposed to the old X3 leg which is 695mm from under top.  The leg still retains a tolerance of 20mm, meaning our leg accommodates 720 to 760mm.  The old leg still complies but you need to use a minimum 25mm thick top to reach 720mm (695 + 25mm)

3) Beam : to keep the system competetive the beam size has been reduced from 60x15 to 45x15 beam, enabling us to retain a competetive edge.

4) Foot : We changed the plastic foot from the chunky Grey one, to a nicer more streamlined Black foot, that is a much slimmer profile so therefore less visible.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

• X3 'EVO' change
• Material & Paint Information Sheet
• K3 Configurations

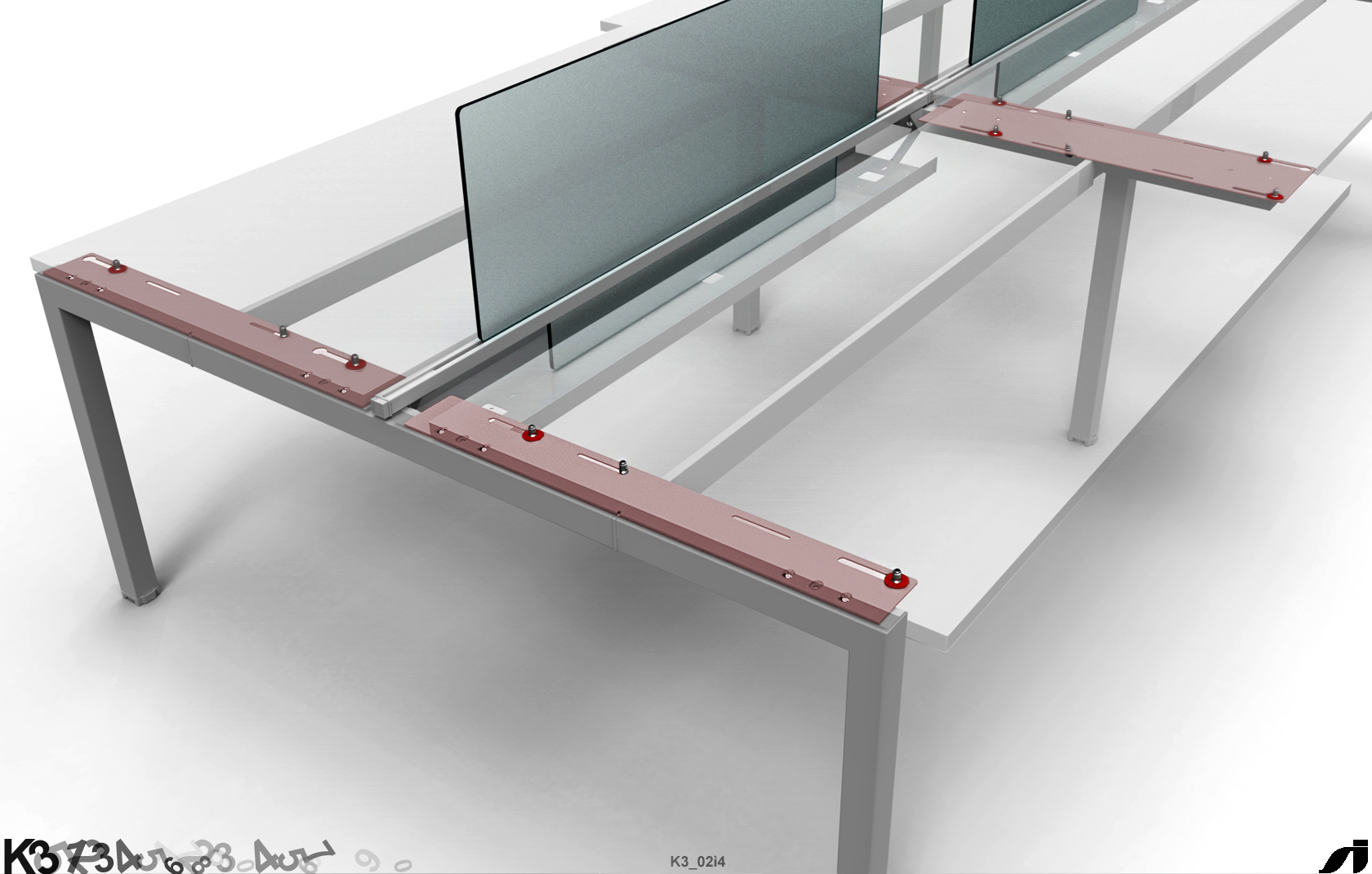

• K3 with Sliding Top

 X3 Range Brochure
