WEKA Table Leg Mounts | Adjustable

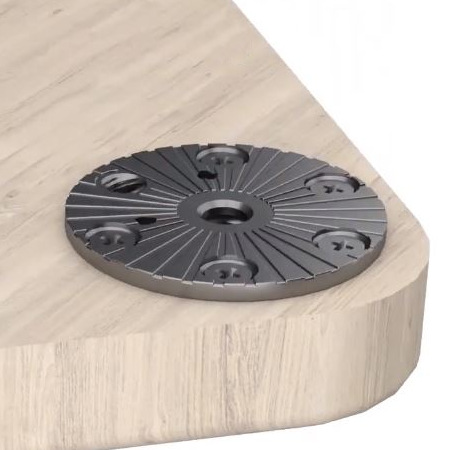

The WEKA table leg mount is an innovative table leg connector with an internal tightening system; enabling users to adjust/rotate and tighten each table leg in any position.

The body of this table leg mounting plate is routered into the underside of the worktop where the leg is to be fitted; the fixing plate is then screw fixed to the worktop to hold the mechanism in place. The fixing plate can either be surface fit (with a 3.5mm protrusion) or can also be routered into the surface for a flush fit.

You can then screw any shape of leg with an M8 thread to the bracket and adjust/rotate  into any position, before tightening the set screw. The internal wedge system subsequently pulls and holds the leg into place.

Subsequently, the WEKA table leg mount is perfect for knock-down furniture such as (but not limited to) desks, tables, coffee tables, cabinets, and stools.

Technical Details:

• Size: Ø60 x 17.5mm
• Screw holes: Ø6mm
• M8 Centre Nut: For M8 Bolt
• Material: Zamak body & steel nut
• Panel Thickness: Min 18mm
• *Screws and bolts must be purchased separately
• Ideal for any shape of leg with an M8 thread
• Gives you the possibility to tighten and adjust your leg in any position
• Pulls and holds the leg into place
• Made for flush or elevated installation
• Tested and certified according to EN 15372

We list all sizes and finishes available as standard for this table leg bracket. However, if you require an alternative that is not listed, get in touch with the sales team today as custom units may be available on request, subject to minimum order quantities and extended lead times.
