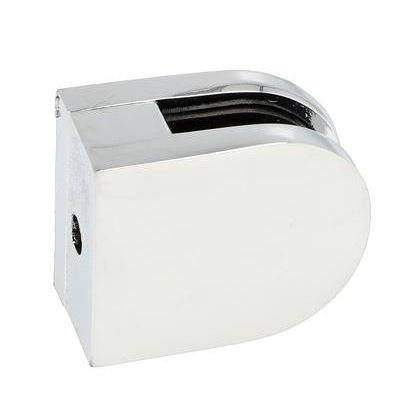

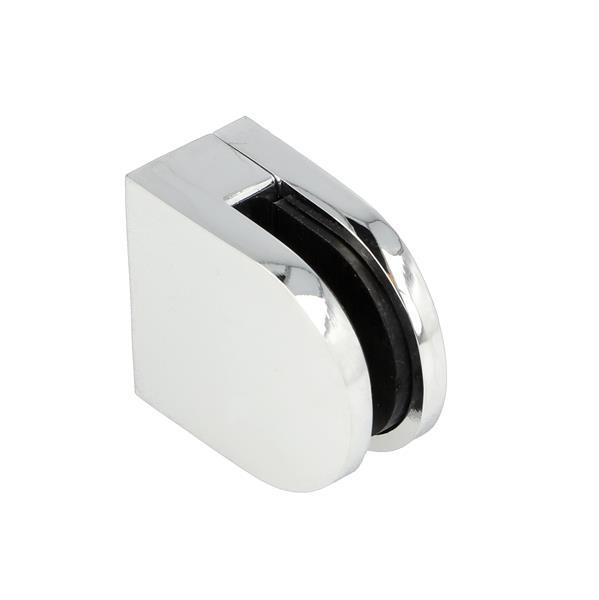

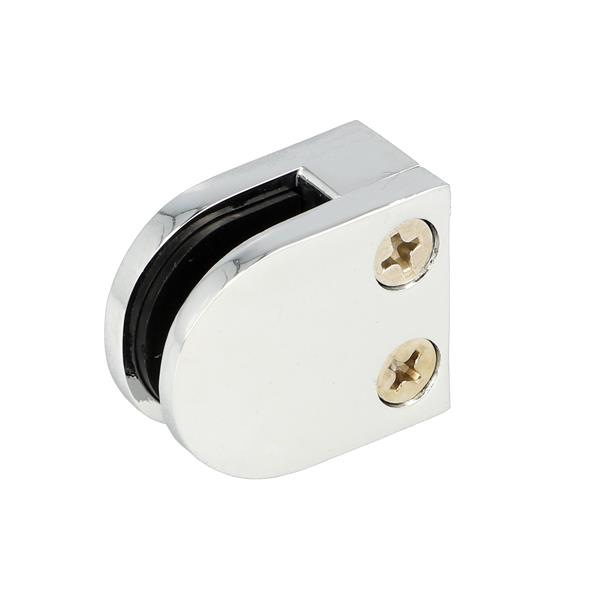

D Shaped Glass Clamp | Small | Chrome

These D Shaped Glass Clamps are flat backed and have been designed to securely fit 4-5mm thick glass panels across a range of indoor applications. Each glass clamp has been fitted with a rubber inlay to cushion the contact area between the bracket jaw and the glass panel.

Manufactured from Zamak and stylishly finished in Chrome, these D shaped glass clamps produce an elegant yet structurally sound fitting that is suitable for glass balustrades/glass banisters, glass balconies or glass railings. They can also be used to surface mount acrylic and glass screens to desk tops.

D Shaped Glass Clamps are particularly common on glass balustrade stairs in both residential and commercial properties as the glass panels allow for light to pass through; creating a brighter and more spacious environment.

Another benefit of using staircase glass clamps for glass balustrades (over fitted handrails / banisters) is that they allow for flexibility, and so the glass can be removed or replaced as required.

Technical details:

• For Glass Panels: 4-5mm thick
• Material: Zamak
• Finish: Chrome Plated (easy to clean)
• Glass Clamp Jaw: Fitted with rubber inlays
• Flat backed: For flat surfaces
• Suitable for: Indoor use. Not suitable for outdoor use or humid environments
• Glass panel: Secured & tightened with threaded screws
• Screwdriver required: Cross-head / Philips screwdriver
• Not included: Screwdriver, mounting screws, plastic plugs

For full dimensions, please see the 'Technical Data' tab.

*Please note: These fittings are designed for use with glass that has been tempered to withstand compression.

We show standard finishes where possible. However, custom colours & finishes may be available on request, subject to MOQ’s and extended lead times. Contact us for more information.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

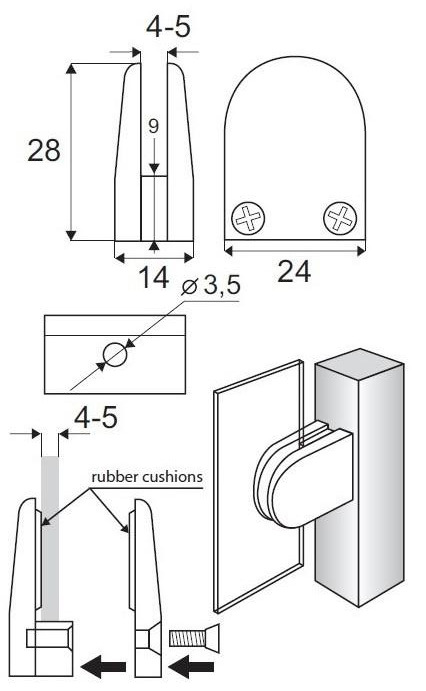

• Dimensional Drawing
