Two Piece Dowel Connector

This two piece dowel connector is made from Nylon and provides a concealed fastening system; designed to securely connect wooden panels together without the use of nails or screws.

The connection system consists of a male and female snap fitting which each have ribbed cores to securely hold them in place. The 2 components then slide together and lock into place using a tapered prong. The female component expands when the male pin is inserted, which also helps to secure the fitting.

Dowel connectors are used across a wide range of industries and are particularly common within the bedding, construction and fabrication industries.

Technical Details:

• Bore: Ø10mm
• Material: Nylon
• 2 piece jointing system: Male & Female components (included)
• Colour: White
• Load capacity per set: 9kg

We list this part in white only as standard. However, if you require an alternative colour, get in touch with the sales team today as custom colours may be available on request, subject to minimum order quantities and extended lead times.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

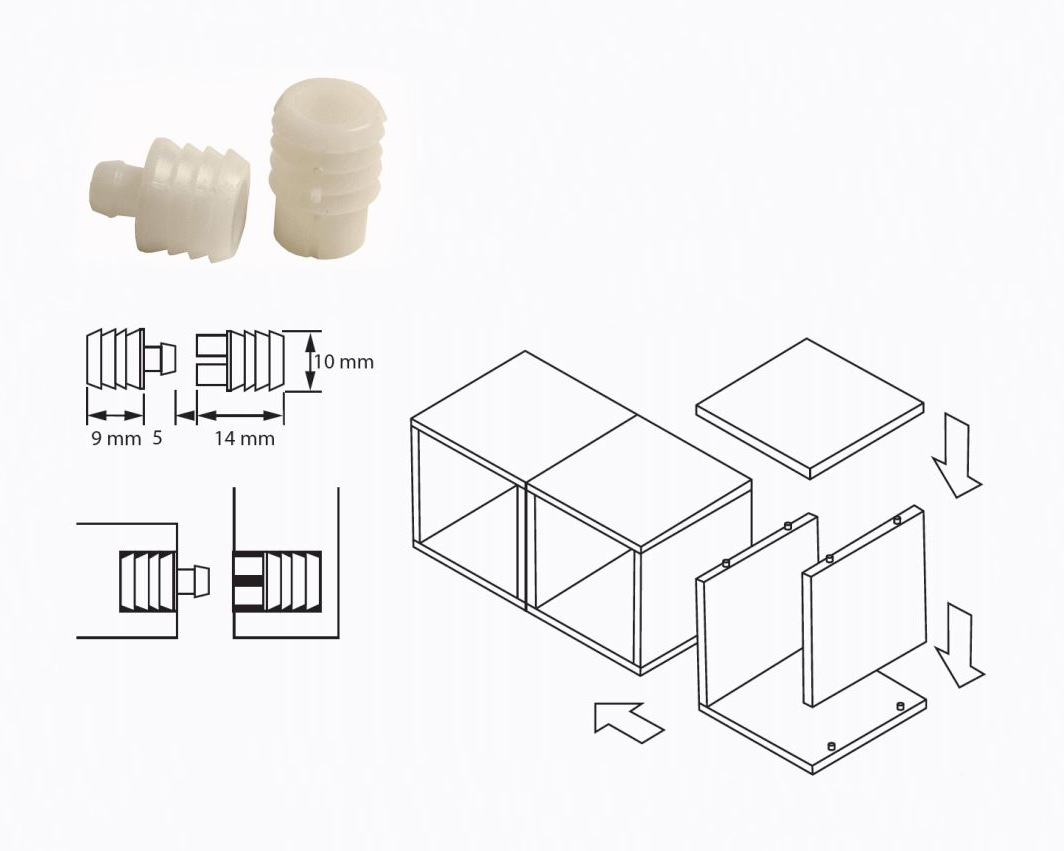

• Dimensional Drawing
