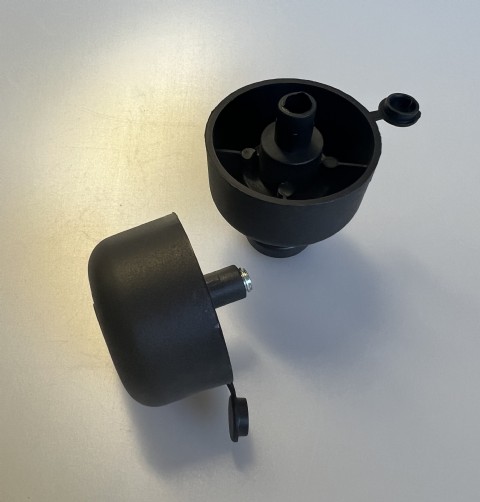

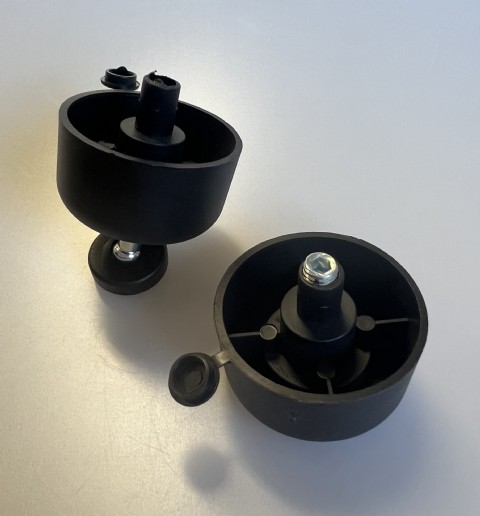

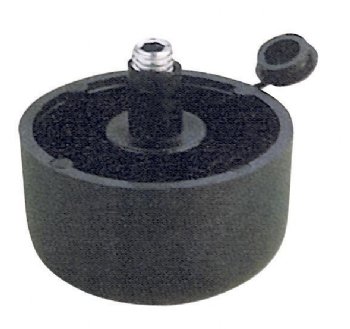

27-36mm Hi Adjustable Glide x 50mm Dia. + Foot

You would push this glide into a cabinet with a 10mm hole on the underside and then the adjustable foot protrudes through the 10mm boss into the base of the furniture, meaning you can access the allen key drive on the top of the thread, to adjust height from above.  The Foot is a Tilt Foot, so will pivot to contend with uneven floors or angles.

A range of push in glides which are designed for going on the bases of anything from cupboards, wooden carcasses, Sofas & Much more! This particular range has an integral plastic cover cap, to mask the hole required to utilise the aerial adjustment facility.

Critical Dims

Base/Cup Diameter - 50mm Round
Glide Base Diameter - 25mm Round
Adjustment Range - 27 to 36mm
Knock In Bore x Height - 10 x 13mm
Aerial Adjustment via - M4 Allen Key

Within the range you'll have the option of Interference Fit Spigots, Friction Fit Metal Pins & even Glides with an adjustable option - but if you haven't seen exactly what you want then just let us know & we'll try to help if we can.
