150mm High x 40mm Square Metal Furniture Glide

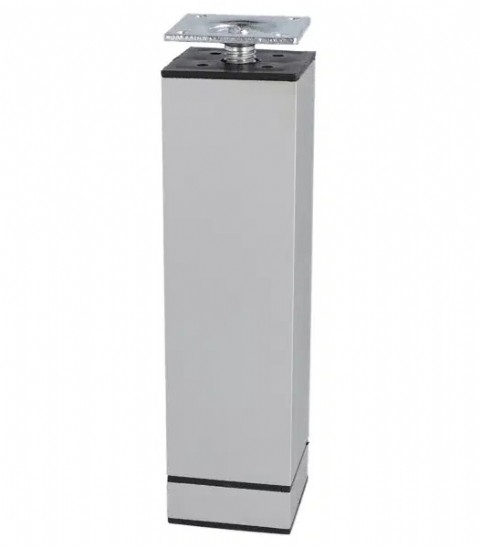

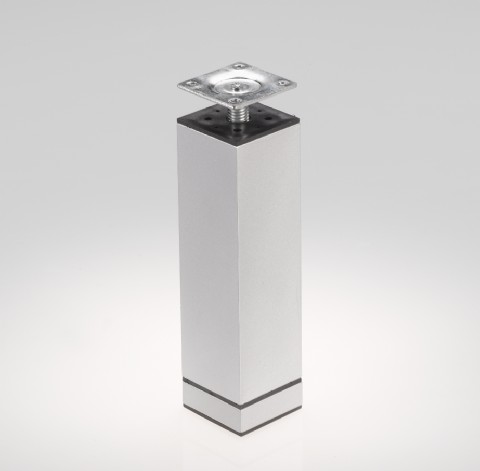

A 40mm square versatile metal furniture glides, which is available in 3 different heights which you can screw straight to the underside of cabinets, fuurniture and beds, thanks to the top fixing plate. The Glide itself is a painted Silver Aluminium, with a plastic insert in the top, housing the metal fixing plate.

The metal fixing plate is made from 2mm bright zinc plated steel and comes pre-installed. The 4 screw holes are centred approximately 10mm less, than the external dimension of the plate. The total height of this glide from base to fixing plate, is 58mm.

Key information:

• Sleek looking furniture glides
• Wide range of sizes
• Two-Tone contemporary design
• Raises furniture off the floor
• Designed primarily for indoor use but can be used outside but not UV stabilised as standard

Technical Information:

• Glide Profile: Square
• Glide Size: 40x40mm
• Glide Height: 150mm
• Fixing Plate Dims: 39x39mm footprint
• Fixing Plate Holes: 29x29mm
• Plate Thickness: 2mm

Suitable for:

• Furniture Cabinets
• Sofas and Upholstery
• Shopfitting and POS
• Display Stands
• Lockers
• Washrooms
• Beds

There's a range of different heights, styles and profiles, including a bright chrome finish available to order with some models but if you don't see the exact one you're looking for then let us know and we'll see if we can track it down for you.

We have a wide range of Glides so if this one isn't quite right for your application, then maybe you'll find the right Glide in our Screw In Glides section or if you're you want Push In or Nail In Glides, or even accessories such as Anti Slip Pads or Felt Pads, you can view the complete range of Glides here.

   Why not submit your own review?

Submitted by Gerald Smith (11/10/2023)
Pleased with my order from you thank you

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	5.0 / 5

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: I've just received the 40mm square x 150mm high furniture raisers. What is the weight limit and can they be used for beds?

A: I've spoken to the factory and whilst these parts aren't load rated as such, they have been designed with a load per leg of 25kg approx. So that would probably be a bit optimistic for a bed to be fair. However, If you enter this code into the product finder on our website, these are specifically designed for beds, SKU Reference : F-01021-32008B Hope that helps BPF WebSales

Q: Are these legs adjustable in height? I have an uneven floor and want to level the unit. Thanks

A: No, they're not an adjustable glide as such - although you do have a small degree of fine adjustment, as the metal fixing plate has a thread on it. But we do specific adjustable glides if you need any more adjustment than that!

Q: Would these be suitable for a three seater leather sofa it's too low l need height at least 5 inches feet at present are 2inches

A: Hello, 150mm actually converts to 5.9" inches and so based on your required size, this looks to be suitable. I hope this helps. Kind regards, BPF Team

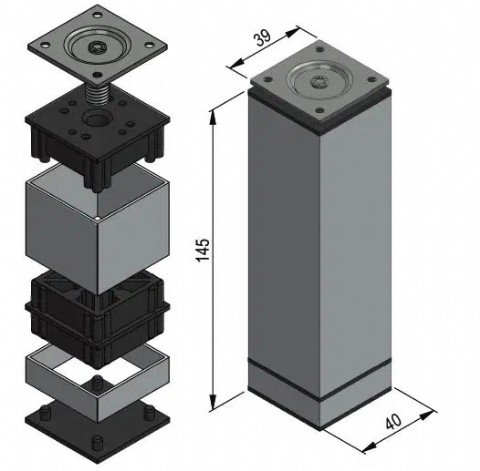

• Technical Drawing
