16mm Insert x 1-1.5mm / 25mm Base - Felt

These Tilt Glides have a robust construction and are made in a combination of Nylon and Polypropylene with a ribbed design to suit a range of wall thicknesses.  Sizes cover a wide range of Tube Diameters, and this particular style has a factory fitted felt pad (approx felt thickness 3mm).

Designed to knock into the Ends of Tube, they come fully assembled and are recommended for angles of up to 8 Degrees comfortably, so they're perfect for feet on Angled Chair Legs or where you're dealing with uneven floors! The Ribbed Design means they have a solid fit through a range of Tube Thicknesses whilst the felt pad will aid noise dampening and floor protection.

As with all our inserts, they're listed just as you would buy the tube so it's Outside Dimensions x Wall Thickness / Gauge Size - or if you're trying to match up to a sample, the key dimension is the head size.  The head is designed to sit flush with the outside of the tube whilst the shank has Ribbed Fins for an interference fit in both metric and imperial sizes.

We show standard colours and finishes where possible but these are constantly changing so if you require a colour not listed in the drop-down, speak to us as we may well have added it since.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

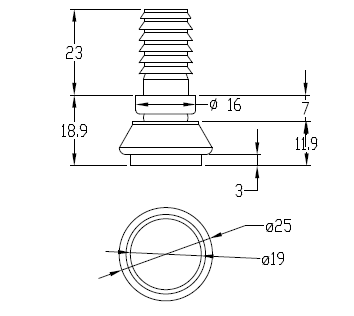

• Technical Drawing

 Tube Fittings Buying Guide
