450x120mm Rebated Desk Flap & Table Access Plate

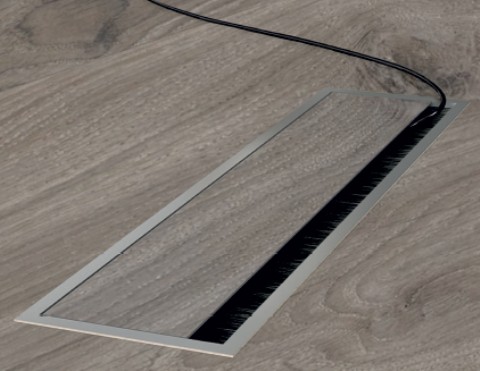

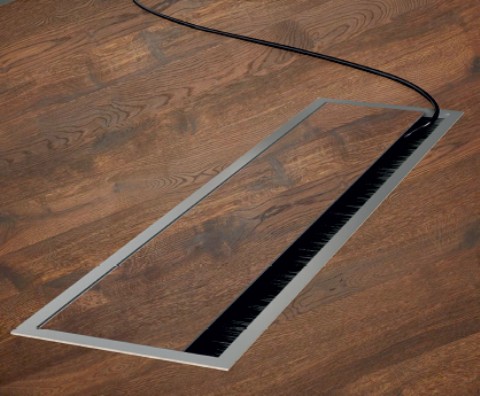

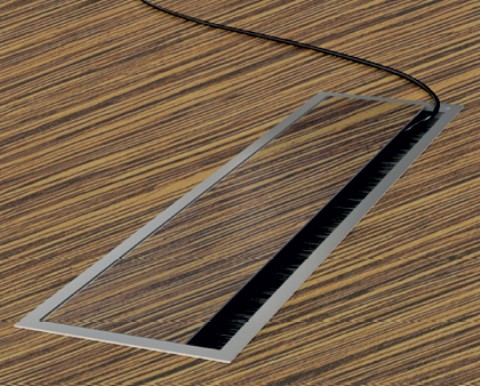

A modern twist to a standard access plate, these 450x120mm units have a rebate in the top, which gives you a recess to accept a 3mm deep insert to match (or contrast) surrounding surfaces.  Typically that would be a laminate infill but you have the ability to add what you want but for it to remain flush, you'll need to respect that 3mm depth.

We can't supply these infill panels, as we're assuming furniture manufacturers will simply use the same veneer or laminate, to match the rest of the top but we do offer a similar component, but with a factory fitted glass infill panel.

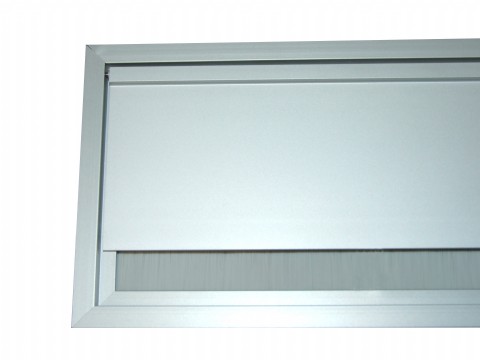

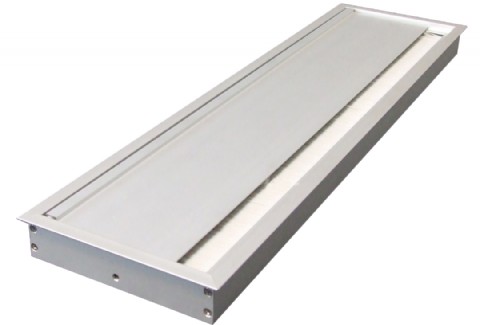

We list this range by the Top Profile Dimensions (as opposed to the approximate cut out hole size) and this particular model has a dimension of 450x120mm rectangular, with a smooth close plate or flap, designed to neatly conceal cable access openings and bringing power and data networks direcly to you working space.

Ideal for office desks, boardroom tables, educational furniture, bespoke joinery, exhibition and retail applications, this desk cable cover plate simply drops into a routed 441x114mm rectangular cut-out, providing a tidy and unobtrusive solution, allowing end users or installers to access electrical modules.

We have a range of associated products to compliment this item including Under Desk Cable Trays, Wire Management Snakes and Trunking and there are also variations of this item, which allow you to add inserts, to match your wooden top finish, check out the links below for details.

Technical Specifications

• Overall Dimensions: 450 x 120 x 25mm
• Recommended Cut-Out: Approx. 441 x 114mm (see Technical Data tab)
• Opening Type: Brush-lined cable access
• Installation: Drop-in fit after routing rectangular cut-out
• Suitable For: Office desks, conference tables, meeting tables, reception desks and bespoke furniture
• Compatible With: Desk power modules, USB chargers, power sockets and cable management accessories
• Finishes: Standard colours available with additional finishes on request

Useful Accessories & Related Products

• Under Desk Cable Trays & Wire Baskets
• Under Desk Power Modules & Leads
• Cable Snakes & Floor Trunking
• Top Side Power Solutions
• Range of Access Plates you can add Wood Infill Panels to

Key Features

• Premium 450x120mm Smooth Close Access Plate
• Integrated brush-lined cable access
• Provides a neat, professional cable management solution
• Suitable for power, data and AV cable routing
• Quick and easy drop-in installation
• Compatible with desk power modules and connectivity solutions
• Ideal for commercial office furniture and bespoke joinery
• Alternative depths and selected soft-close models available
• Additional colours and finishes available upon request

Important Installation Information

Hole cut-out dimensions are provided in good faith using the latest available technical information and we'd always recommend you study the downloads included with the Technical Data tab, to ensure you're accessing the latest data.

It's also advisable to wait until the product has been received and is suitable for your intended application, before machining your worktop, as manufacturing tolerances may apply.
