800x1400mm X20 Height Adjustable Sit-Stand Desk Frame

We have a huge range of Desks and Wooden Tops but sell them separately because a lot of our trade customers are Office Furniture manufacturers and Fit Out companies, who have their own Tops lined up.  If you need a Top for this Desk, then buying from us would mean we'll template it specifically to suit your desk so you'll have proper fixing holes and metal insert nuts, which will result in hassle free assembly!

In addition, if you add any Desk Grommets, In-Desk Power units or Brush Lined Access Flaps to your order - then we'll cut holes free of charge at the mill, to accommodate whatever you've bought (as long as it's from us of course).  So Click here to see our range of Wooden Desk & Table Tops or scroll further down the page, where you'll usually find other products that woudl work with this desk.

Complete Sit/Stand Desk Frame, including all the required components & connections for an electronically powered height adjustable desk frame. All our height adjustable desk frames utilise the industry renowned LINAK mechanisms and have a compact and clean design which provides optimal ergonomics in applications for office and industrial markets.

These particular desks have a compact 3 part inline column which feature a 'PIEZO' integrated sensor. PIEZO (collision protection) minimises the risk for damages on a desk caused by collision with an obstacle. There are also keyhole fixation points on the top plate to facilitate the use of sliding tops.

The DL12 system is controlled by a DESKLINE CBD6S control box and this new generation of control box maintains LINAK’s hallmarks of high quality systems, superb performance, pleasant sound and plug and play. The Controller supplied as standard with our Desk Kits is the LINAK DPF1K but you always have the option of replacing this with a different controller from the range, should you wish to extra features, other than the standard up/down.

Key Features :

• 5 Year Warranty
• Quality components featuring Linak Motorised Components
• Weight loading system capable of lifting 140kgs evenly distributed
• Height range i.e from 660mm to 1250mm so true sit stand & low install 518mm and stroke 660mm of the product
• Various types of controls available including Desk Control - operated from a lap top
• Anti-Collision Protection System

It is the most compact and lightweight control box in the DESKLINE series and it keeps the same width as DESKLINE columns with motor housings ensuring that it fits in a desktop frame, and it is only 38mm high. From a design perspective, the control box is more intuitive and it has plugs for connection of the legs in each end of the box and it is equipped with cable grooves at the bottom making it easy to lead and hide motor cables from one side of the desk to the other.

This Kit Includes:

1 x DESKLINE CBD6S Control Box
1 x DPF1K Controller
2 x Lifting Columns
1 x Bracket for desk top fixation of controller
2 x Motor Cables (1m Long)
1 x Power Cable
2 x 1234mm Connection Beams
1 x Set of Feet & top connection plates

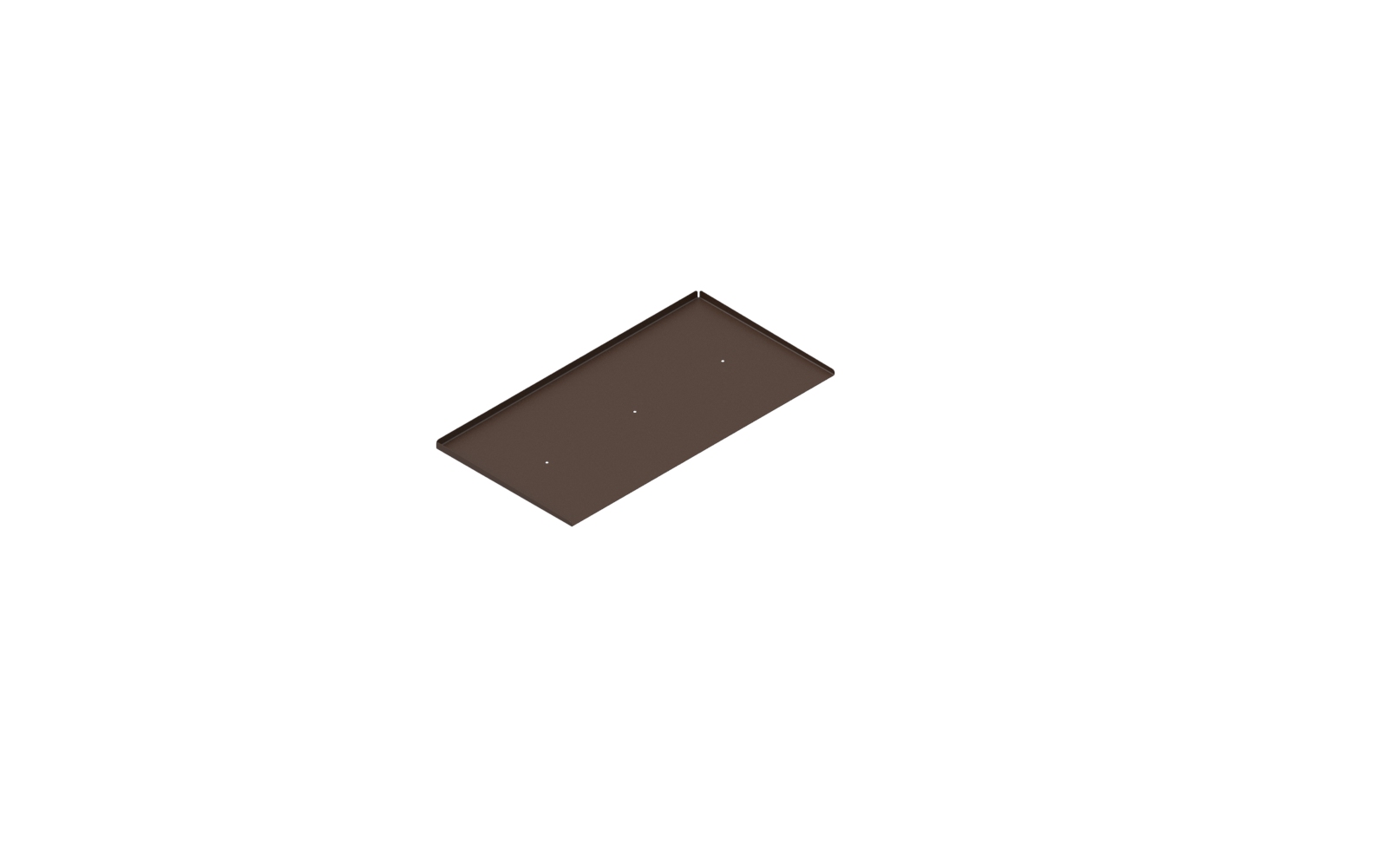

1 x 600mm under desk tray for Cables & Control box

So all you need to complete your desk is a top and we have a range of top manufactured and templated specifically to suit this desk frame, so you can find these within the cross-selling options further down the page. If it transpires you're not looking for a complete desk and already have tops, then the desk frame and lots of related components are all available through our subsidiary company BPF.
