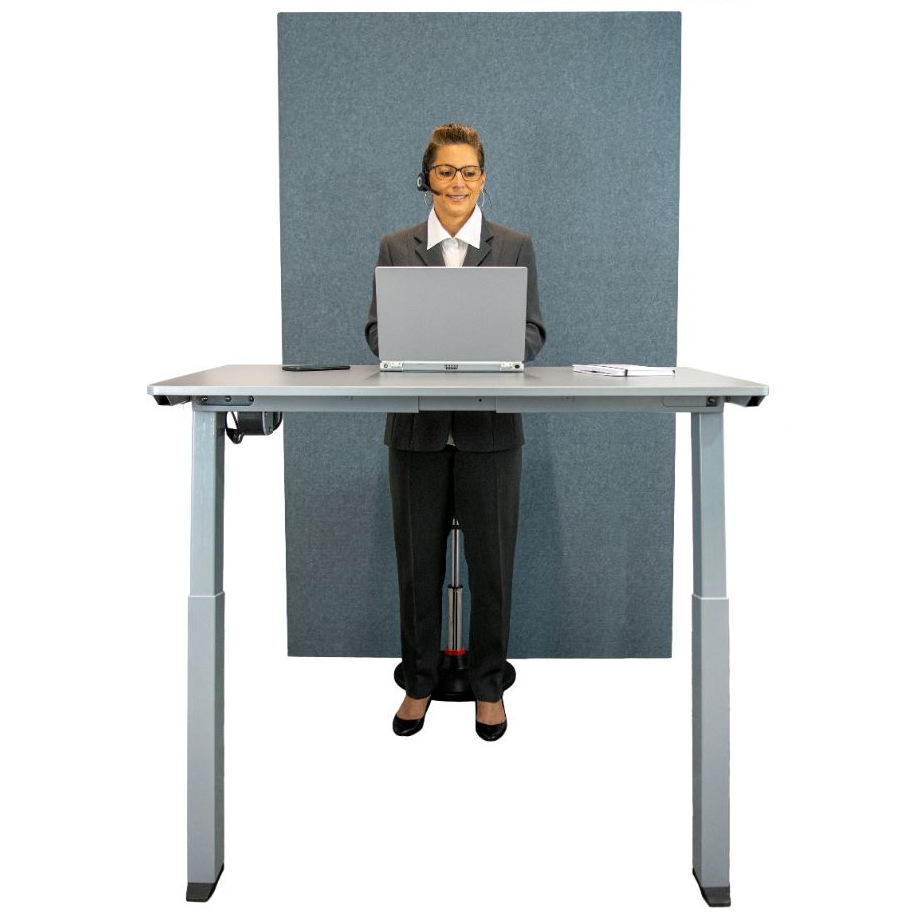

1100-1800mm Sit Stand Desk Frame

We have a huge range of Desks and Wooden Tops but sell them separately because a lot of our trade customers are Office Furniture manufacturers and Fit Out companies, who have their own Tops lined up.  If you need a Top for this Desk, then buying from us would mean we'll template it specifically to suit your desk so you'll have proper fixing holes and metal insert nuts, which will result in hassle free assembly!

In addition, if you add any Desk Grommets, In-Desk Power units or Brush Lined Access Flaps to your order - then we'll cut holes free of charge at the mill, to accommodate whatever you've bought (as long as it's from us of course).  So Click here to see our range of Wooden Desk & Table Tops or scroll further down the page, where you'll usually find other products that woudl work with this desk.

This height adjustable desk frame has an ergonomic design that allows users to alternate between sitting and standing throughout the day.

Using an electronically operated mechanism, this sit stand desk frame provides a smooth and effortless height adjustment from 695 – 1145mm which allows you to set your optimal working height with ease. The frame also has a telescopic beam with a width ranging from 1100 – 1800mm, allowing for a desktop of 1200 - 2000mm (leaving 100mm on each side).

Electronic Height Adjustment

The height adjustment is operated electronically using the handset provided. This handset has ‘up’ and ‘down’ function keys, allowing you to easily adjust the tabletop to your preferred height.

The handset also has 4 memory keys which allow you to find and save up to 4 different heights. Once you’ve saved your desired height, you can then simply press the numbered key and the desk will automatically adjust to the saved position.

There is also the added feature of a USB charging point at the rear of handset, so you can easily charge your phone and other USB compatible devices.

*Please be aware that while this desk frame is supplied with a European plug as standard, we will also include an EU to UK plug adaptor with each purchase.

Sit-Stand Desks

It is recommended that you take frequent breaks from sitting as doing so for prolonged periods of time can be a risk to your health. However, utilizing the sit stand option of height adjustable desks allows you to break up prolonged hours of sitting and alternate between sitting and standing.

Using the sit stand option can also help to improve circulation, concentration and productivity, as well as reducing fatigue and strain on your neck and back.

Height Adjustable Stools

We also offer an elegant range of height adjustable stools which have been specifically designed for use with sit stand desks.

These sit stand stools can be adjusted to accommodate for both sitting and standing, helping to promote upright posture by engaging your core and easing strain on your lower back. Perfect as an adjustable height chair in offices or as a height adjustable lab stool.

To view the range of height adjustable stools, click HERE.

Technical Details / Specifications

• Frame width: 1100 – 1800mm
• Frame footprint: 680mm
• For top sizes: 1200 - 2000mm x 800mm (700 - 1000mm depth is possible, but 800mm is recommended for stability)
• Stroke: 695 – 1145mm
• Handset with integrated USB-charging function
• 4 memory keys
• Anti-collision function
• Dynamic load capacity: 100 KG max.
• Static load capacity: 120 KG max.
• Speed: 32 mm/s
• Input Voltage: 100-240V, 50/60 Hz
• Duty cycle: 10% max 2min on 18 min off
• 2 Motors / 2 segments
• Display: digital
• Automatic power off, low energy consumption
• Built-in load limit switch

*Please note: This desk frame is supplied with a European plug as standard, however we will include an EU to UK plug adaptor with each purchase.

This kit is for the height adjustable sit-stand desk frame only, which has a stroke of 695 to 1145mm and does not include the top. However, a model with a stroke of 610 to 1270mm is available on request, and so please contact sales for more information. We also offer a wide range of made to order wooden desk tops, which you can view online HERE.

We list the options and colours available as standard. However, if you require a colour that is not listed, get in touch with the sales team today as custom units may be available on request, subject to minimum order quantities and extended lead times.
