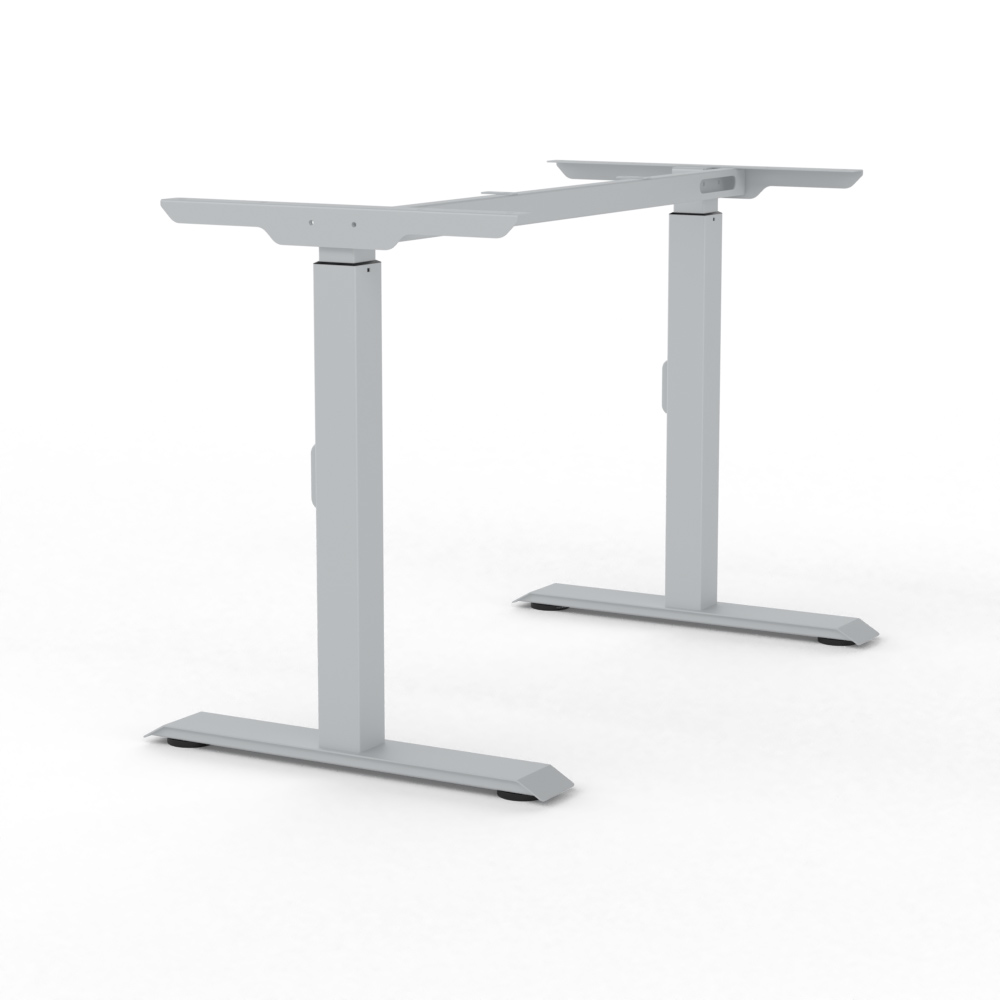

This height adjustable desk frame has an ergonomic design that allows users to alternate between sitting and standing throughout the day.

Using a manually operated mechanism, this sit stand desk frame offers quick and easy height adjustment from 670-900mm, allowing you to set your optimal working height with ease. The frame also has a telescopic beam with a width ranging from 1070 – 1880mm, allowing for a desktop of 800 x 1100-2000mm. However, as the beam is telescopic, any size in between 1100 and 2000mm is also possible.

Manual Height Adjustment

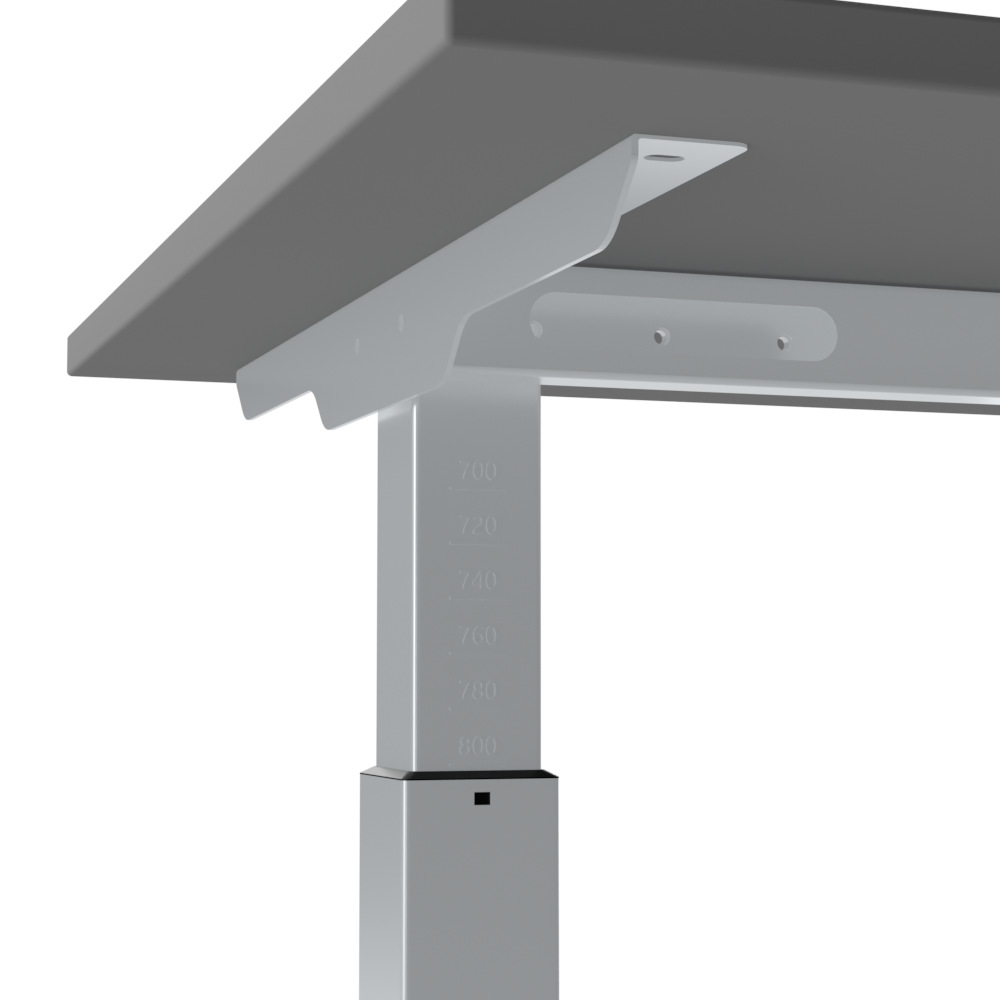

The height adjustment is operated manually simply by lifting/lowering the telescopic leg(s) to the required height.

After adapting to the correct height, the adjustment protection/safety lock must be tightened using two grub screws in each leg (using an allen key). This will secure it firmly in place and prevent any accidental height adjustment or movement.

It is important that the adjustment protection/safety lock is secured after each height adjustment, especially under high loads.

Sit-Stand Desks | Health Benefits

It is recommended that you take short breaks from sitting throughout the day, as sitting in the same position for prolonged periods of time can be bad for your health.

Sit stand desks, however, allow you to vary your position throughout the day and alternate between sitting and standing, which can also help to prevent and alleviate neck and lower back pain.

Studies have also shown that utilizing the sit-stand feature and alternating between sitting and standing can even improve circulation, concentration, productivity and creativity.

Height Adjustable Stools

We offer an elegant range of height adjustable stools which have been specifically designed for use with sit stand desks.

These sit stand stools can be adjusted to accommodate for both sitting and standing, helping to promote upright posture by engaging your core and easing strain on your lower back. Perfect as an adjustable height chair in offices or as a height adjustable lab stool.

To view the range of height adjustable stools, click HERE.

Technical Details / Specifications

• Frame width: 1070 - 1880mm
• Frame footprint: 680mm
• For top size: 800 x 1100-2000mm (any size between 1100 and 2000mm is also possible)
• Stroke: 670 – 900mm
• Load Capacity: Up to 80kg
• Locking function against inadvertent adjustment / child protection

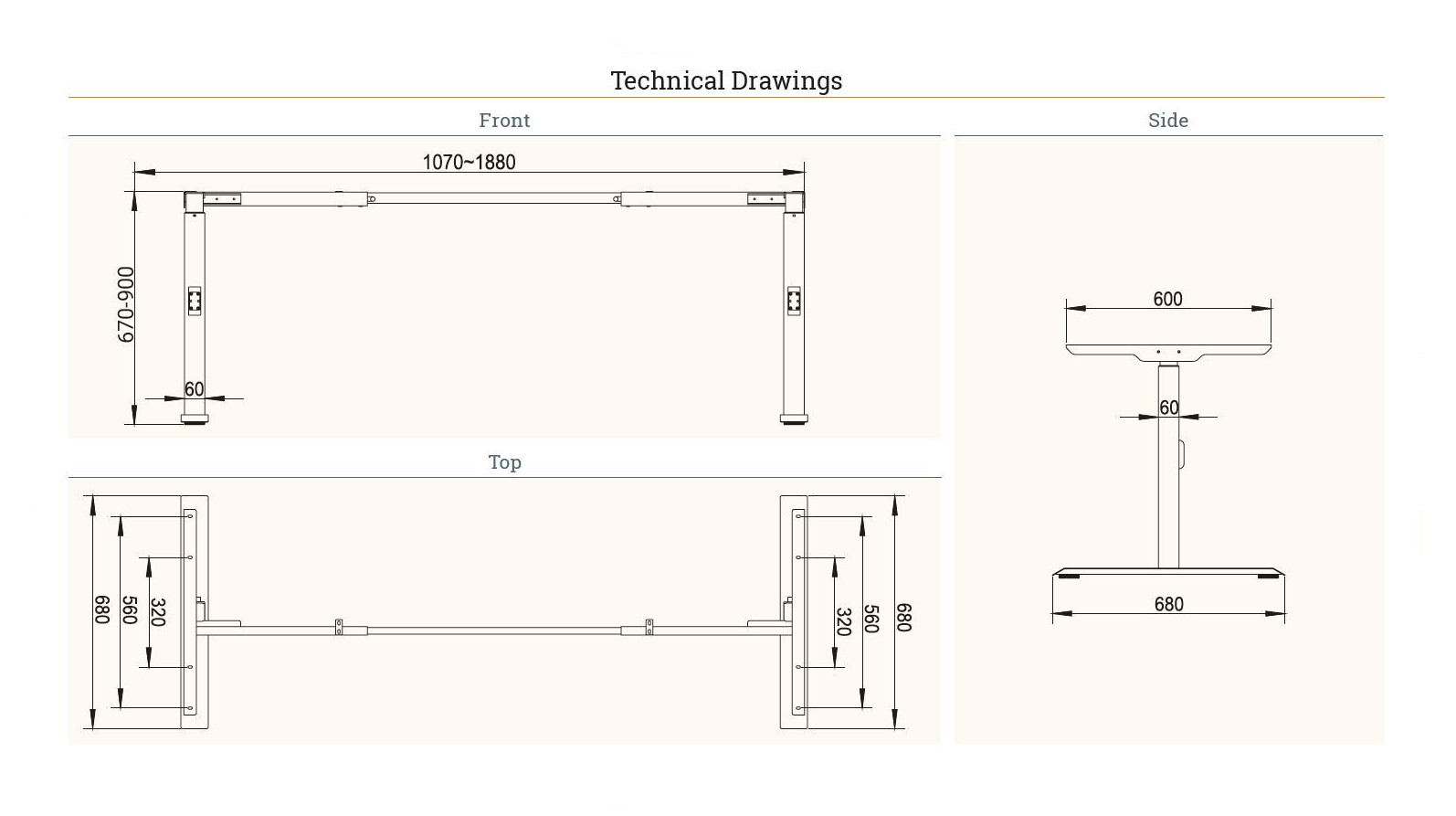

For full dimensions, please view the ‘Technical Data’ tab.

This kit is for the height adjustable sit-stand desk frame only and does not include the top. However, we also offer a wide range of tops which you can view online HERE.

We list the options and finishes that available as standard. However, if you require a finish that is not listed, get in touch with the sales team today as custom units may be available on request, subject to minimum order quantities and extended lead times.
