PHAZE-E Power Socket | 2 Gang, 2 Data, USB A+C Smart Charge

The PHAZE-E Power Socket is a comprehensive desktop power unit developed to accommodate for office appliances; featuring 2 x gang UK power, 2 x RJ45 Cat6A Data, 1 x Smart Charge with USB A and USB C ports. The unit also has resettable 3A thermal fuses which provide extra safety.

The updated Smart Charge on this power module provides USB sockets for both Type-A (the larger, standard USB connection) and Type-C (the emerging standard for many new devices, featuring a smaller, reversible connector socket); meaning all types of devices, old and new, are covered and future proofed. These USBs also utilise the more powerful USB-PD power delivery, which can charge your device up to 70% faster than standard 5W charging.

The all-inclusive design of this power module also helps to keep desktop and worktop areas clear and clutter free by reducing the need for multiple and messy power leads. Subsequently, combined with the power, data and USB charging features, it is perfect for use in offices, home office set ups, libraries, schools and other areas where power, data and USB charging are needed.

PHAZE-E simply mounts onto the desk top / worktop surface horizontally and is secured in place using an easy-to-fit C-clamp, which has a range of 15 - 45mm.

Technical Details:

• 2 x G type sockets (with resettable 3A thermal fuse & individual ON/OFF switches)
• 2 x RJ45 Cat6A Data
• 1 x Smart Charge: A+C Type, PD 3.0 & QC 3.0
• 1 x 500mm lead to 3 Pole Connector (Wieland)
• 1 x 2m Mains Power Lead
• 2 x 2m Data Lead Cat6A Patch Cable
• C-clamp range / desktop thickness: 15-45mm
• Colours: Black or White
• Unit complies with BS5733

This power module is designed so that the leads can be clicked in/out of the back of the unit with ease. We provide these units with 2m leads as standard, however longer leads are available on request for trade quantity orders.

**Custom Configurations to include RJ45 Cat6A, USB 3.0 or HDMI couplers are available on request, subject to MOQs, set up fees and extended lead times. Please contact sales for more information**

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: Is it possible to power a laptop from the USB-C port?

A: Hello. The factory have advised that you can power a laptop from the USB C Charger, however it is rated for 35W and so depending on the laptop it may not be very fast, particularly larger laptops. It is better suited to smaller laptops, phones and tablets. I hope this assists. Kind regards, BPF

Q: What are the dimensions of the device?

A: Hello. We have now added a dimensional drawing for this unit, which can be found under the 'Technical Data' tab on the product page. I hope this assists. Kind regards, BPF

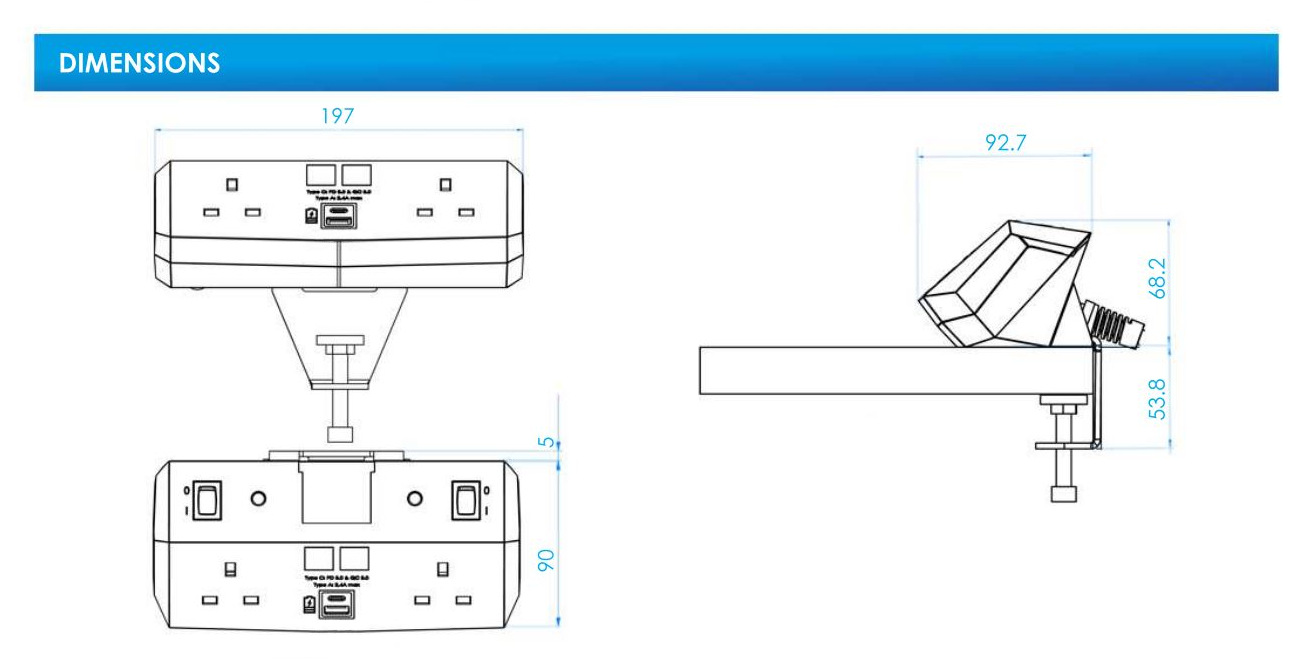

• Dimensional Drawing

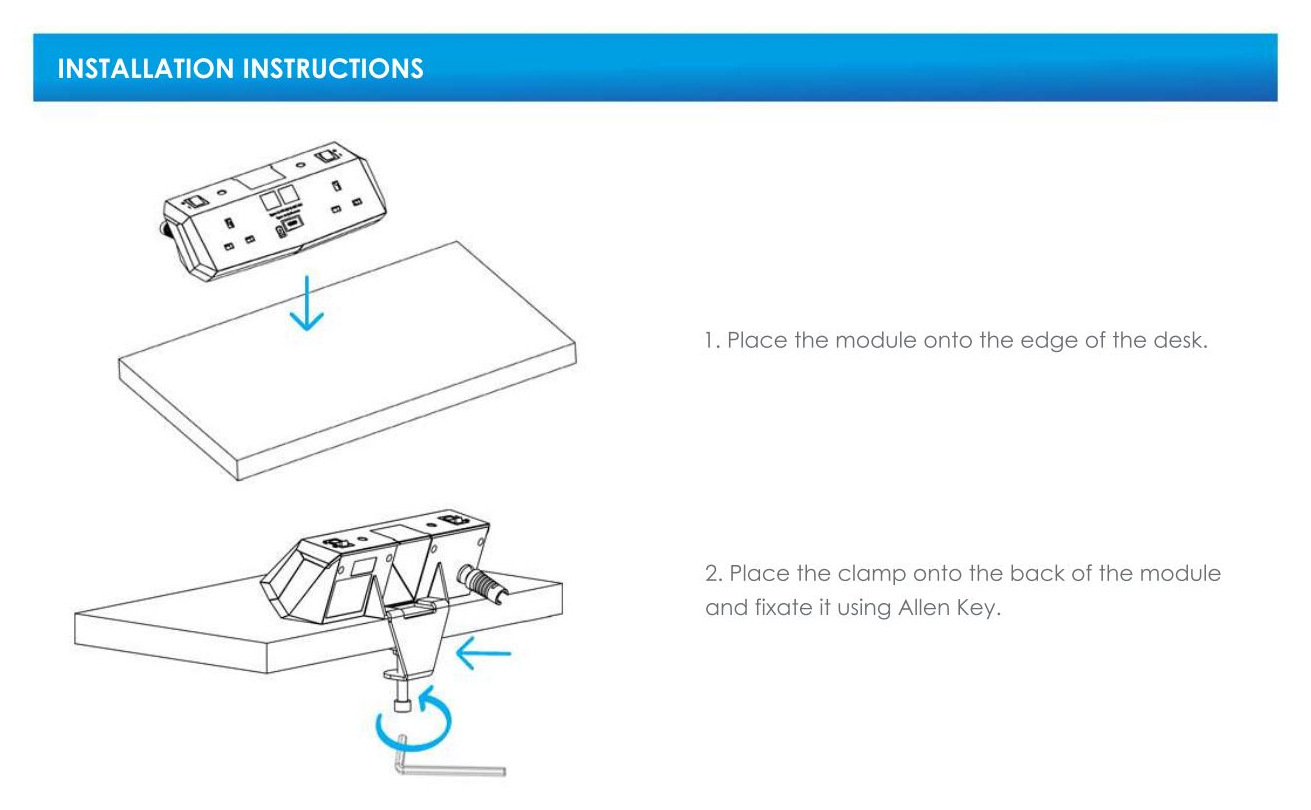

• Fitting Instructions
