V-Dot Ø60mm Module | Wireless Charger

V-Dot is a compact and versatile in desk power module offering a range of power and media outlets from socket type G (UK), USB charging, wireless charging or bluetooth speaker; elegantly finished in Chrome and Stainless steel, Glass Black or Glass White housing.

This stylish power unit is designed for indoor use and can be installed on both flat surfaces as well as padded surfaces, in addition to a wide range of environments, due to it IP20 rating. Perfect for use in offices, throughout the home, libraries, café’s and other areas where power, USB charging, wireless charging or where a speaker is required.

Designed to fit into an industry standard Ø60mm diameter hole, this unit is quick and easy to fit, update or replace pre-existing grommets. It also provides easily accessible in-desk Power without additional cables and wiring, making it particularly suitable for work tops with limited space or where restricted to pre-cut Ø60mm grommet holes.

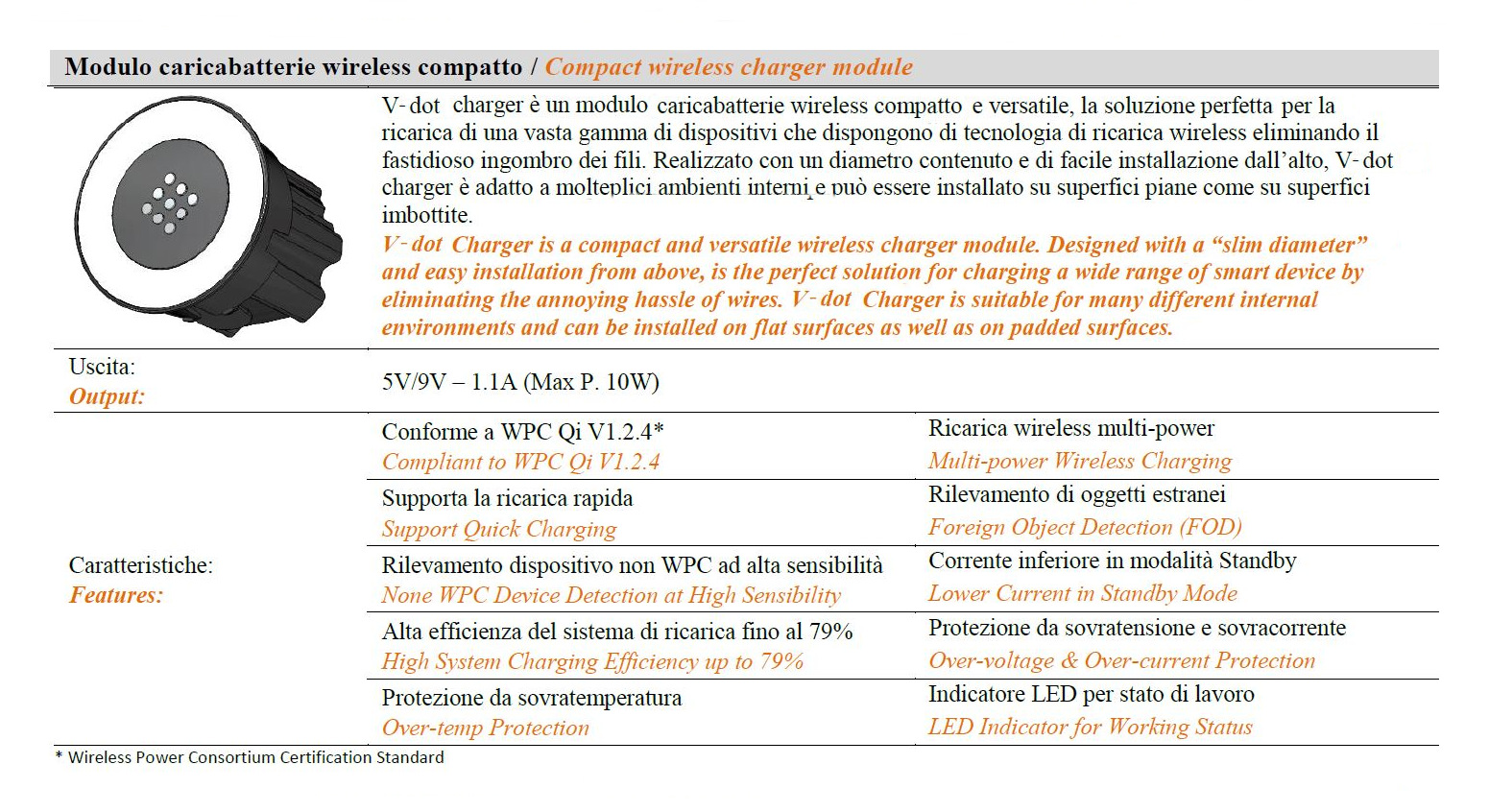

Technical information / Key features:

• 1 x Wireless Charger
• Output: 5V/9V – 1.1A (Max P. 10W)
• Over-Temp Protection
• Supports Quick Charging
• Multi-Power Wireless Charging
• Foreign Object Detection (FOD)
• Lower Current In Standby Mode
• Over-Voltage & Over-Current Protection
• LED Indicator For Working Status
• Fits Standard Ø60mm Dia. Hole
• For Panel Thickness: 5 - 32mm
• 1 x 200mm Lead with GST Connector
• 1 x 2 Metre Mains Lead included (other lengths / plugs available, to order separately)
• IP Rating: IP20
• Ring Finish: Chrome
• Disk Finish: Stainless steel / Glass Black / Glass White
• Operating Environment: Indoor

Important information

1. All electrical cables should be fitted by a qualified electrician.
2. Do not attach power and/or data cables before fitting.
3. Disconnect from mains power before removing / replacing power module.
4. Do not dismantle or remodel the power module.

*Please note: The images are for display purposes only. Configurations vary.

We show standard colours and finishes where possible, but if you require a colour or feature that is not listed, get in touch with the sales team today as custom units may be available on request, subject to minimum order quantities and longer lead times.
