V-Frame III | 3xGang USB A+C 2xData Inset Socket

V-Frame III is designed primarily to be installed in partition walls and worktops and is equally adept, situated in ceilings and in vertical surfaces.  This key feature of V-Frame III, is you can install from above and aesthetically, it has a reduce frame.

Two inserts hide the fastening screws so as to preserve the product’s beauty while keeping it safe to use.

Improvements have been made under the top too: the power cable can be positioned at 90° or at 180° so as to make installation even easier.

There's a wide range of configurations available including Power, USB and CAT6 data.

Key Features

• This configuration comes with 3 x UK Power Sockets, both USB A + C Ports + 2 x RJ45 Data Ports
• 2 Metre UK mains lead to connect to hard wired 200mm GST connector lead + 2x 2 Metre Data Leads
• Choice of 3 standard finishes; Black Zamak, White Zamak or an Aluminimum Zamak finish. A bright chrome finish is available on request, please contact us for more details.
• Overall top profile dimension: 282mm (L) x 62mm x 72mm deep
• Cut out size: L - 272.5mm x 59mm (please the "technical data" tab for a dimensional drawing) ** we always advise the hole is templated when the unit is on site, where possible - to ensure an exact fit **
• European designed and manufactured
• Suitable for 15-45mm thick worktops & panels.
• Rated Votage: 110 - 250 V ac, 50/60 hz
• Rated Current: 10 - 16A

Flush Fitting and Stylish Design, compliments and working and home environment. Sockets and Network points will always be in Black but Zamak casing comes in a range of finishes.

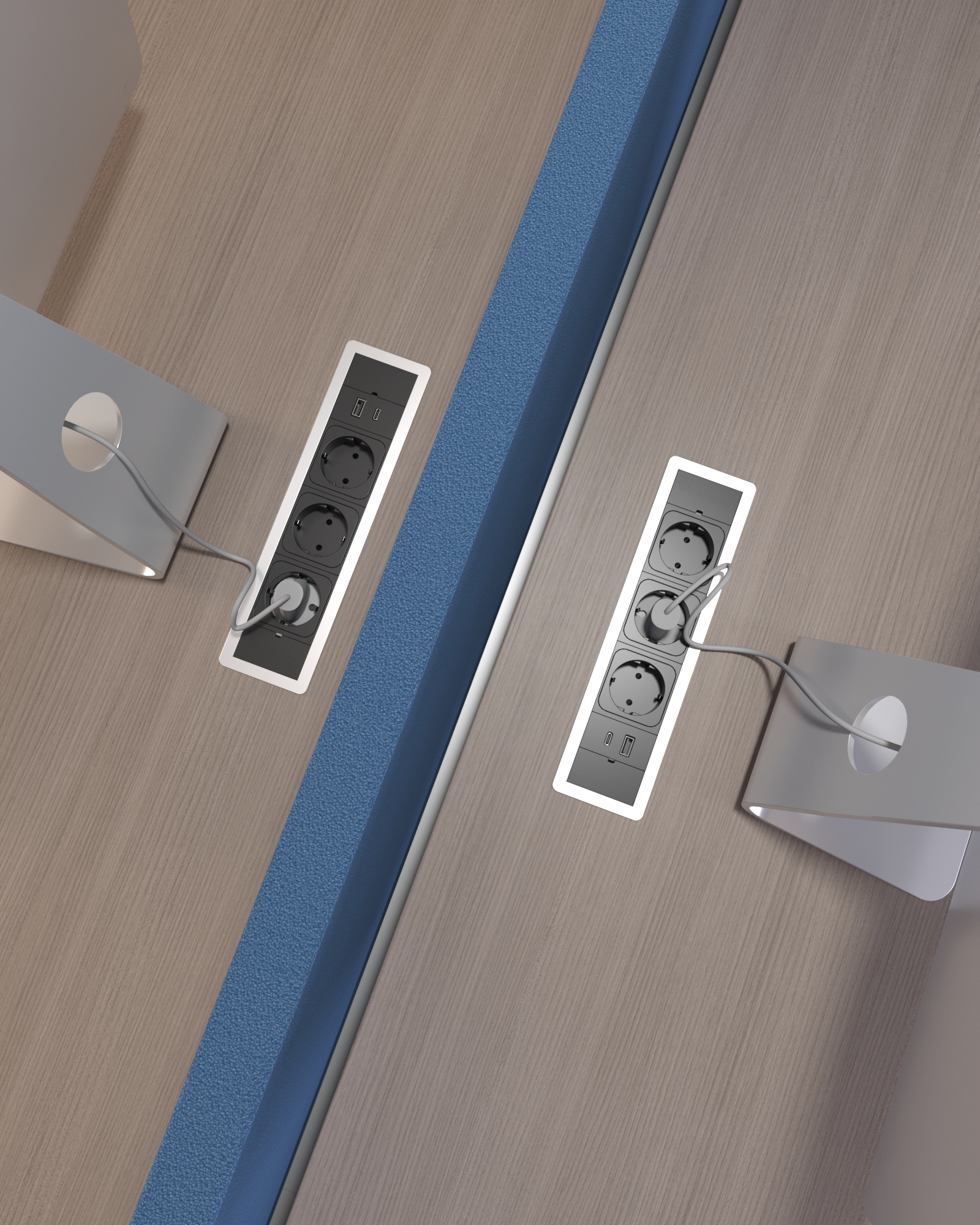

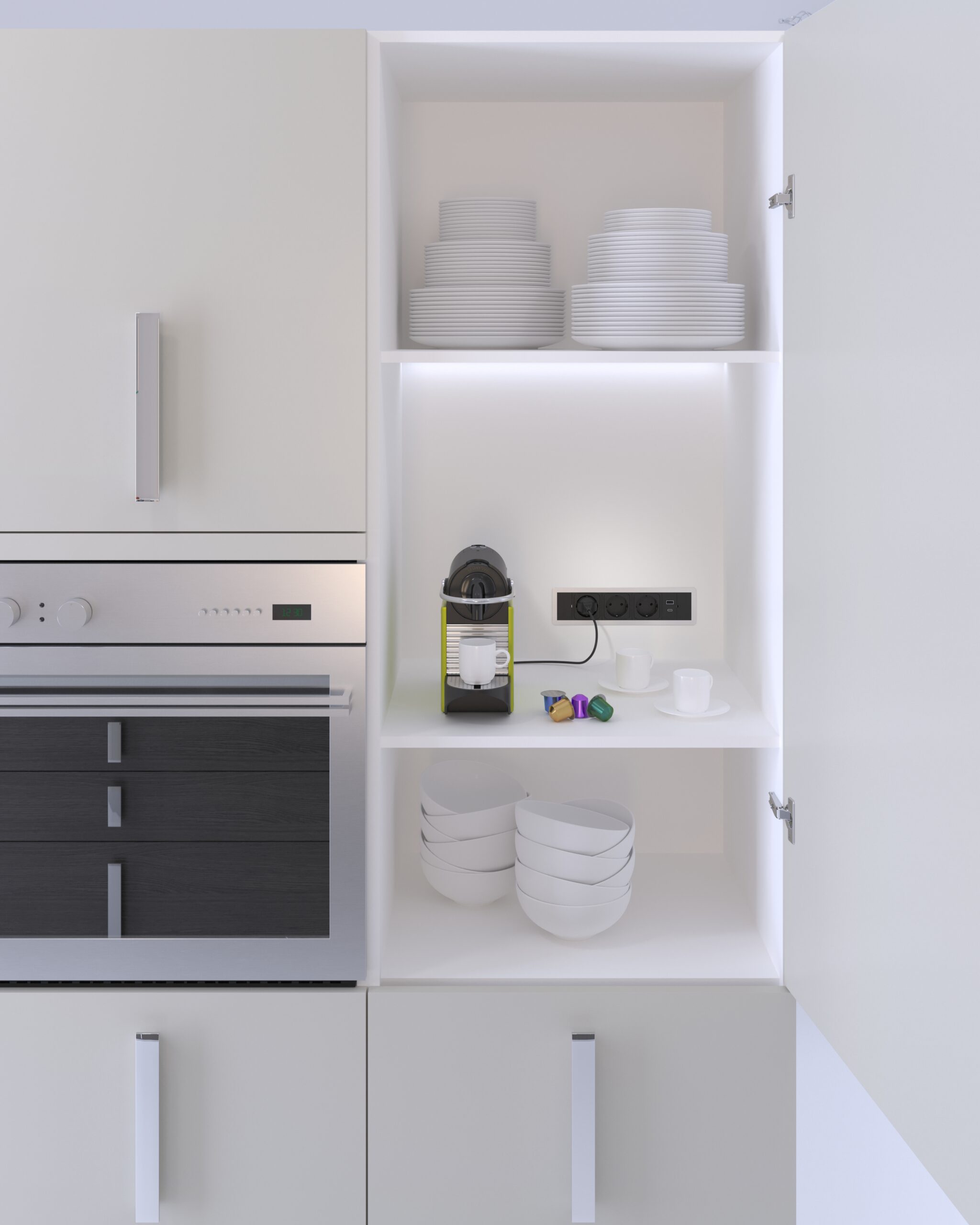

** The images showing European sockets are primarily for showing the application in use. We will only supply with UK sockets as standard **
