Snap Fit Panel Connector Clip | Single Groove System

These snap fit panel connector clips provide a fast and concealed method of joining panels using a single routed groove. Each clip is screw-fixed into one panel, allowing the opposing routed panel to simply snap into place for quick and secure assembly.

Ideal for furniture manufacturing, interior fit-outs, decorative panels, and removable installations where speed and ease of assembly are important.

Key Features:

• Concealed snap fit panel connection system
• Only one routed groove required
• Screw-fixed installation into one panel

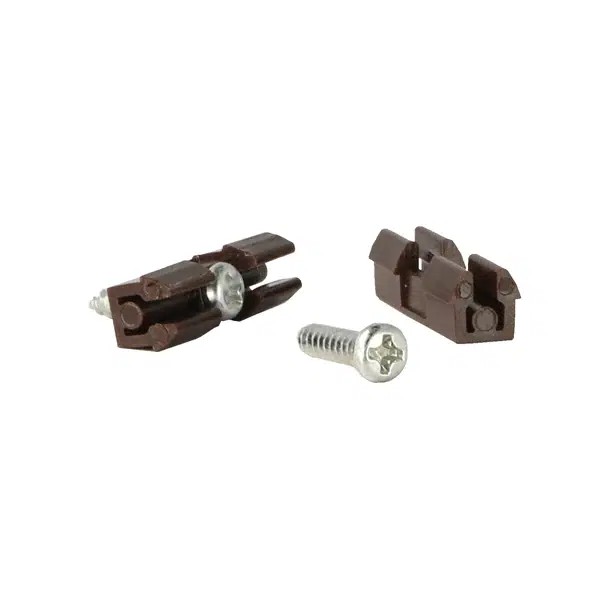

• Supplied complete with fixing screw
• Fast snap together assembly
• Clean concealed fixing appearance
• Suitable for repeated fitting and removal
• Reduces visible screws and mechanical fixings
• Ideal for furniture, wall panels, and interior joinery applications

How the System Works:

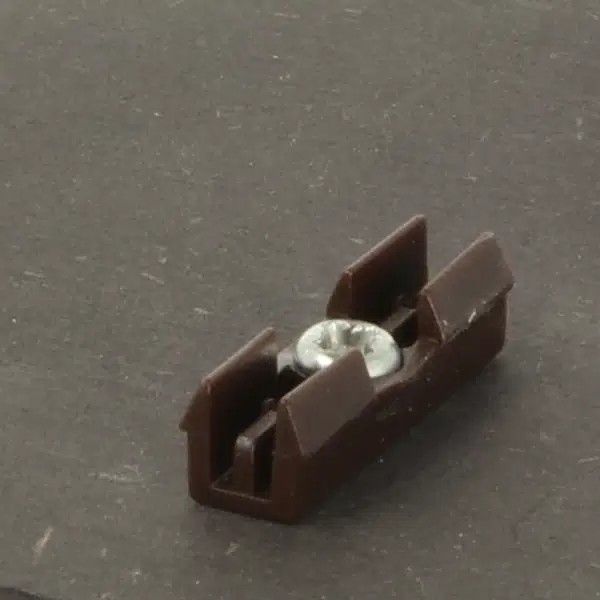

The connector clip is screw-fixed directly into one panel using the supplied fixing screw, removing the need for routed grooves on both sides of the joint.

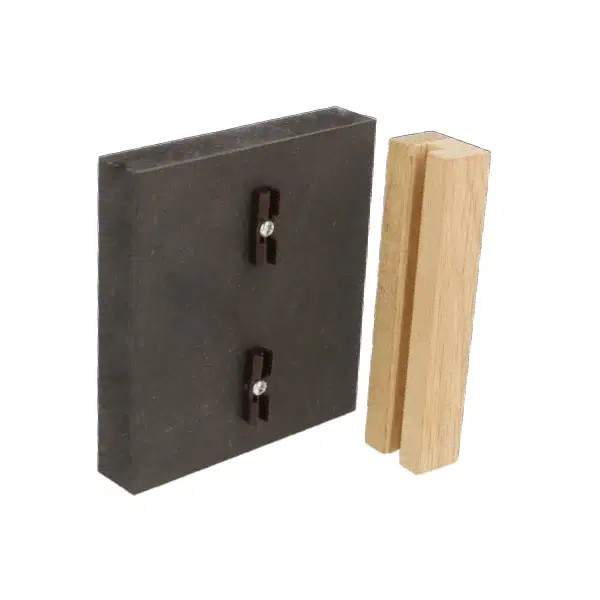

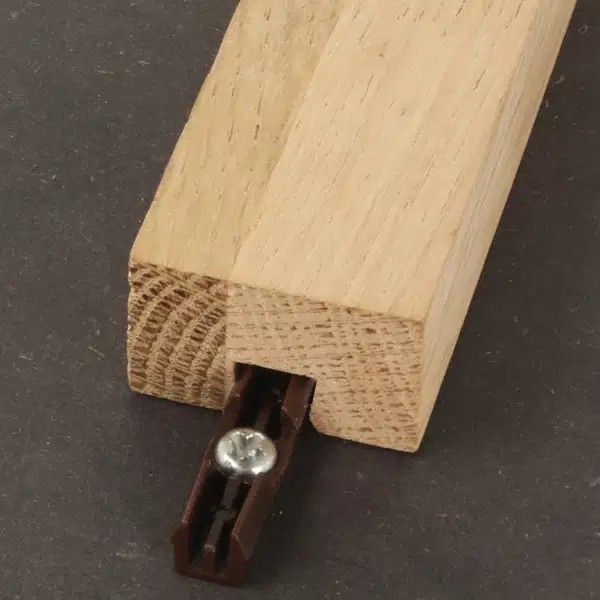

The opposing panel contains a routed channel which allows the panel to snap securely onto the connector for fast and efficient assembly. Multiple clips can be used along the joint depending on panel size and required holding strength.

Common Applications:

• These snap fit panel connectors are commonly used for:
• Furniture panels
• Decorative trims and mouldings
• Wall cladding systems
• Interior fit-out projects
• Exhibition and display panels
• Shopfitting installations
• Removable access panels

A specific router cutter profile is recommended for creating the correct groove for these panel connector clips. A dimensional drawing of the recommended router bit can be found in the Technical Specifications tab.
