Snap Fit Panel Connector Clip | Double Groove System

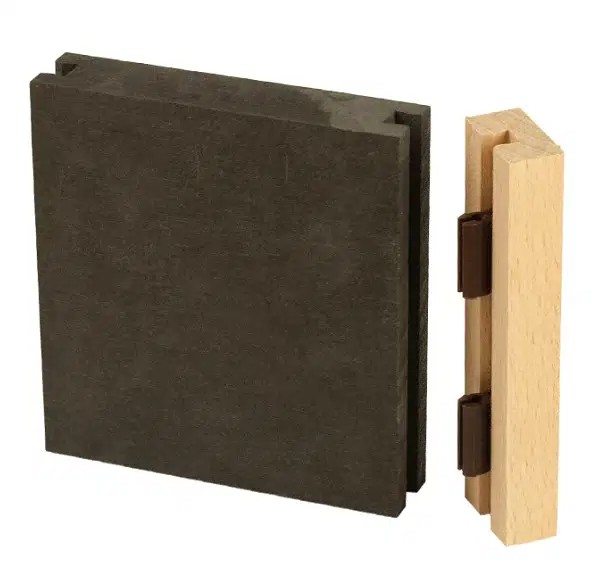

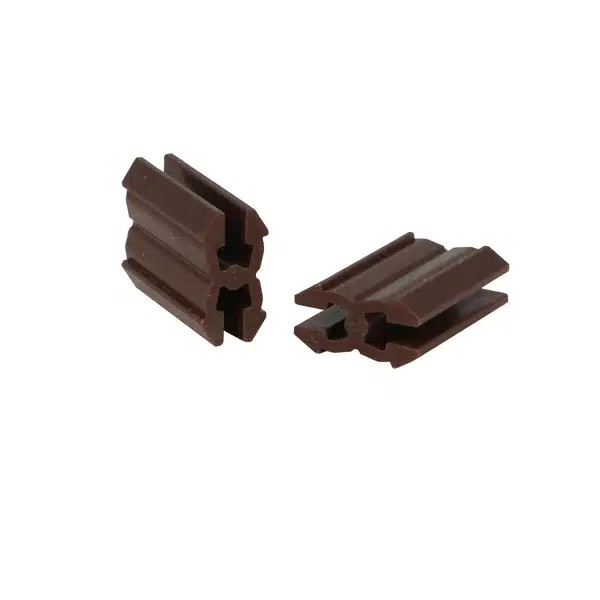

These snap fit panel connector clips are designed for fast, concealed panel assembly using routed grooves in each panel. Fit the clips into the routed channels, align the second panel, and simply snap the panels together for a clean and secure connection.
Ideal for furniture manufacturing, interior fit-outs, wall panels, display systems, and decorative moulding installations where a concealed fixing solution is required.

Key Features:

• Concealed snap fit panel connection system
• Designed for routed groove installation
• Fast assembly without visible fixings
• Clean and professional finished appearance
• Suitable for repeated fitting and removal
• Ideal for decorative mouldings and trim panels
• Reduces the need for visible screws and fixings
• Quick installation for production and assembly environments
• Suitable for furniture, interior joinery, and display applications

How the System Works:

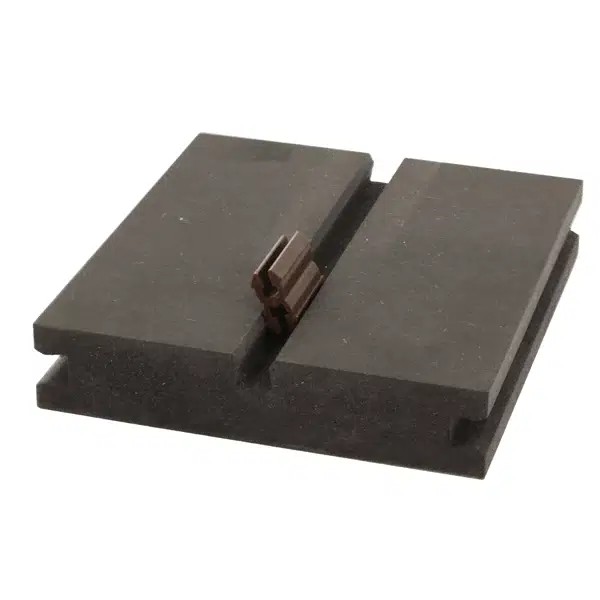

A routed groove is created in each joining panel, allowing the connector clips to sit neatly within the channels. Multiple clips can be positioned along the joint depending on the panel size and required holding strength.

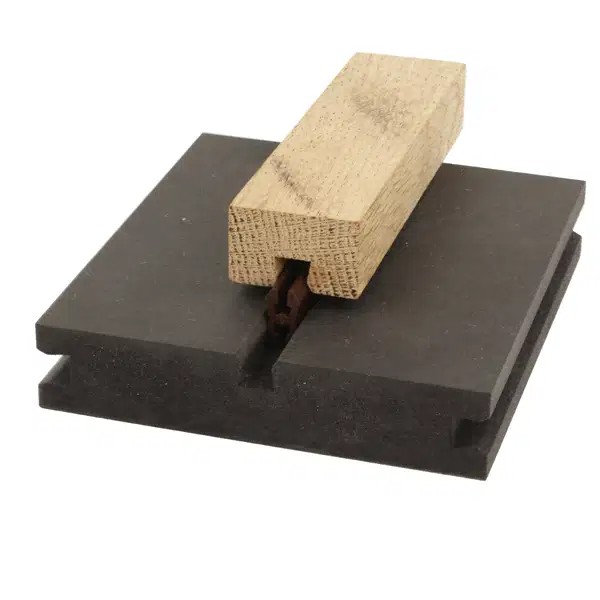

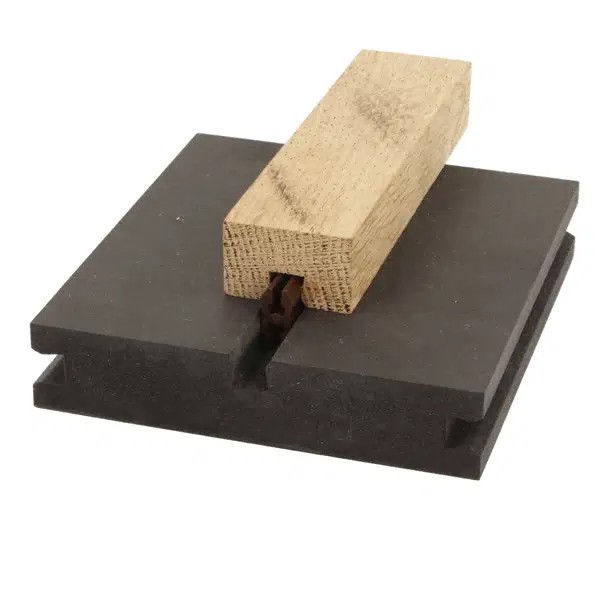

Once installed, the second panel simply snaps into place to create a secure concealed connection with fast installation and clean alignment.

Common Applications:

• Furniture panels
• Decorative mouldings and trims
• Wall cladding systems
• Interior fit-out projects
• Exhibition and display panels
• Shopfitting and retail installations
• Removable access panels

A specific router cutter profile is recommended for creating the correct groove for these panel connector clips. A dimensional drawing of the recommended router bit can be found in the Technical Specifications tab.
