40mm Dia Foot, with Boss for M10 Thread

These Sockets are designed to be used with our pre-cut All-Threads and are designed for customers who are going to need different lengths of adjustment for different situations.  Having an 8mm diameter socket, they're perfect for tapping out for M10 Studs.

Basically the Sockets are supplied with a plain boss and you just screw your All-Thread/Studding into the Socket which then forms/cuts/taps it's own thread.  You may prefer to tap them out if you're intending using them in volume but feel free to click the Blue 'Request Sample' button if you want to get hold of one to try first.

As well as the benefits of being able to control your own level of adjustment, by using whatever length of stud you need - customers have used this assembly in the past, when they need to weld or fasten the end of the thread once it's passed through another object. The Base of the Socket is Round in Profile and comes supplied with fixing holes.

Originally these feet were manufactured for Baths and Shower Trays but there's a huge variety of applications they can be applied to, mainly thanks to the unlimited range of thread forms available.

If you can't see the size of All-Thread you're after in our listings then let us know as we can produce specials to order, or you might want to consider our Utility Adjuster range which are already pre-assembled.

We show standard colours & finishes where possible but these are constantly changing so if you require a colour not listed in the drop-down, speak to us as we may well have added it since.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: Is there a minimum order quantity for this item?

A: Through the office, these parts are supplied in trade pack quantities of 1,000 pieces - or you can buy them in smaller packs or even loose via our website if you prefer. BPF WebSales

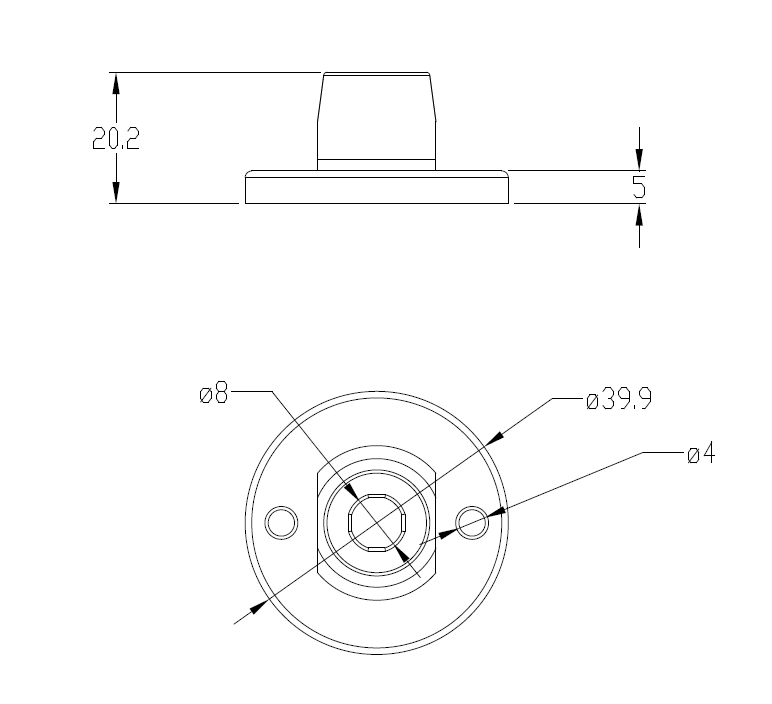

• Technical Drawing
